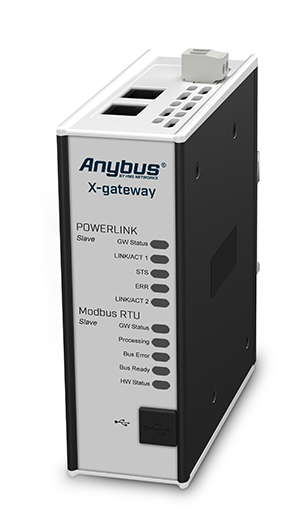

AB7532-Anybus X-gateway - Modbus RTU Slave - POWERLINK Device

Giá bán: Liên hệ

Mã sản phẩm: AB7532

Thương hiệu: Anybus - HMS Industrial Networks

Tình trạng: Còn hàng

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between Modbus RTU and POWERLINK networks. FAST COPYING OF I/O DATA The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations....
Tư vấnhotline0965746247

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between Modbus RTU and POWERLINK networks.

FAST COPYING OF I/O DATA

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Slave/Device on both networks. The data transmission is completely transparent with a maximum data capacity of 254 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

  • Fast copying of cyclic I/O data between the two networks (10-15 ms)
  • Supports up to a maximum of 512 bytes of PDO + SDO Input and Output data in each direction
  • Supports up to a maximum of 254 bytes of PDO Input and Output data in each direction
  • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
  • Optional control status information added to I/O data for diagnostic purposes
  • Robust stand-alone housing for use in harsh industrial environments
  • Global free technical support and consultancy

Modbus RTU network address settings made via on-board configuration switches

  • Complete Modbus RTU slave functionality
  • Max 512 bytes of Input and 512 bytes of Output data
  • Modbus diagnostics support
  • Configuration via on-board DIP switches
  • Modbus RTU baudrate 12-57,6 kbit/s
  • 1x D-sub 9-pin female network connector

POWERLINK Device/Slave settings can be made either via the built-in web interface, or by importing the provided .XDD file into engineering tool of the controlling PLC.

  • Max 254 bytes of Input and 254 bytes of Output data
  • Baud rate 100 Mbit/s Isochronous
  • Supports ring redundancy
  • POWERLINK uplink configuration via .XDD file
  • Dual port hub
  • Multiplexing
  • Poll Response Chaining
  • Supports segmented SDO transfer
  • Dual RJ-45 ports available simultaneously
Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
Weight 400g or 0,880 lbs
Operating temperature -25 to +65 °C  or  -13 to +149 °F
Storage temperature -40 to +85 °C  or  -40 to +185 °F
Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
Current consumption     max. 400mA (Typical 200mA)
Enclosure material  Aluminium and plastic
Installation position Vertical / Flat*
Galvanic isolation YES, on both BUS/Ethernet side
Mechanical rating IP20, NEMA rating 1
Mounting DIN-rail (EN 50022 standard)
I/O configuration via USB port with Anybus Configuration Manager software
Certifications CE, CULUSRoHS
