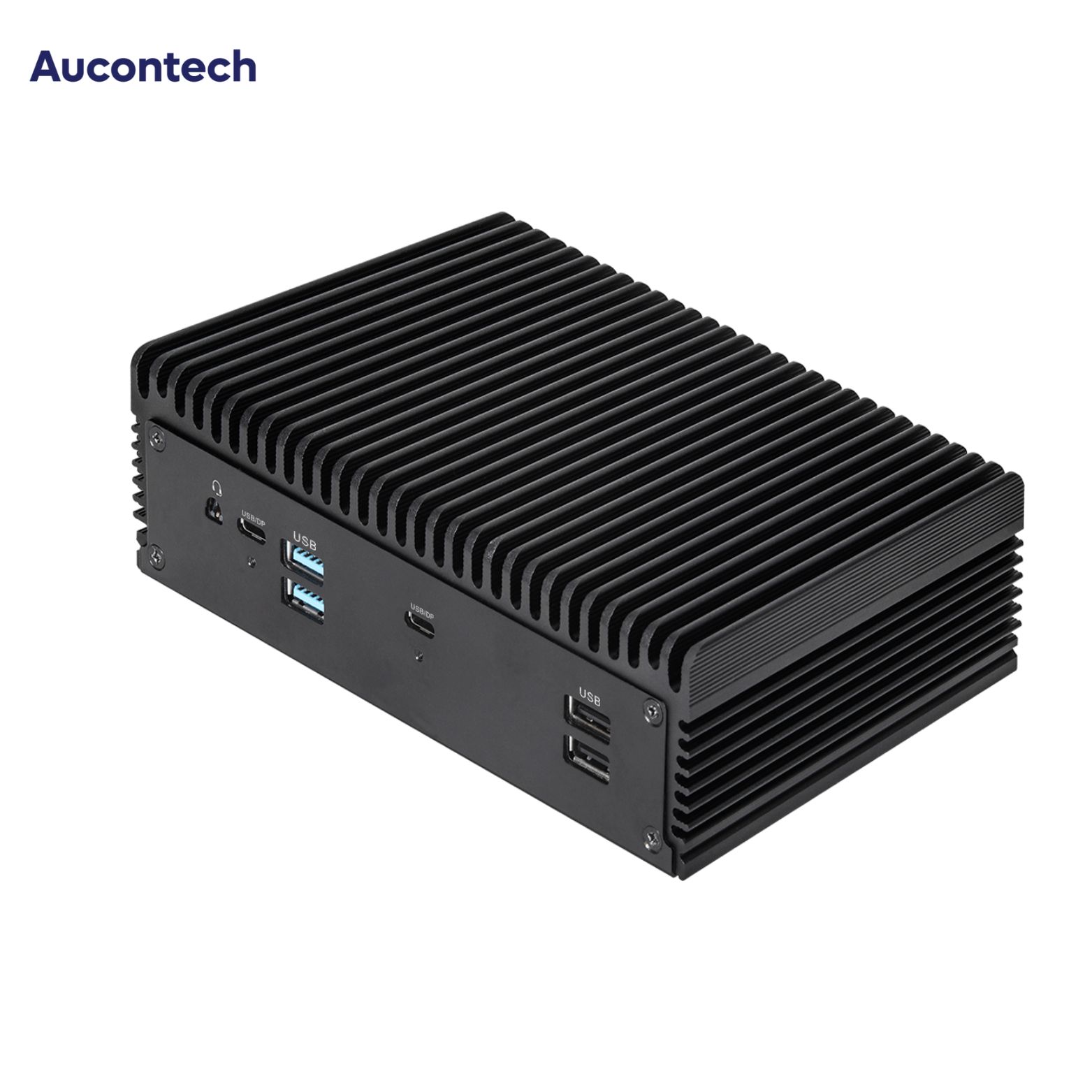

iBOX-1265UE - Fanless Embedded BOX PC

Giá bán: Liên hệ

Mã sản phẩm: iBOX-1265UE

Thương hiệu: ASRock Industrial

Tình trạng: Còn hàng

Intel^® 12th Gen (Alder Lake-P) Core™ Processors i7-1265UE
2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
1 x USB4/Thunderbolt™4, 5 x USB3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M,1 x M.2 Key E, 1 x COM, 1 x SATA3
2 x Intel 2.5 Gigabit LAN
Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type-C)
TPM 2.0 onboard IC
Supports Intel^® vPro
19V/90W Power Adapter
171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97"), Fanless Embedded BOX PC

Tư vấn hotline

Trong 1 - 2 Giờ làm việc không bao gồm chủ nhật và ngày lễ

Đổi trả sản phẩm trong vòng 7 ngày nếu có lỗi từ nhà sản xuất

Hotline tư vấn0379 447 488

TÌM HIỂU THÊM

Processor System

CPU	Intel® 12th Gen (Alder Lake-P) Core™ Processors - iBOX-1265UE (i7-1265UE, 2P+8E) - iBOX-1245UE (i5-1245UE, 2P+8E) - iBOX-1215UE (i3-1215UE, 2P+4E)
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Memory

Graphics

Controller	Intel® Iris® Xe Graphics (i7/i5) Intel® UHD Graphics (i3/Celeron)
HDMI	HDMI 2.0b – Max resolution up to 4096×2160 @60Hz
DisplayPort	DisplayPort 1.4a, DP++ – Max resolution up to 4096×2160 @60Hz
MultiDisplay	Quad-Display (Includes 2 outputs from Type-C)

Expansion Slot

M.2

1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface

Realtek ALC233/ALC256, High Definition Audio.

Ethernet

Controller/ Speed	iBOX-1265UE/ iBOX-1245UE: LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps iBOX-1215UE: LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket)
SATA	1 x SATA3.0 (6.0 Gb/s)

Front I/O

USB	2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (supports DP1.4a display output) 1 x USB 3.2 Gen2 (Type-C, supports DP1.4a display output) 2 x USB 2.0 *For Thunderbolt support, please refer to support list.
Audio	1 (headphone & microphone jack

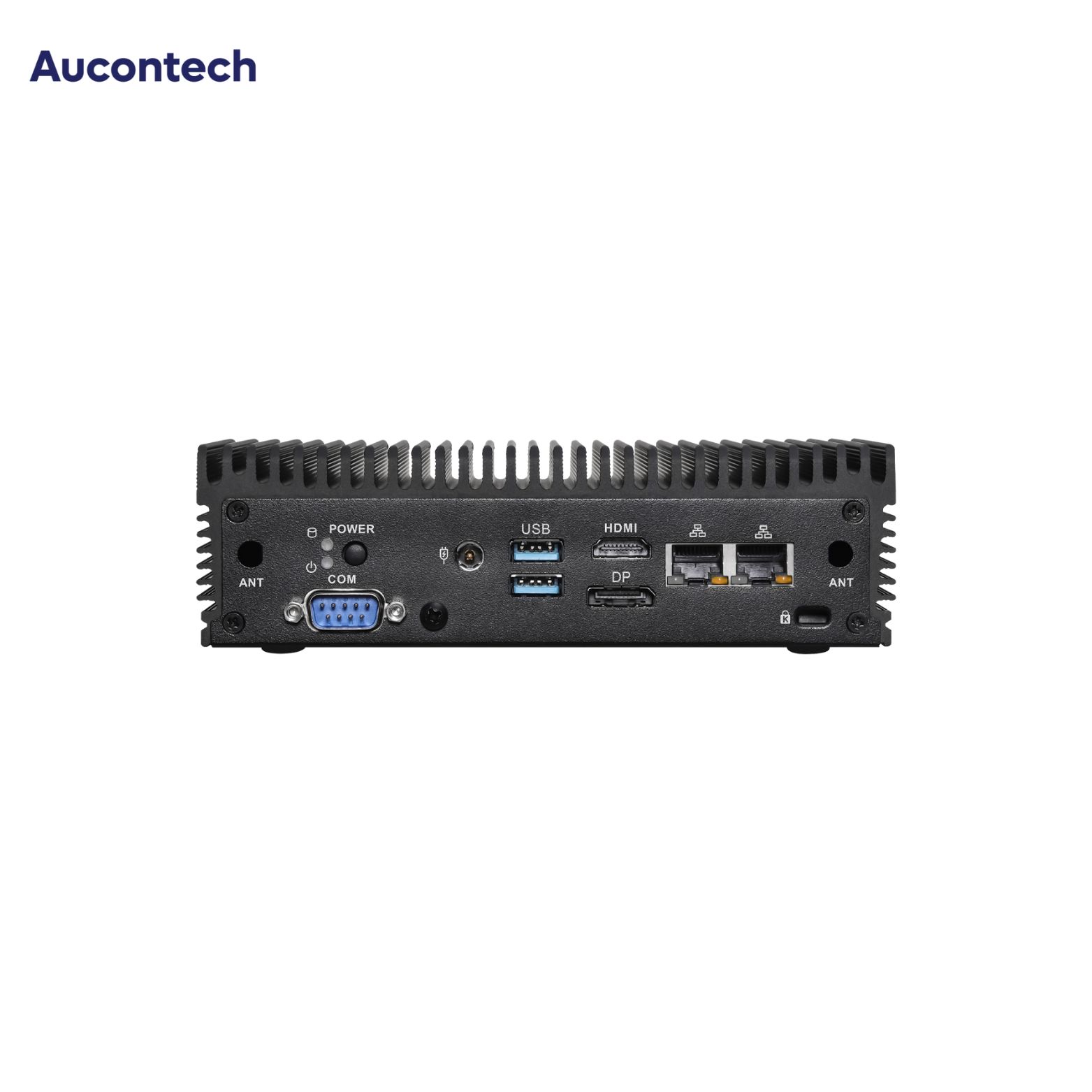

Rear I/O

M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket)
SATA	1 x SATA3.0 (6.0 Gb/s)
M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD *M.2 Key M 2280(Supported by bracket)
SATA	1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V~19V DC-In Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 50ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals) *Optional: Heatsink pack for PCIe Gen4x4 M.2 2280 NVMe SSD (P/N: 13G07P014000AI)
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Mechanical

Others

OS Support	Windows 10/11
TPM	TPM 2.0 onboard IC
Certifications	CE, FCC
Packing List	1 x 19V/90W Power Adapter 1 x Wall mount ki
