Integrate your serial RS-232/422/485 based industrial devices and equipment to a Modbus RTU control system without the need for any changes to the device. Just connect, configure and you're done!
The Anybus Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to Modbus RTU. The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data.

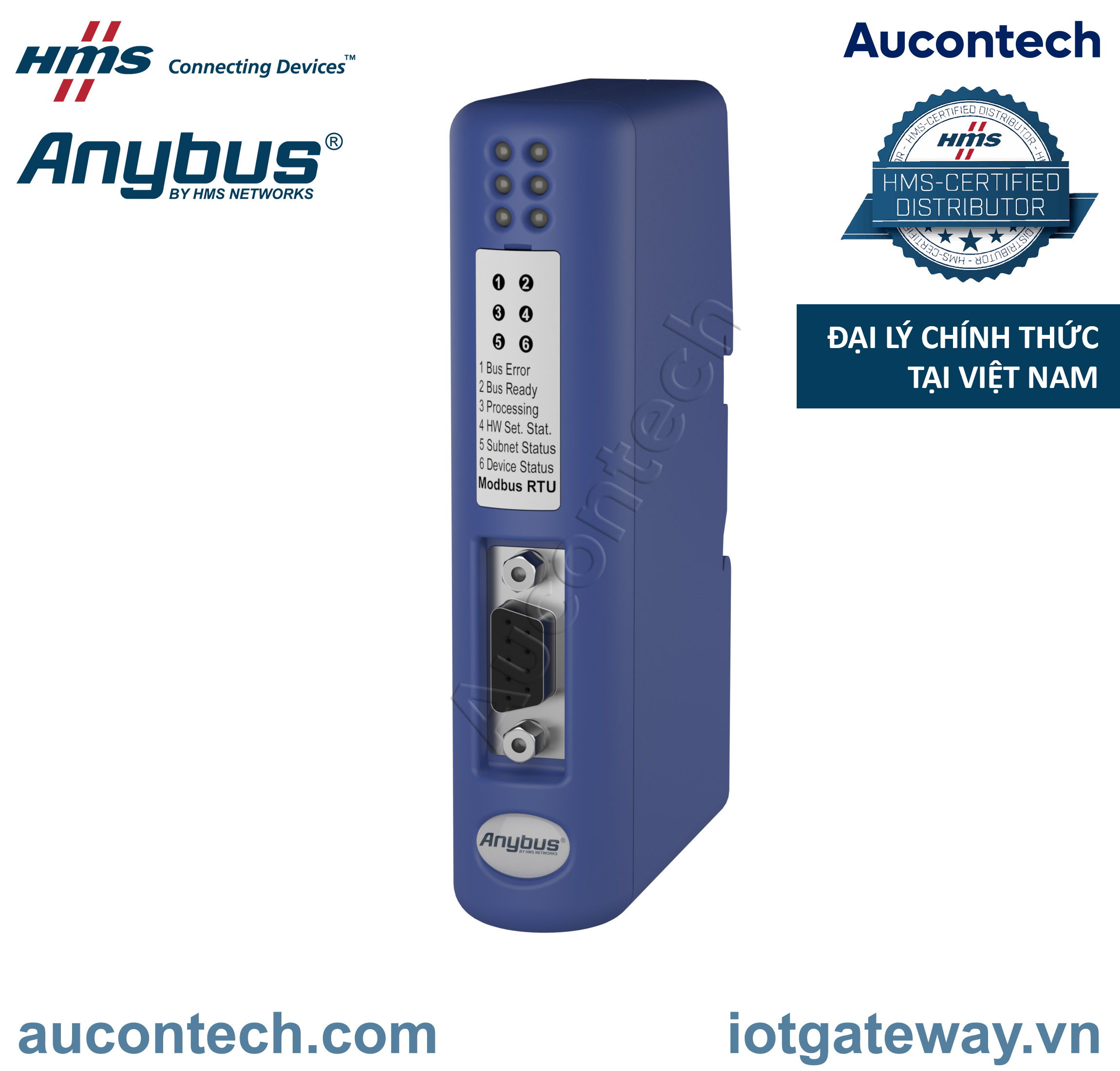

The Communicator is slim stand-alone gateway designed for IP20 and DIN-rail mounting, requiring a 24-volt power supply. The Communicator is conformance tested to current Modbus RTU specifications guaranteeing network compatibility.
The Communicator is capable of converting almost any type of serial protocol such as Modbus RTU, ASCII, DF1 or any other type of proprietary Query/Response or Produce/Consume protocol.
Typical serial applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.
No high level programming skills are needed to set up the Anybus® Communicator as configuration is accomplished using the included, easy to use Windows™ based ACM (Anybus Configuration Manager).
|Protocol||Configurable RS-232/422/485 based produce/consume, query/response ASCII|
|Max stations||31 (with RS485/422)|
|Baud rate||1,2-57,6 kbit/s|
|Modbus Commands||0x01 Read Coils, 0x02 Read Discrete Inputs, 0x03 Read Holding Registers, 0x04 Read Input Registers, 0x05 Write Single Coil, 0x06 Write Single Register, 0x07 Read Exception Status, 0x08 Diagnostics, 0x0B Get Comm Event Ctr, 0x0C Get Comm Event Log, 0x0F Write Multiple Coils, 0x10 Write Multiple Registers, 0x11 Report Slave ID, 0x14 Read File Record, 0x15 Write File Record, 0x16 Mask Write Register, 0x17 Read/Write Multiple Registers, 0x18 Read FIFO Queue Customized commands can be created (in the Anybus Configuration Manager)|
|DF1 Services||0x01 Integrity Check, 0x02 Read Diagnostics, 0x03 Read Data, 0x04 Write Data Customized services can be created (in the Anybus Configuration Manager) Technical Details Standard|
|Dimensions (L x W x H) with serial and power connector||120 x 75 x 27 mm
4,72 x 2,95 x 1,06''
|Weight||150 grams, 0.33 lb|
|Protection class||IP20 Nema rating 1|
|Enclousure material||l PC ABS, UL 94|
|Mounting||DIN rail (35 * 7,5/15)||EN50022|
|UL||File number: E203225||UL 508 Ind. Cont. Eq.|
|Hazardous Locations||CLASS 1, DIVISION 2, GROUPS A, B, C AND D, T4||ISA 12.12.01|
|Power||24 VDC +/- 10 %|
|Current consumption||Max 300 mA, Typical 100 mA|
|Reverse voltage protection||Yes|
|Short circuit protection||Yes|
|Galvanic isolation on subnetwork||Yes||EN 60950-1|
|MTTF||>550 000 h||Telcordia Issue 2, Method 1 Case 3 at 30 o C|
|Operating temp||0 to 55 o C, 32 to 131 o F|
|Storage temp||-40 to 85 o C, -40 to 185 o F|
|Relative Humidity||0-95% non condensing|
|Installation altitude||up to 2 000 m|
|Electrostatic discharge||+/- 4 kV||EN 61000-4-2|
|Electro magnetic RF fields||10 V/m 80 MHz - 1 GHz
3 V/m 1,4 GHz - 2,0 GHz
1 V/m 2,0 GHz - 2,7 GHz
|Fast Transients||+/- 1 kV||EN 61000-4-4|
|Surge protection||+/- 1 kV||EN 61000-4-5|
|RF conducted interference||10 V/rms||EN 61000-4-6|
|Emission (at 10 m)||40 dB 30 MHz - 230 MHz
47 dB 30 MHz - 1 GHz
ORDER CODE: AB7010-B
- Quick start documentation
- Configuration cable (RS-232) is supplied with every single-piece Communicator shipment
- D-sub connector with screw terminals for serial sub-network is supplied with every single-piece Communicator shipment
- Configuration software available for download
- (Power supply not included)
- USB-RS-232 configuration adapter (Order Code: 019570)
GUARANTEE: 1 years
