General

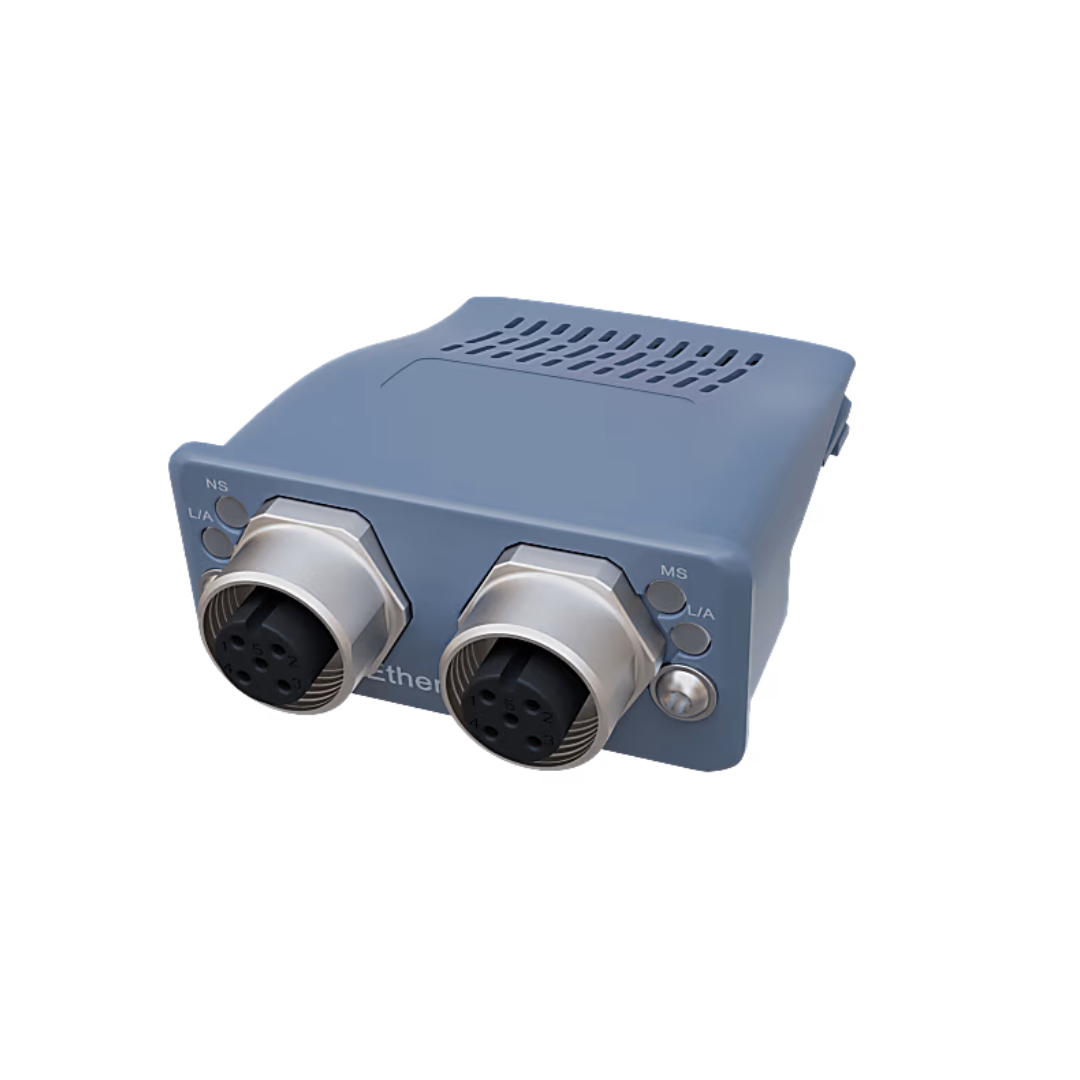

• Content of Delivery: CompactCom M40 M12 module

• Net Weight (g): 44 g

• Packed Width (mm): 0 mm

• Packed Height (mm): 0 mm

• Packed Depth (mm): 0 mm

• Packed Weight (g): 44 g

• Mounting: PCB mounting via a customized CompactFlash connector

• Current Consumption Class (CompactCom series): B

• Input Voltage (V): 3.3 VDC, +/- 0.15 VDC

• Isolation: Galvanic Isolation

• Operating Temperature °C Min: -40 °C

• Operating Temperature °C Max: 70 °C

• Storage Temperature °C Min: -40 °C

• Storage Temperature °C Max: 85 °C

• Warranty (years): 1 year

• Application Interface:
  8/16-bit parallel (30 ns access)
  High speed SPI, baudrate configurable up to 20 MHz I/O (shift register interface, cyclical update time 82 µs)
  UART (for backwards compatibility with 30-series, max 625kbps)

Identification & Status

• Item Number: AB6644-C

• Export Control Classification Number (ECCN): EAR99

• Dual Usage: No

• Country of Origin: Sweden

• Brand: Anybus

• HS Code: 8517620000

Physical Features

• LED Indicators: Integrated on front. Indicates Module Status, Network Status and Link/Activity.

• Form Factor: Module

• Connectors / Input / Output:M12

• Contains Battery: No
