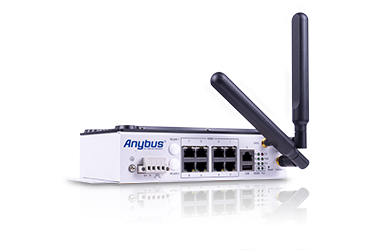

Anybus Wireless Router LTE - Global

The Anybus Wireless Routers are ideal to provide your industry with high-speed LTE connectivity. Advanced routing functionality allows you to segment your network and protect mission critical data. An extensive range of redundancy technologies ensures uninterrupted operations.

FEATURES & CAPABILITES

HIGH THROUGHPUT WIRELESS PERFORMANCE

• LTE Cat.4 modem 2x2 MIMO, 150 Mbit/s downlink and 50 Mbit/s uplink
• 4G/3G/2G full cellular network compatibility

ETHERNET ROUTING SWITCH

• 8 Fast Ethernet LAN ports
• 1 Gigabit Ethernet WAN port
• IEEE 802.1p QoS/802.1Q VLAN priority tagging
• RIPv2
• Traffic control

ENHANCED SECURITY AND REDUNDANCY FOR CRITICAL APPLICATIONS

• Firewall for traffic classification, port forwarding
• VRRP (Virtual Routing Redundancy Protocol).
• GRE (Generic Routing Encapsulation RFC2784)
• Supports NAT, DMZ for LAN protection
• Supports IPsec, OpenVPN and L2TP for secure connection

  RUGGED DESIGN

• Effective heat dissipation design for operating in -40 to 75°C environments

• Railway EMC: EN50121-4 compliance
• IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
• Vehicle: E-mark compliance
• Radio: RED for CE Marking
• Emission: FCC part 15 B Class A

  MANAGEMENT FEATURES

• Various configuration paths, including WebGUI, CLI and SNMP
• Diagnostic tools, including LED, Ping/Traceroute, SNMP Trap, E-mail alert and Syslog
• External backup/restore, Firmware update

TECHNICAL SPECIFICATIONS

CERTIFICATIONS

CERTIFICATIONS & APPROVALS
