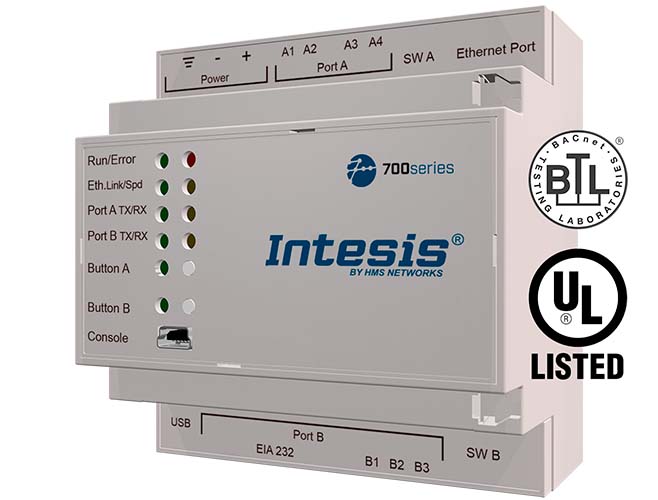

BACnet IP & MS/TP Client to ASCII IP & Serial Server Application - IN7004853K00000

Giá bán: Liên hệ

Mã sản phẩm: IN7004853K00000

Thương hiệu: Intesis - HMS Industrial Networks

Tình trạng: Còn hàng

ORDER CODES:

IN7004851000000  Intesis Protocol Translator with Serial and IP support - 100 points
IN7004852500000  Intesis Protocol Translator with Serial and IP support - 250 points
IN7004856000000  Intesis Protocol Translator with Serial and IP support - 600 points
IN7004851K20000  Intesis Protocol Translator with Serial and IP support - 1200 points
IN7004853K00000  Intesis Protocol Translator with Serial and IP support - 3000 points
Tư vấnhotline0965746247

BACnet IP & MS/TP Client to ASCII IP & Serial Server Application

Integrate any BACnet MS/TP or BACnet IP server device, with an ASCII BMS or any ASCII IP or ASCII serial controller. The aim of this integration is to make accessible BACnet objects data and resources from an ASCII based control system or device, as if it was a part of the own ASCII system and vice-versa.

FEATURES

  • UL Certified
  • BTL Certified
  • Support for both ASCII IP and ASCII Serial (232/485)
  • Automatically send a write request to the ASCII bus when its value changes
  • Use personalized ASCII strings
  • Both BACnet IP and MS/TP supported
  • Possibility to scan for BACnet devices with BACnet Explorer
  • Easy integration & updates with Intesis MAPS

Use Case



Description

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.

Thanks to its support for custom ASCII strings, a seamless integration with any ASCII BMS or controller it is guaranteed.

The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.

Technical Documentation

Installation Manual Learn how to install the device in your project Download
Application Wiring Diagram Review your specific application wiring diagram Download
User Manual General information about this product Download
BACnet Client PIC statement BACnet Client Protocol Implementation Conformance Statement 700 series Download
Late Configuration Video Learn how to match your hardware with your application Watch
EC Declaration of Conformity Check the product certification Download
UKCA Certification Check the product UKCA Certification Download
UKPSTI Certification Check the product UKPSTI Certification Download
KC Certification Check the product KC Certification Download
Recommendations to avoid polarity issues How to avoid polarity issues in RS485 Networks Learn more
CAD Drawings 2D and 3D Check the CAD Drawings 2D and 3D Download





Programming Tool

Intesis MAPS Get access to download the configuration software tool Download
eLearning course Learn the secrets of Intesis MAPS Enroll now





Commercial Documentation

Intesis Brochure Know more about the Intesis current available products Download



Use Case

Integration of BACnet Devices into an ASCII controlled installation.

ORDER CODES:

IN7004851000000  Intesis Protocol Translator with Serial and IP support - 100 points
IN7004852500000  Intesis Protocol Translator with Serial and IP support - 250 points
IN7004856000000  Intesis Protocol Translator with Serial and IP support - 600 points
IN7004851K20000  Intesis Protocol Translator with Serial and IP support - 1200 points
IN7004853K00000  Intesis Protocol Translator with Serial and IP support - 3000 points



For the older version, please click here to find the documentation

INCLUDED COMPONENTS:

  • Intesis Gateway.
  • Installation Manual.
  • USB Configuration cable.
  • (Power supply not included).



Warranty: 36 months.
