Features

• Create your own:
  • Sequences: increase and decrease power consumption, grid failure and grid power return
  • Charts: data analytics to meet your needs

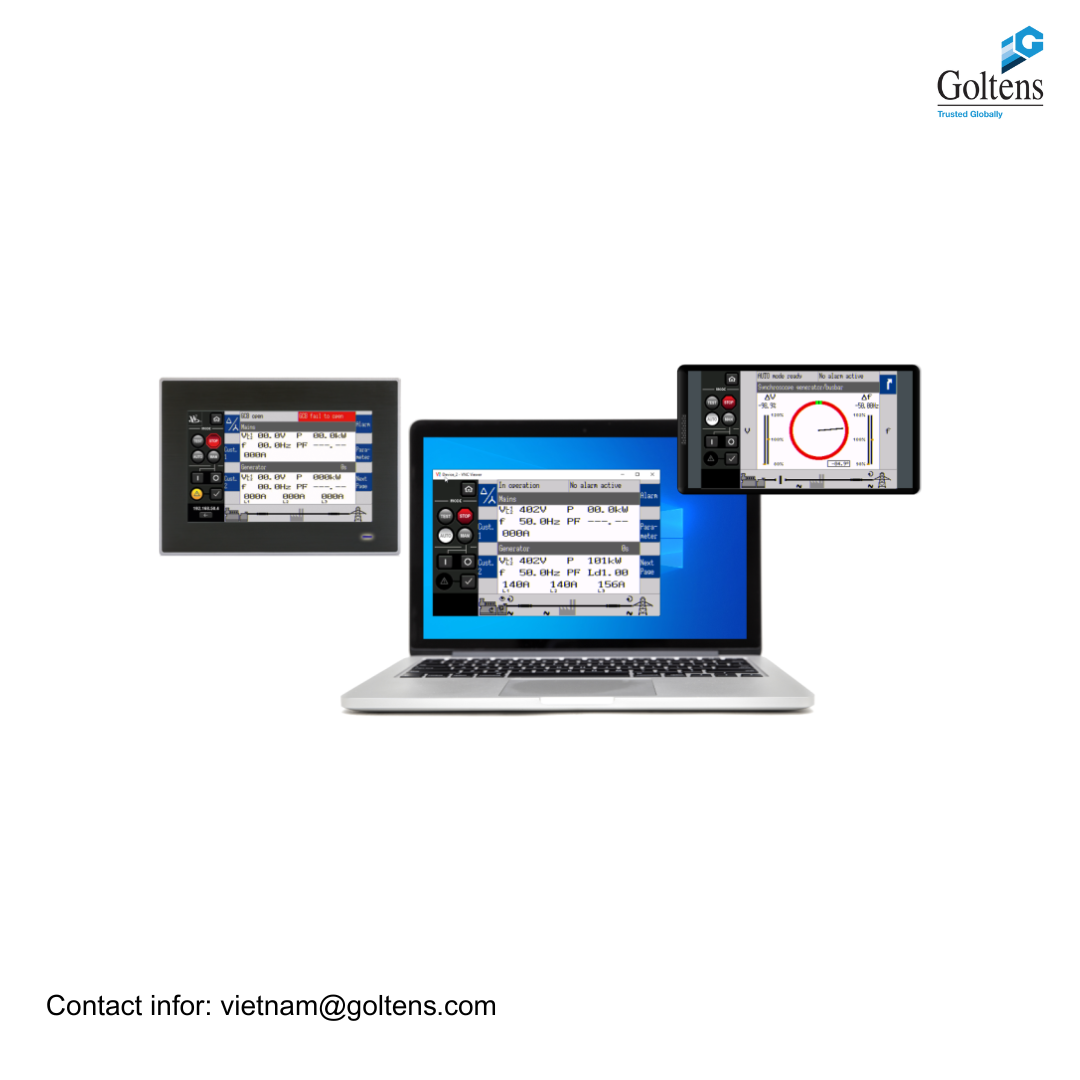

• VNC to visualize controls: interconnect to gensets in the simulation with a VNC client on various devices within your network
  • Remote panel RP-3000XT
  • Any laptop with a VNC viewer
  • Any smartphone with a VNC viewer app
• Applying loads based on your own requirements with your own load profiles
• There is a simulation of gas/diesel gensets with standard genset models
• Simulation is similar to building real gensets for a factory acceptance test
• Simulate real life operational behavior
• Only minor modifications between simulation and reality
• Utility forming/following
• Import/export control
• Synchronization and dead bus bar closure
• Photovoltaic with different loading scenarios
• Sequencing of gensets under different loading scenarios
• Verify parameterized logic

Product Variants

• 10-059-783 easYsim – 3 MONTHS ACCESS (NO SUBSCRIPTION) used for one Email address
• Custom scenarios available upon request
  • Your single line diagram (* requires a minimum level of software engineering)
  • Controllers like LS-6XT, GC-3400XT-P1, DSLC-2XT, MSLC-2XT, easYi, easYgen-3000XT Series
