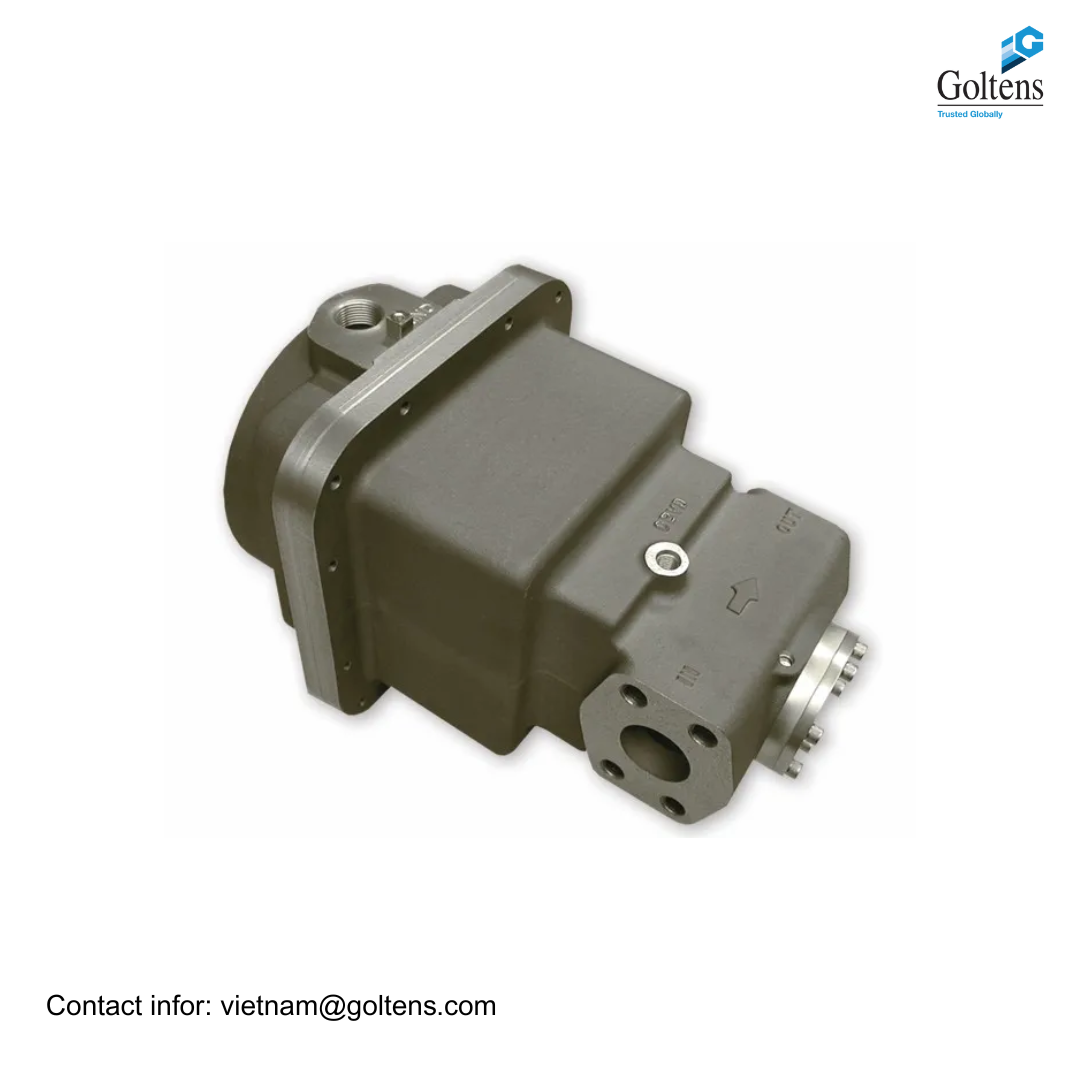

GS6 Gas Fuel Metering Valve

Giá bán: Liên hệ

Mã sản phẩm: 03256

Thương hiệu: Woodward

Tình trạng: Còn hàng

The GS6 gas fuel metering valve is an electronically actuated gas fuel valve with an on-board, electronic positioner controller, used in aeroderivative gas turbines.

Product Specification: 03256

Technical Manual: 26513

Liên hệ tư vấnhotline0965746247

Features and Benefits

  • Valve assembly features an on-board electronic controller module for ease of system packaging and installation
  • Self-cleaning, shear-type metering action keeps the metering port free from performance-limiting deposits of gas condensates, contaminants, and system debris
  • Utilizes a single moving part with the fuel-metering element, actuator rotor, and position feedback resolver mounted on a single solid-piece shaft

Product Variants

  • Conduit Entry Driver
  • 1.5 inch SAE Code 61 Flange
  • Single or Dual Resolver
  • 24 VDC Input Voltage

Product Specifications

Maximum Gas Supply Pressure

  • 750 psig (5170 kPa)

Fuel Temperature

  • -40 to +200 degrees Fahrenheit (-40 to +93 degrees Celsius) – single resolver
  • -20 to +200 degrees Fahrenheit (-29 to +93 degrees Celsius) – dual resolver

Ambient Temperature

  • -40 to +200 degrees Fahrenheit (-40 to +93 degrees Celsius) – single resolver
  • -20 to +200 degrees Fahrenheit (-29 to +93 degrees Celsius) – dual resolver
