INKNXDAL0640200 - DALI to KNX TP Gateway - 1 channel
Aucontech Co Ltd
10 out of
10

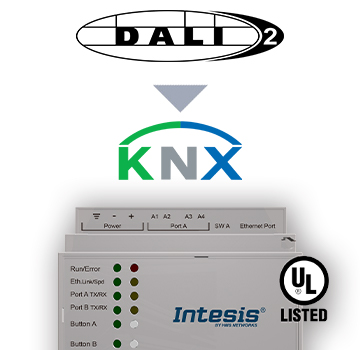

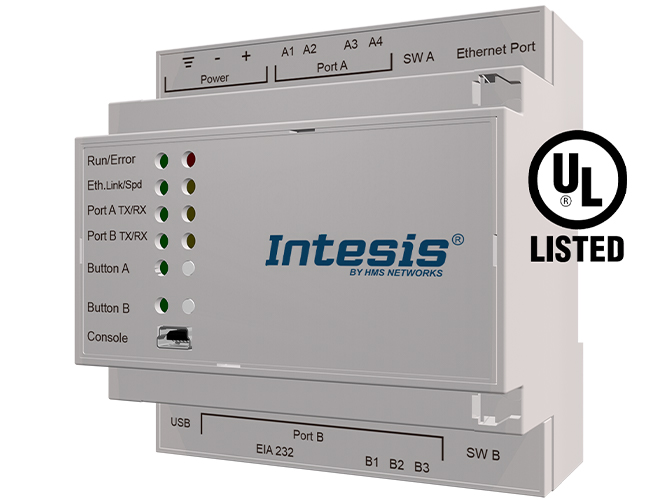

DALI to KNX TP Gateway
Integrate any DALI/DALI-2 driver and DALI-2 light sensor, or occupancy sensor with any KNX system. The aim of this integration is to make accessible DALI address and its data and resources accessible from a KNX system, as if it was part of the same KNX system.
FEATURES
- UL Certified
- DALI-2 certified
- Support for KNX TP
- KNX standard Datapoint Types (DPT) available
- Support for DALI & DALI-2 drivers and DALI-2 sensors
- Integrated DALI power supply
- Up to 64 drivers/ballasts + 16 DALI-2 sensors per channel (Guaranteed DALI supply: 235mA)
- Easy integration & DALI commissioning with Intesis MAPS
Use Case
Integration of DALI drivers and sensors into a KNX installation.
Description
This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.
Thanks to its support for the KNX standard datapoint types (DPTs), guarantees a seamless integration with any KNX device or system.
The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.
Technical Documentation
| User Manual | General information about this product | Download |
| Installation Manual | Learn how to install the device in your project | Download |
| Datasheet | Find all the specifications around this product | Download |
| DALI-2 Certification INKNXDAL0640200 | Check the product certification | Download |
| EC Declaration of Conformity | Check the product certification | Download |
| KC Certification | Check the product KC Certification | Download |
Programming Tools
| Intesis MAPS | Configuration software tool | Download |
| User Manual for KNX | General information about Intesis MAPS for KNX projects | Download |
Commercial Documentation
| Intesis Brochure | Know more about the Intesis current available products | Download |
