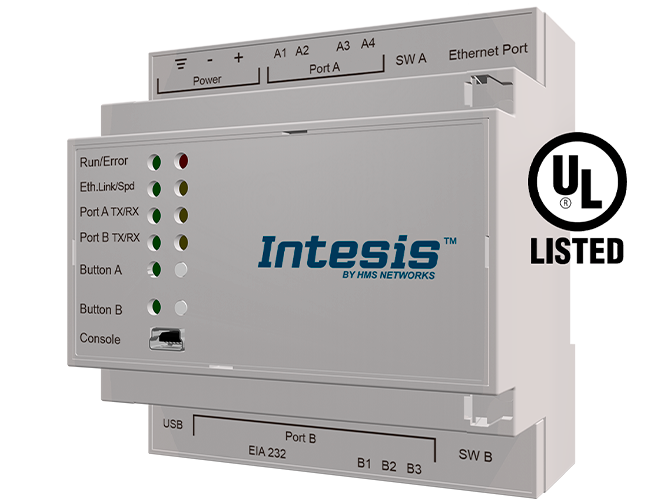

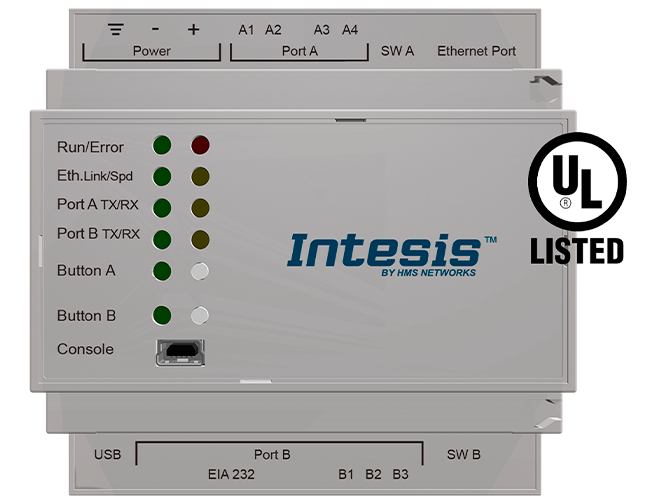

INMBSDAL1280200 - DALI to Modbus TCP Server Gateway - 2 channels

Replaced by: IN703DAL0640000

Integrate any DALI/DALI-2 driver and DALI-2 light sensor, or occupancy sensor with a Modbus BMS or any Modbus TCP or Modbus RTU controller. The aim of this integration is to make DALI devices and its data and resources accessible from a Modbus based control system or device, as if it was a part of the own Modbus system and vice-versa.

FEATURES

• UL Certified
• DALI-2 Certified
• Support for up to 5 simultaneous Modbus TCP Clients
• Both Modbus RTU & Modbus TCP
• Support for DALI & DALI-2 drivers & DALI-2 sensors
• Integrated DALI power supply
• Up to 2 DALI channels
• Up to 64 drivers/ballasts + 16 DALI-2 sensors per channel (Guaranteed DALI supply: 235mA)
• Easy integration & DALI commissioning with Intesis MAPS

Use Case

Integration of DALI drivers and sensors into a Modbus installation.

Description

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.

Thanks to its support for both Modbus RTU and TCP, with the possibility to work together at the same time, a seamless integration with any Modbus BMS or controller it is guaranteed.

The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.
