Mitsubishi Heavy Industries AC brand Solution

Find your AC integration solution developed jointly with Mitsubishi Heavy Industries. Following its specifications provided ensure the compatibility as a major factor to enable maximum efficiency.

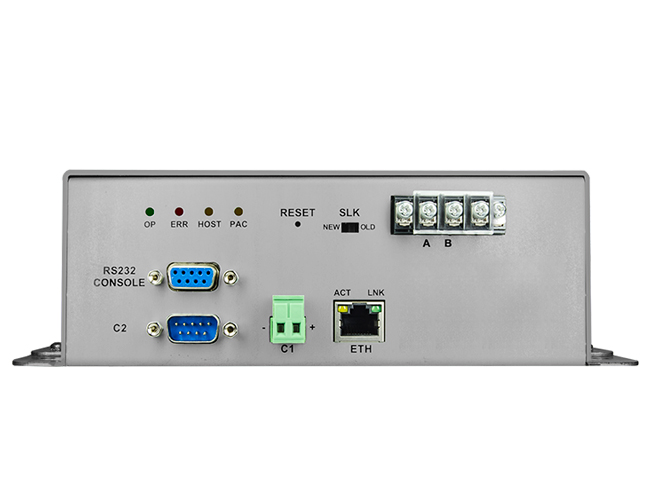

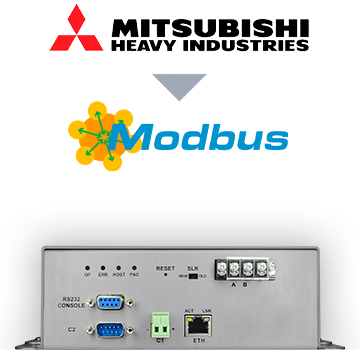

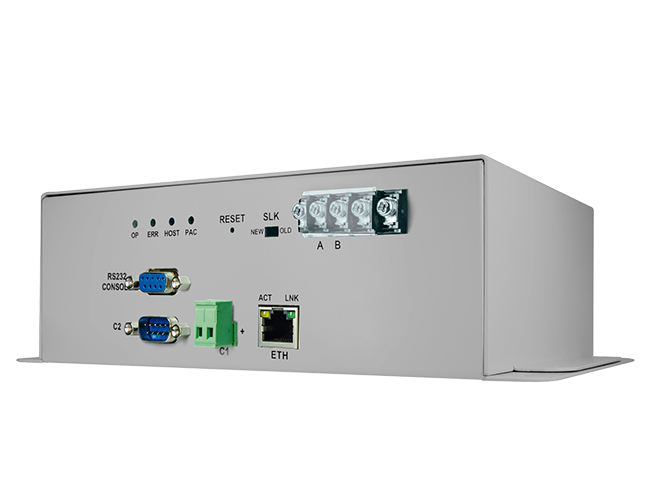

Mitsubishi Heavy Industries VRF systems to Modbus TCP/RTU Interface

The Mitsubishi Heavy Industrie interface has been specially designed to allow bidirectional control and monitoring of Mitsubishi Heavy Industries VRF systems from a BMS, SCADA, PLC or any other device working as a Modbus master.

FEATURES

• Direct access to outdoor unit’s communication bus.
• The interface is a Modbus slave able to manage Modbus TCP and Modbus RTU simultaneously.
• Capable of managing up to two simultaneous Modbus master connections
• Configuration through IP or RS-232 port.
• LED indicators to provide easy to check communication status and errors.

Use Case

Integration of Mitsubishi Heavy Industries Air Conditioner Units through Superlink connection into a Modbus installation.

Description

DIRECT CONNECTION TO VRF OUTDOOR UNITS

The gateway is directly connected to the outdoor units communication bus and enables the control of all the indoor units connected to the system.

SET UP BY LINKBOX

The configuration is carried out using Linkbox software. This one allows you to define your own settings for the device and offers extra functions such as a diagnostic feature.

Technical Documentation

Programming Tools

Case Study

Commercial Documentation

ORDER CODES:
