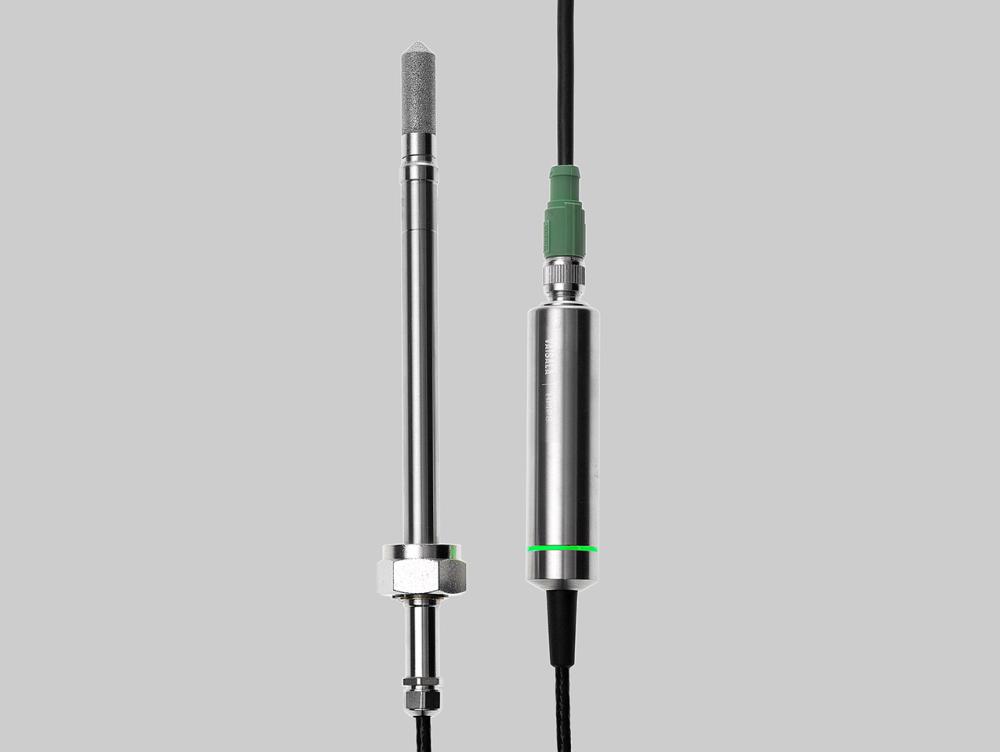

Vaisala HUMICAP Humidity and Temperature Probe HMP8 is designed for pressurized applications in compressed air systems, refrigerant dryers, and other pressurized industrial applications where easy insertion and removal of the probe and adjustable installation depth into the pipeline are needed. The HMP8 is part of the Indigo product family and compatible with Indigo500 and Indigo200 series transmitters and free Insight PC Software.
Key Benefits
Proven Vaisala HUMICAP performance
Vaisala is the original innovator of the thin-film capacitive humidity measurement technology, which has now become the industry standard in humidity measurement.
Chemical purge minimizes effects of contaminants
In environments with high concentrations of chemicals and cleaning agents, the chemical purge option helps to maintain measurement accuracy between calibration intervals.
Flexible connectivity
The probe is plug and play compatible with Vaisala Indigo series transmitters, can be used as a standalone digital Modbus RTU transmitter, or connected to Vaisala Insight™ PC Software.
Measurement Performance | |
Relative humidity | |
Measurement range | 0 … 100 %RH |
Accuracy at +23 °C (+73.4 °F) 1) | ±0.8 %RH (0 … 90 %RH) |
Factory calibration uncertainty 2) | ±0.5 %RH (0 … 40 %RH) ±0.8 %RH (40 … 95 %RH) |
T63 response time | 15 s |
Sensor options | HUMICAP R2 HUMICAP R2C 3) |
Temperature | |
Measurement range | −70 … +180 °C (−94 … +356 °F) |
Accuracy at +23 °C (+73.4 °F) 1) | ±0.1 °C (±0.18 °F) |
Factory calibration uncertainty 2) | ±0.1 °C (±0.18 °F) at +23 °C (+73.4 °F) |
Sensor | Pt100 RTD Class F0.1 IEC 60751 |
Operating Environment | |
Operating temperature of probe body | −40 … +80 °C (−40 … +176 °F) |
Operating temperature of probe head | −70 … +180 °C (−94 … +356 °F) |
Operational pressure | < 40 bar |
Measurement environment | For air, nitrogen, hydrogen, argon, helium, oxygen, and vacuum 1) |
IP rating of probe body | IP66 |
1) Consult Vaisala if other chemicals are present. Consider safety regulations with flammable gases | |
Inputs & Outputs | |
Operating voltage | 15 … 30 V DC |
Current consumption | 10 mA typical, 500 mA max |
Digital output | RS-485, non-isolated |
Protocols | Modbus RTU |
Output Parameters | |
Absolute humidity (g/m3) | Relative humidity (%RH) |
Absolute humidity at NTP (g/m3) | Relative humidity (dew/frost) (%RH) |
Dew point temperature (°C) | Temperature (°C) |
Dew/frost point temperature (°C) | Water concentration (ppmv) |
Dew/frost point temperature at 1 atm (°C) | Water concentration (wet basis) (vol %) |
Dew point temperature at 1 atm (°C) | Water mass fraction (ppmw) |
Dew point temperature difference (°C) | Water vapor pressure (hPa) |
Enthalpy (kJ/kg) | Water vapor saturation pressure (hPa) |
Mixing ratio (g/kg) | Wet-bulb temperature (°C) |
Compliance | |
EU directives | EMC Directive (2014/30/EU) RoHS Directive (2011/65/EU) |
EMC compatibility | EN 61326 1, industrial environment |
Type approvals | DNV GL certificate no. TAA00002YT |
Compliance marks | CE, China RoHS, RCM, WEEE |
Mechanical Specifications | |
Connector | M12 5-pin A-coded male |
Probe fitting | ISO1/2” and NPT1/2” fittings included |
Weight | Weight |
Materials | |
Probe | AISI 316L |
Probe body | AISI 316L |
Cable jacket | FEP |
Accessories | |
Ball valve ISO 1/2″ with welding joint | BALLVALVE-1 |
Indigo USB adapter 1) | USB2 |
1) Vaisala Insight software for Windows available at www.vaisala.com/insight. |
