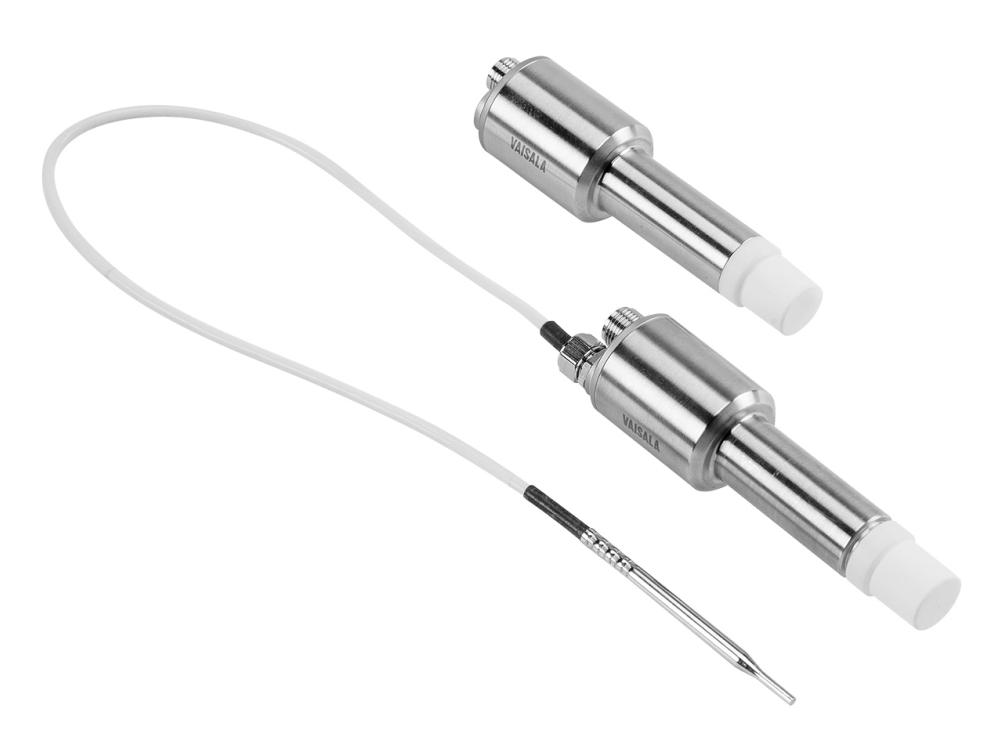

The Vaisala PEROXCAP Hydrogen Peroxide, Humidity, and Temperature Probe HPP270 series probes are designed for demanding hydrogen peroxide bio-decontamination. The probes are ideal wherever repeatable, stable, and accurate measurement is essential and suitable for a variety of applications such as isolator, material transfer hatch, and room bio-decontamination. The basic probe option HPP271 is for measuring only H2O2 vapor concentration. The advanced HPP272 probe measures all relevant parameters during bio-decontamination processes, including hydrogen peroxide vapor, temperature, and humidity as relative saturation and relative humidity, dew point, and vapor pressure. The probes can be used as standalone devices, or with Vaisala Indigo transmitters: Indigo200 transmitters and Indigo520 transmitters. For easy-to-use access to configuration, calibration, and adjustment the probe can be connected to Vaisala Insight PC software.
HPP271 Series | |
Measurement Performance | |
Hydrogen Peroxide | |
Sensor | PEROXCAP |
Measurement range | 0 … 2000 ppm |
Measurement temperature range | +5 … +50 °C (+41 … +122 °F) |
Repeatability at +25 °C (+77 °F) up to 500 ppm H2O2 | ±10 ppm |
Accuracy at +10 … +25 °C (+50 … +77 °F) , 10 … 2000 ppm H2O2 1) | ±10 ppm or 5 % of reading (whichever is greater) |
Factory calibration uncertainty at +25 °C (+77 °F), 500 ppm H2O2 2) | ±10 ppm |
Response time (T63) | 70 s |
Other Parameters | |
H2O ppm by volume | |
1) Including non-linearity, hysteresis, and repeatability. 2) Defined as ±2 standard deviation limits. See also calibration certificate. |
|
Inputs & Outputs | |
Operating voltage | Digital output: 15 … 30 VDC Analog output: 15 … 25 VDC |
Current consumption at +25 °C (+77 °F) | |
In digital mode | Max. 10 mA |
In analog mode | Max. 50 mA |
During purge | Max. 250 mA |
Digital Output | |
Interface | RS-485, not isolated; do not use termination on the RS-485 line |
Communication protocol | Modbus RTU v.1.02 |
Analog Output | |
Outputs | 2 × 4 … 20 mA 3-wire current outputs |
Max. load | 500 Ω |
Accuracy (typical) | ±0.1 % of full scale |
Analog output temperature dependence | 0.005 %/°C (0.003 %/°F) full scale |
Operating Environment | |
Operating temperature | +0 … +70 °C (+32 … +158 °F) |
Storage temperature | −20 … +70 °C (−4 … +158 °F) |
Ambient pressure | Normal atmospheric pressure |
IP rating | IP65 |
Compliance | |
EU directives | EMC, RoHS |
EMC compatibility | EN 61326 1, industrial environment |
EMC emissions | CISPR 32 / EN 55032, Class B |
Compliance marks | CE, China RoHS, RCM |
Mechanical Specifications | |
Connector | M12/5 male |
Materials | |
Probe body | AISI316L stainless steel |
Filter cap | Porous PTFE |
Spare Parts & Accessories | |
Indigo USB adapter 1) | USB2 |
Probe cable with open wires, 1.5 m (4.9 ft) | 254294SP |
Probe cable with open wires, 3 m (9.8 ft) | 254295SP |
Probe cable with open wires, 5 m (16 ft) | 254296SP |
Probe cable with open wires, 10 m (33 ft) | 254297SP |
Flat cable, M12-5F – M12-5M, 1 m (3.3 ft) | CBL210493SP |
Filter | DRW246363SP |
Gland set for through-wall installation, HPP271 | HPP271MOUNTINGSET1 |
Flange for through-wall installation, HPP271 | HPP271MOUNTINGSET2 |
Wall mount for HPP271 and HPP272 | HPP272WALLMOUNT |
Transmitters | |
Indigo transmitters | See more |
1) Vaisala Insight software for Windows available at www.vaisala.com/insight. |
HPP272 Series | |
Measurement Performance | |
Hydrogen Peroxide | |
Sensor | PEROXCAP |
Measurement range | 0 … 2000 ppm |
Measurement temperature range | +5 … +50 °C (+41 … +122 °F) |
Repeatability at +25 °C (+77 °F) up to 500 ppm H2O2 | ±10 ppm |
Accuracy at +10 … +25 °C (+50 … +77 °F) , 10 … 2000 ppm H2O2 1) | ±10 ppm or 5 % of reading (whichever is greater) |
Factory calibration uncertainty at +25 °C (+77 °F), 500 ppm H2O2 2) | ±10 ppm |
Response time (T63) | 70 s |
Relative Saturation | |
Measurement range | 0 … 100 %RS |
Measurement temperature range | +5 … +50 °C (+41 … +122 °F) |
Repeatability at +25 °C (+77 °F), 500 ppm H2O2 | ±0.5 %RS |
Accuracy at +25 °C (+77 °F) 1) | ±4 %RS |
Factory calibration uncertainty at +25 °C (+77 °F), 500 ppm H2O2 2) | ±2 %RS |
Relative Humidity | |
Measurement range | 0 … 100 %RH |
Measurement temperature range | +5 … +70 °C (+41 … +158 °F) |
Accuracy: 1) | |
at +25 °C (77 °F), 0 ppm H2O2, 0 … 90 %RH | ±1 %RH |
over full temperature measurement and H2O2 range | ±2 %RH |
Response time (T63) | 20 s |
Factory calibration uncertainty at +25 °C (77 °F), 0 ppm H2O2, 0 … 95 %RH 2) | ±1 %RH |
Temperature | |
Sensor | Pt1000 RTD Class F0.1 |
Accuracy over temperature range | ±0.2 °C (±0.36 °F) |
Other Parameters | |
Absolute H2O2 and H2O, H2O ppm by volume, water vapor saturation pressure (H2O and H2O+H2O2), dew point temperature, vapor pressure (H2O and H2O2) | |
1) Including non-linearity, hysteresis, and repeatability. 2) Defined as ±2 standard deviation limits. See also calibration certificate |
|
Inputs & Outputs | |
Operating voltage | Digital output: 15 … 30 VDC Analog output: 15 … 25 VDC |
Current consumption at +25 °C (+77 °F) | |
In digital mode | Max. 10 mA |
In analog mode | Max. 50 mA |
During purge | Max. 250 mA |
Digital Output | |
Interface | RS-485, not isolated; do not use termination on the RS-485 line |
Communication protocol | Modbus RTU v.1.02 |
Analog Output | |
Outputs | 2 × 4 … 20 mA 3-wire current outputs |
Max. load | 500 Ω |
Accuracy (typical) | ±0.1 % of full scale |
Analog output temperature dependence | 0.005 %/˚C (0.003 %/°F) full scale |
Operating Environment | |
Operating temperature | +0 … +70 °C (+32 … +158 °F) |
Storage temperature | −20 … +70 °C (−4 … +158 °F) |
Ambient pressure | Normal atmospheric pressure |
IP rating | IP65 |
Compliance | |
EU directives | EMC, RoHS |
EMC compatibility | EN 61326 1, industrial environment |
EMC emissions | CISPR 32 / EN 55032, Class B |
Compliance marks | CE, China RoHS, RCM |
Mechanical Specifications | |
Connector | M12/5 male |
Materials | |
Probe body | AISI316L stainless steel |
Filter cap | Porous PTFE |
Temperature probe | AISI316L stainless steel |
Temperature probe cable | PTFE |
Spare Parts & Accessories | |
Indigo USB adapter 1) | USB2 |
Probe cable with open wires, 1.5 m (4.9 ft) | 254294SP |
Probe cable with open wires, 3 m (9.8 ft) | 254295SP |
Probe cable with open wires, 5 m (16 ft) | 254296SP |
Probe cable with open wires, 10 m (33 ft) | 254297SP |
Flat cable, M12-5F – M12-5M, 1 m (3.3 ft) | CBL210493SP |
Filter | DRW246363SP |
Gland set for through-wall installation, HPP272 | HPP272MOUNTINGSET1 |
Flange for through-wall installation, HPP272 | HPP272MOUNTINGSET2 |
Wall mount for HPP271 and HPP272 | HPP272WALLMOUNT |
Indigo transmitters | See more |
1) Vaisala Insight software for Windows available at www.vaisala.com/insight. |
