17220 - ProfiHub B2FO2+ - Fiber Optic to Segment Coupler

The ProfiHub B4FO2+ is a cost-effective solution to link PROFIBUS fiber optic to RS 485 segments and vice versa. It enables reliable applications where long cable distances and an isolation between devices and segments are required. It has the following unique features:

  • Transparent for all PROFIBUS DP protocols
  • Suitable for PROFIsafe and MPI
  • High-integrity telegram checking

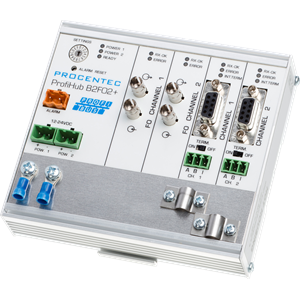

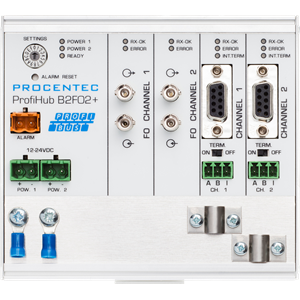

ProfiHub B2FO2+ - Fiber Optic to Segment Coupler

The B2FO2+ supports multiple fiber optic topologies; point-to-point, bus and star. The protocol transparency without configuration allows direct integration in existing PROFIBUS networks. This way, you benefit from the advantages that optical data infrastructures offer.

The ProfiHub B2FO2+ is equipped with 2 galvanic isolated RS 485 channels utilizing a maximum of 31 devices per channel.

The mechanical design consists of a compact, flat and stable metal housing which can be mounted on a DIN-rail. It contains an alarm relay, redundant power supply, diagnostic LEDs and it supports the redundancy feature.

nullnull

Technical specifications

 PROFIBUS

  • Transparent for all PROFIBUS DP protocols
  • Suitable for PROFIsafe and MPI
  • High integrity telegram checking

RS 485

  • 2 Segments
  • 9.6 Kbps .. 12 Mbps (auto detection)
  • 1200 m segment length (depends on baudrate)
  • 31 devices per channel
  • Bus redundancy option
  • Screw terminals and DB9 connectors
  • Configurable grounding system
  • Integrated termination facilities

Fiber optic

  • 2 Fiber channels
  • 3 km cable length
  • Point-to-point, star and bus topologies
  • 4 ST/BFOC connectors
  • Multimode cable G62.5 / 125 (OM1) - 850 nm
  • No limit in cascading

Others

  • Alarm contact
  • Power supply: 9 .. 31 VDC
  • Redundant power supply
  • IP 20 classification
  • Temperature: -25 .. 70˚ C
  • Dimensions (LxWxH): 125 x 111 x 29 mm
