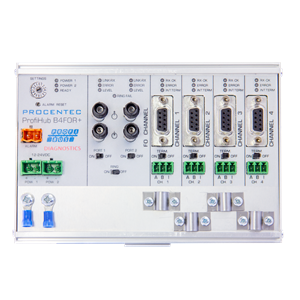

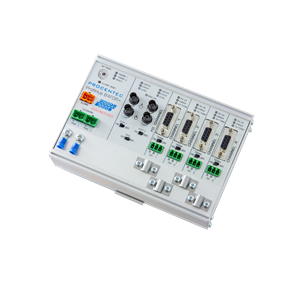

17440 - ProfiHub B4FOR+ (Single-Mode)
The ProfiHub B4FOR+ is a cost-effective solution to link PROFIBUS fiber optic to multiple RS 485 segments and vice versa. Additional to the other fiber optic repeaters, this module enables the installation of a ring topology, of which the status can be remotely monitored via the ComBricks web browser.
- One fiber opitc channel, divided into 2 ports
- 4 galvanically isoltated channels
- Ring redundancy
- Available in Multi-Mode and Single-Mode
ProfiHub B4FOR+ - Fiber Optic to Multi Segment Coupler
The B4FOR+ supports multiple fiber optic topologies; ring-, point-to-point, bus and star. The protocol transparency without configuration, allows direct integration in existing PROFIBUS networks to benefit from the advantages optical data infrastructures offer.
The ProfiHub B4FOR+ is equipped with 4 galvanic isolated RS 485 channels utilizing a maximum of 31 devices per channel.
The mechanical design consists of a compact, flat and stable metal housing which can be mounted on a DIN-rail. It contains an alarm relay, redundant power supply, diagnostic LEDs and it supports the redundancy feature.
Technical specifications
RS 485
- 4 galvanically isolated channels
- 9.6 Kbps .. 12 Mbps (auto detection)
- 1200m segment length (depends on baudrate)
- Bus redundancy
- Screw terminals and DB9 connectors
- integrated termination
PROFIBUS
- Transparent for all PROFIBUS DP protocols
- Suitable for PROFISafe and MPI
- High integrity telegram tracking
Fiber optic
- One fiber optic channel, split into two ports
- Max. 30km cable length
- ring topology, bus topologies, star topolgies, point-to-point
- Single-Mode 1310nm
- Fiber cable G9 / 125 (OS1 or OS2)
Other
- Alarm contact
- Power supply 12 ... 24 VDC
- Redundant power supply
- IP 20 classification
- Temperature =25 ... +70*C
- Dimensions (LxWxH): 167 x 111 x 40 mm
