Integrate your serial RS-232/485 based industrial devices and equipment to PROFINET control systems without any changes to the device. Just connect, configure and you’re done.
The Anybus Communicator can transfer large amounts of data, is fast to configure thanks to its’ drag and drop web interface and is built on trusted Anybus technology.
CONVERT ALMOST ANY TYPE OF SERIAL PROTOCOL
The Communicator can convert both standard serial protocols such as Modbus RTU and proprietary serial request/response or produce/consume based protocols.
TYPICAL SERIAL APPLICATIONS
Typical serial applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.
Transfer up to 1 024 bytes of data
Demand for more data is constantly growing and the Communicator has been equipped to handle the challenge. It can transfer 1 024 bytes from the PLC to the Gateway and 1 024 bytes from the gateway to the PLC, 2 048 bytes in tota. Support for up to 150 Modbus commands means even complex configurations with multiple nodes can be handled with ease.
Drag and drop web interface
To make sure you spend as little time as possible configuring the Communicator, we have built a graphical and responsive web-based user interface. No software needed to be installed, just open your favorite web browser and get started.
Industrial temperature range
An industrial operating temperature range of -25 to +70 °C ensures the Communicator can excel under harsh conditions.
Powered by proven NP40 technology
The Communicator is built on the award-winning and proven Anybus NP40 network processor. With hundreds of thousands NP40:s used in Embedded applications across the world, it is the industry benchmark for reliable industrial communication.
Even with sophisticated security measures, human error is still the main cause of security breaches. To simplify security, we added a physical security switch on the Communicator. It locks your configuration and prevents any access to the web-based configuration interface. Just flip it when your configuration is done and watch the padlock LED on the product light up.
Ethernet configuration port
With a dedicated Ethernet configuration port you don’t need any special configuration cable. In addition, it is easy to connect to the gateway to monitor network traffic.

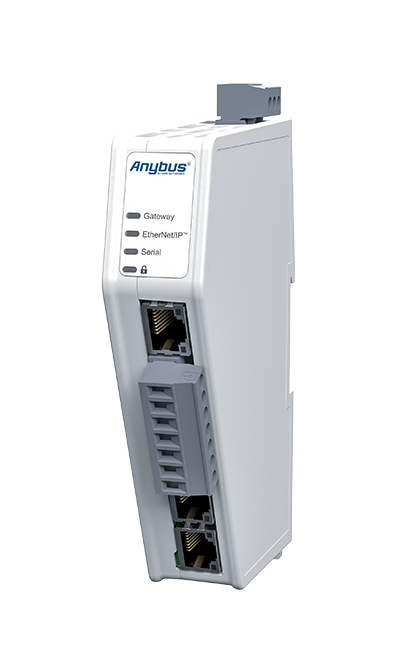

Optimized for DIN-rail mounting
The slim form factor, front facing network connectors, screw in serial cable connector and the neat cable tie ensure it is fast and simple to install and connect the Communicator.
When opening the Communicator web interface you immediately see the status of the PROFINET connection and serial connection. You can even see the status of individual serial nodes. It’s also equipped with a serial log and an event log for further analysis.
Sometimes you run into a problem where you need help. That’s why we have included a support page in the user interface with contact information. There is even a button to generate a support package to simplify troubleshooting.
|Ports||1 x RS232/RS485|
|Baud rate||1200 bps to 128 kbps|
|Connector||7-pole Phoenix connector|
|Max number of commands||150|
|Input data size||1500 bytes|
|Output data size||1500 bytes|
|Dimensions (L x W x H) with serial and power connector||98 x 27 x 144 mm
3.85 x 1.06 x 5,67 in
|Weight||150 grams, 0.33 lb|
|Buttons and switches||Reset button and security switch|
|LEDs||Gateway, Network 1 and Serial status|
|Housing material||PC ABS, UL 94 VO|
|Mounting||DIN rail (35 * 7,5/15)|
|Operating temperature||-25 to 70° C, -13 to 158° F|
|Storage temperature||-40 to 85° C, -40 to 185° F|
|Relative humidity||0-95% non condensing|
|Installation altitude||Up to 2 000 m|
|Input voltage||12 - 30 VDC|
|Current consumption||Typical: 160 mA @ 24V Max: 400 mA @ 12V|
|Power connector||3-pin plug with screw terminal|
|Protection||Reverse voltage protection and short circuit protection|
|Ports||2 x Ethernet|
|Bitrate||10/100 Mbit full duplex|
|Switch.||Dual port cut-through switch|
|Mode||PROFINET IO-Device (slave)|
|Communication channels||Real Time Channel (RT)|
|Input data size||1 024 bytes|
|Output data size||1 024 bytes|
|Minimum cycle time||1 ms|
|Max number of connections||1 IO Controller Application Relationship + 2 Device Access Application Relationships|
|Netload class||Class III|
|I&M records||Manufacturer data (I&M0), Tag information (I&M1), Date/Time (I&M2), Description (I&M3)|
|UL||CULUSfile number E214107|
|KC||R-R-ABJ-Communicator (Pending for EtherCAT MainDevice)|
IEC 60068-2-1 Ab
|Vibration and shock||
|Configuration software||Web based configuration|
|Configuration ports||Dedicated 10/100 Mbit RJ45 Ethernet configuration port and Ethernet ports|
|Secure boot||Ensures software authenticity|
|Security switch||Physical switch that enable/disable access to the web based configuration interface|
|Content||Gateway, power connector, start-up guide, compliance information sheet|
|MTBF||> 1 500 000 h, Telcordia Method I Case 3 at 30° C|
The User Interface enables you to:
