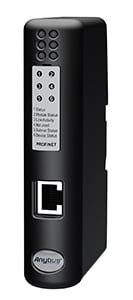

Features and benefits

• Fast copying of cyclic I/O data between a CANopen and PROFINET network (5 ms)
• Full CANopen Master/Manager functionality, eliminates the need for an PLC controller on the CANopen network
• Connects up to 126 CANopen slave devices
• Proven and tested with all PLC manufacturers
• Easy CANopen configuration via the included Anybus Configuration Manager software. No programming required
• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
• Robust stand-alone housing for use in harsh industrial environments
• Global free technical support and consultancy

CANopen Master/Manager Interface

• CANopen Master/Manager implementation according to the CANopen specification DS301 v4.0.2.
• Connects up to 126 CANopen slaves
• Network Management (NMT) messages, to configure and initialize the network.
• Supporting 128 Receive PDOs and 128 Transmit PDOs, each can transfer up to 8 bytes.
• Up to 510 bytes of cyclic data in each direction (PDO)
• PDO message types: COS (Change of State), Cyclic Synchronous, Acyclic Synchronous.
• Synchronization Object (SYNC) is used for synchronizing PDO communication.
• Heartbeat Mechanism to monitor the status of nodes.
• Node Guarding/Life Guarding Protocol provides possibility to guard slaves or the master.
• EMCY (Emergency Object) is used for error reporting.
• LSS master functionality
• Can also function as a CANopen Slave

PROFINET I/O Device/Slave interface

PROFINET IO Device/Slave settings can be made by importing the provided .GSDML file into engineering tool of the controlling PLC.

• Complete PROFINET-IO Soft-Real-Time (RT) communication
• Max 512 bytes of Input and 512 bytes of Output data
• Up to 64 slots / 1 sub slot
• Cyclic data exchange (10 ms cycle time)
• Acyclic Data exchange (Record Data Requests)
• Baud rate 100 Mbit/s
• Integrated FTP server provides easy file management using standard FTP clients
• Web server with dynamic data capability and Server Side Include (SSI) capability
• Email client with dynamic data capability and Event-triggered email handling
• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)
• PROFINET uplink configuration via web interface or .GSDML file
• 1x RJ45 network connector

Technical specifications

CERTIFICATIONS
