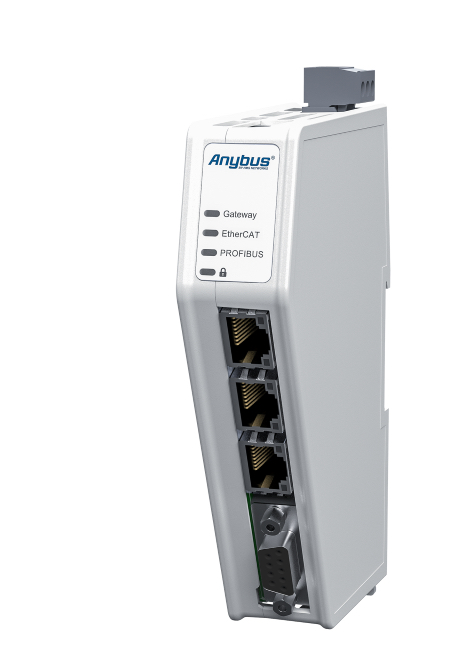

ABC3100 - Anybus Communicator – EtherCAT MainDevice – PROFIBUS

Giá bán: Liên hệ

Mã sản phẩm: ABC3100

Thương hiệu: Anybus - HMS Industrial Networks

Tình trạng: Còn hàng

ORDER CODE: ABC3100

WARRANTY:  3 years

Tư vấnhotline0965746247

Order Code: ABC3100
EtherCAT MainDevice – PROFIBUS

With the new Anybus Communicator, connecting EtherCAT SubordinateDevices (slaves) to PROFIBUS-based Control Systems (PLCs) has never been easier. The Communicator provides reliable and high-speed data transfer, making it perfect for applications that require large amounts of data to be transferred quickly. Thanks to its intuitive web interface and drag-and-drop functionality, configuring the Communicator is fast and straightforward. Furthermore, you have peace of mind knowing that the Communicator is built with proven and trusted Anybus technology.

With the Anybus Communicator, you can connect your devices with confidence and get back to focusing on what matters most – your business.

SCAN FOR ETHERCAT DEVICES

 With the Anybus Communicator, you can quickly and effortlessly scan the EtherCAT network for devices directly from the web user interface. The Communicator automatically identifies each device and maps its data to   the control system, eliminating the need to manually search for device description files (ESI) and import them.

With the Anybus Communicator, scanning for EtherCAT devices is a simple and hassle-free process, allowing you to save time and focus on more important tasks.

Excellent performance

  • Instant data transfer - The time required for data is made up of the cycle time of the first network plus the cycle time of the second network. The internal data transfer in the communicator is negligible because it corresponds to the natural fluctuations of the network cycle times (jitter).
  • Hardware-accelerated endian conversion (byte swap) - Communicators can change the data representation (endianness) using hardware-accelerated endian conversion to ensure that data is represented correctly in each PLC. You can even convert different parts of the data area in different ways to handle different types of data. This has no impact on performance, relieves the PLC of the data conversion task, and simplifies PLC programming.



Easy startup

  • Dedicated Ethernet configuration port - no special cables required.
  • Intuitive web-based drag-and-drop configuration interface - no need to install additional software.
  • Scan for EtherCAT devices  - automatically identifies each device and maps its data toward the control system.
  • Front-facing connectors make it easy to connect cables, and the slim form factor saves space on the DIN rail.
  • Troubleshoot with powerful diagnostics, including live data monitor, status screen, and support package.



Latest security features

  • Secure boot functionality to detect firmware tampering and protect against malware attacks and infections.
  • Security switch that locks your configuration and prevents any unauthorized access.
  • The ports used in production have been disabled to prevent malware from being loaded via the ports.



For industrial environments

  • Robust, compact housing.
  • Industrial components are CE and UL tested and certified.
  • Wide temperature range, -25°C to 70°C.
  • Top-hat rail mounting for installation close to the connected devices, reducing wiring effort.

Use Case Communicator

  • EtherCAT MainDevice
  • Transfer up to 1500 to and from EtherCAT (3000 bytes in total)
  • 1 ms cycle time (configurable)
  • Up to 24 EtherCAT SubordinateDevices (slaves)
  • CANOpen Over EtherCAT (CoE)
  • Cyclic data transfer using Process Data Objects (PDOs)
  • Scan for EtherCAT SubordinateDevices (ESI files are not supported)
  • Live list - Monitor EtherCAT SubordinateDevice status from control system
  • Data exchange control – Enable/disable EtherCAT SubordinateDevice from control system
  • Clone configuration – scan an EtherCAT network once and re-use the configuration for identical systems



The following features are not supported:

-          Acyclic data transfer using Service Data Objects (SDOs) (only cyclic data transfer using PDOs supported)

-          Ethernet over EtherCAT (EoE)

-          Servo Profile over EtherCAT (SoE)

-          Redundancy with ring topology

-          Import EtherCAT Slave Information (ESI) files (EtherCAT SubDevices need to be scanned)

-          Select SubDevice data to be mapped towards the control system (default data is always mapped)

  • PROFIBUS DPV1 & DPV0 Device (slave)
  • Transfer up to 244 bytes to and from PROFIBUS (488 bytes total)
  • Automatic baud rate detection up to 12 Mbit/s
  • PROFIBUS slave address setting via onboard rotary switches or web interface
  • Supports Sync and Freeze and Watchdog
  • Supports I&M 0-3
  • 1x D-sub 9-pin female PROFIBUS connector
  • GSD file available

The User Interface enables you to:

  • Change the configurations without installing additional software
  • Use drag and drop functionality to configure the gateway
  • Import or export files or firmware
  • Analyze live data or export a log file for deeper analysis
  • Use the support tab to open the relevant user guide or generate a customized support package
  • Want to brand your interface? No problem! Customize the interface to meet your look

GENERAL

Dimensions (L x W x H) with serial and power connector 98 x 27 x 144 mm
3.85 x 1.06 x 5,67 in
Weight 150 grams, 0.33 lb
Buttons and switches Reset button and security switch
LEDs Gateway, Network 1 & Network 2
IP rating IP20
Housing material PC ABS, UL 94 VO
Mounting DIN rail (35 * 7,5/15)





ENVIRONMENT

Operating temperature -25 to 70° C, -13 to 158° F
Storage temperature -40 to 85° C, -40 to 185° F
Relative humidity 0-95% non condensing
Installation altitude Up to 2 000 m





POWER

Input voltage 12 - 30 VDC
Current consumption Typical: 160 mA @ 24V Max: 400 mA @ 12V
Power connector 3-pin plug with screw terminal
Protection Reverse voltage protection and short circuit protection





ETHERNET PORTS

Ports 2 x Ethernet ports per Ethernet protocol
Isolation Galvanic isolation
Bitrate 10/100 Mbit full duplex
Connector RJ45
Switch. Dual port cut-through switch





EtherCAT MainDevice

Mode MainDevice
Cycle times supported 1, 2 ,4, 8, 16, 32, 64, 128 ms
Max number of SubDevices 24
Input data size 1500 bytes
Output data size 1500 bytes
Data transfer Cyclical data transfer with PDOs (SDOs are not supported)
SubDevice discovery Scan to discover SubDevices via a web user interface (ESI files are not supported)
SubDevice PDOs Default data is mapped to the control system (can’t pick what to map)

PROFIBUS

Mode PROFIBUS DPV1 Device (slave)
Input data size 244 bytes
Output data size 244 bytes
Baude rate Automatic baud rate detection up to 12 Mbit/s
Rotary switches PROFIBUS slave address setting via onboard rotary switches or web interface
Features Supports Sync and Freeze and Watchdog
I&M records Manufacturer data (I&M0), Tag information (I&M1), Date/Time (I&M2), Description (I&M3)
Connector 1x D-sub 9-pin female PROFIBUS connector
GSD GSD file available

CERTIFICATIONS AND STANDARDS

UL CULUSfile number E214107
CE 2014/30/EU
KC R-R-ABJ-Communicator (Pending for EtherCAT MainDevice)
EMC

EN 61000-6-2
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-6-4
EN 55032

Environment

IEC 60068-2-1 Ab
IEC 60068-2-2 Bb
IEC 60068-2-1 Ab
IEC 60068-2-2 Bb
IEC 60068-2-14 Nb
IEC 60068-2-30 Db
IEC 60068-2-78 Cab
IEC 60068-2-78 Cab

Vibration and shock

IEC 60068-2-27
IEC 60068-2-6

Waste certification WEE





CONFIGURATION

Configuration software Web based configuration
Configuration ports Dedicated 10/100 Mbit RJ45 Ethernet configuration port and Ethernet ports





SECURITY

Secure boot Ensures software authenticity
Security switch Physical switch that enable/disable access to the web based configuration interface





PRODUCT PACKAGING

Content Gateway, power connector, start-up guide, compliance information sheet
Box material Cardboard



MEAN TIME BETWEEN FAILURE

MTBF > 1 500 000 h, Telcordia Method I Case 3 at 30° C
