Technical Specifications

Certifications & Standards

• UL Information: E214107

• Protection Class IP: IP20

• RoHS Compliant: Yes

General

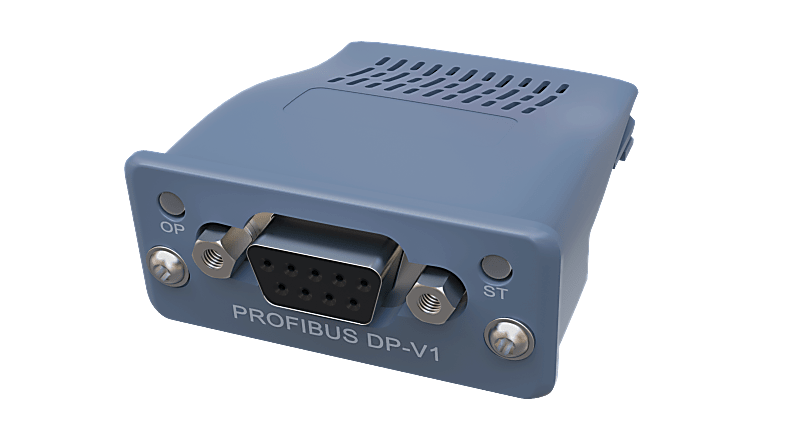

• Content of Delivery: CompactCom M30 module

• Net Width (mm): 50 mm

• Net Height (mm): 22 mm

• Net Depth (mm): 52 mm

• Net Weight (g): 28 g

• Packed Width (mm): 8 mm

• Packed Height (mm): 3 mm

• Packed Depth (mm): 7 mm

• Packed Weight (g): 40 g

• Mounting: PCB mounting via a customized CompactFlash connector

• Current Consumption Class (CompactCom series): A

• Input Voltage (V): 3.3 VDC, +/- 0.15 VDC

• Isolation: Galvanic Isolation

• Operating Temperature °C Min: -40 °C

• Operating Temperature °C Max: 70 °C

• Storage Temperature °C Min: -40 °C

• Storage Temperature °C Max: 85 °C

• Warranty (years): 1

• Application Interface: 8-bit parallel (30 ns access) UART (max 625kbps)

Identification & Status

• Item Number: AB6200-B

• Export Control Classification Number (ECCN): 3A991.a.2

• Dual Usage: No

• Country of Origin: Lithuania

• Brand: Anybus

• HS Code: 8517620000

• Successor: AB6600-C

Physical Features

• LED Indicators: Indicates Module Status and Network Status

• Form Factor: Module

• Connectors / Input / Output: D-sub

• Contains Battery: No
