Anybus Communicator CAN - PROFINET

Integrate your CAN-based industrial devices and equipment to a PROFINET control system without the need for any changes to the device. Just connect, configure and you're done!

The Anybus Communicator is a proven and trusted protocol converter gateway that connects non- industrial devices with a CAN-based protocol to PROFINET. The gateway performs an intelligent protocol conversion and presents the CAN data to the PLC/Controller as easily processed I/O data.

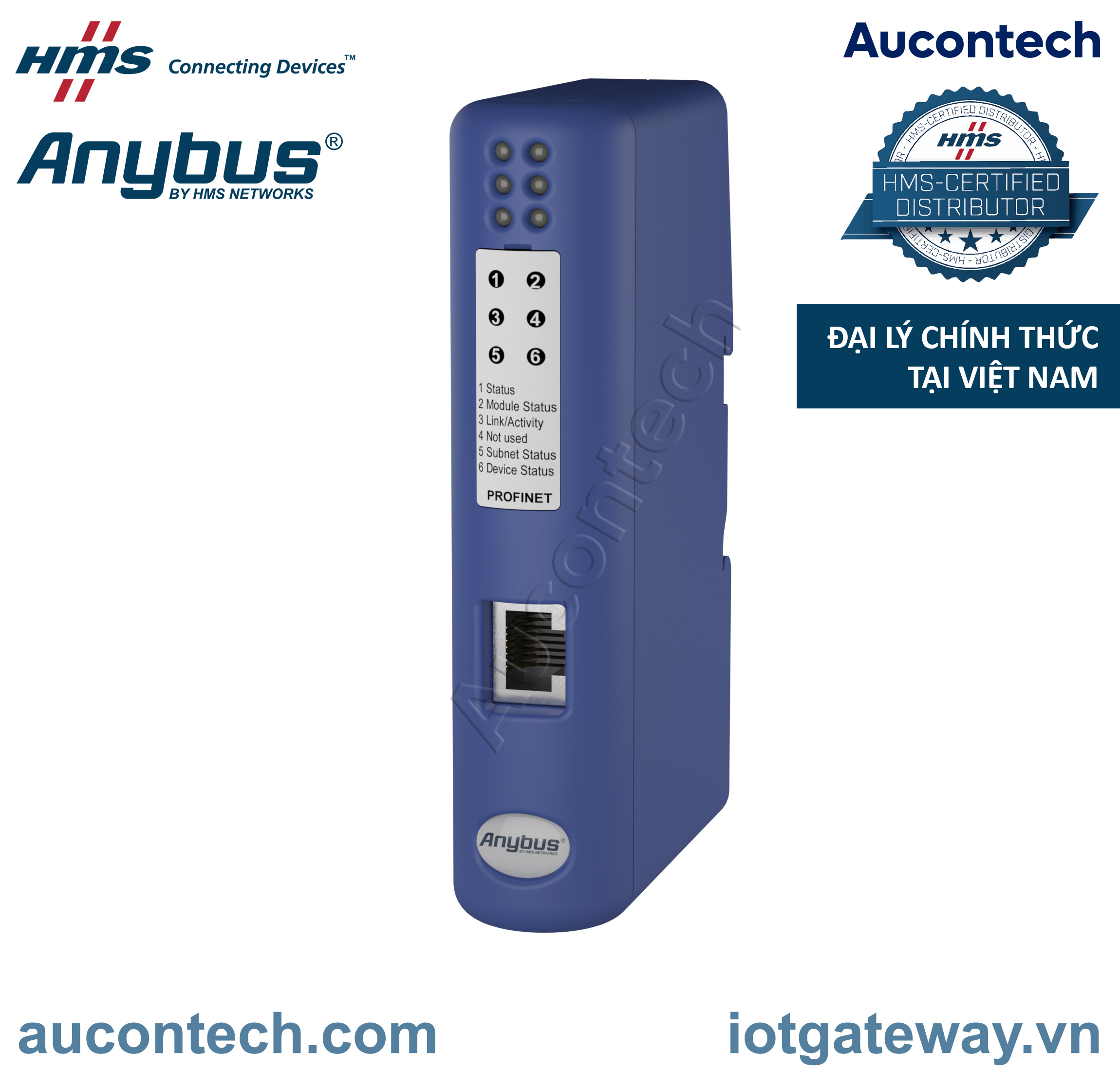

The Communicator is slim stand-alone gateway designed for IP20 and DIN-rail mounting, requiring a 24-volt power supply. The Communicator is conformance tested to current PROFINET-IO specifications guaranteeing network compatibility.

TYPICAL CAN APPLICATIONS

Typical CAN applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.

FEATURES AND BENEFITS

• CAN protocol converter gateways connecting CAN devices to fieldbus/Ethernet networks
• Support for custom CAN 1.0, 2.0A and 2.0B protocols
• Handles mixed Produce/Consume and Request/Response protocols and transactions
• No hardware or software changes needed to your devices
• No PLC code or function blocks required • Compatible with PLCs from all leading manufacturers
• Versions with Dual Port switched Ethernet allows for daisy chaining and eliminates the need for external switches
• High performance, fast throughput, max 5 ms
• Anybus Configuration Manager included for easy visual CAN frame building
• Dynamic transaction controlled by network master
• Global free technical support and consultancy
• See www.anybus.com for application notes and instruction videos on how to configure the gateway

CAN CONFIGURATION - ANYBUS CONFIGURATION MANAGER

The Anybus Configuration Manager (ACM) is included with the purchase of the Anybus Communicator.

• Graphical CAN frame building support using several ready-made CAN functions.
• Can configure any CAN 2.0A or 2.0B based protocol (11 and 29 bit identifiers).
• Configures upto 128 transactions containing a total of 256 CAN frames
• Monitor/Modify function of process I/O data informing of CAN transaction status
• Diagnostic transaction Live List in the network I/O informing of CAN transaction status
• Multi-language support, supporting English, German, Spanish, Italian, French, Polish, Russian, Chinese and Japanese
• Handy Save/Load function allows for a completed configuration to be re-used for many other installations
• Password protection prevents unauthorized upload and download of configurations

PROFINET INTERFACE FEATURES

• Complete PROFINET-IO Soft-Real-Time (RT) communication
• Max 512 bytes of Input and 512 bytes of Output data
• Up to 64 slots / 1 sub slot
• Cyclic data exchange (10 ms cycle time)
• Acyclic Data exchange (Record Data Requests)
• Baud rate 10/100 Mbit/s
• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)
• PROFINET uplink configuration via .GSDML file
• 1x RJ45 network connector

TECHNICAL SPECIFICATIONS

COMMUNICATOR CAN

TECHNICAL DETAILS

CERTIFICATIONS

ELECTRICAL CHARACTERISTICS

HARDWARE CHARACTERISTICS

ENVIROMENTAL CHARACTERISTICS

IMMUNITY AND EMISSION FOR INDUSTRIAL ENVIRONMENT

Content of delivery

• Configuration Cable (RS232) Port
• Installation sheet
• Dsub with screw terminals for sub network

Ordering Information

ORDER CODE: AB7317

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable is supplied with every single-piece Communicator shipment
- CAN D-sub connector is supplied with every single-piece Communicator shipment
- All configuration software available for download
- (Power supply not included)


GUARANTEE:  1 years
