EC61330 - Ewon Cosy 131 ETH - 4 cổng Ethernet (3 LAN + 1 WAN) - Ewon Việt Nam

Giá bán: Liên hệ

Mã sản phẩm: EC61330_00MA

Thương hiệu: HMS

Tình trạng: Còn hàng

Ordering Information

ORDER CODE: EC61330_00MA



Tư vấnhotline0965746247

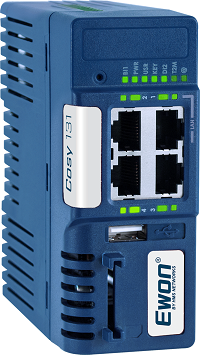

Ewon COSY 131 Ethernet Industrial Remote Access Router, 24VDC, DIN-Rail Mount, 4 x RJ45 Ethernet LAN/WAN Ports, 1 x USB Port, 2 x DI / 1 x DO, -25 to 70C. Price Per Each - Sold As Single Unit. (Please Specify Model Number.)

The Ewon Cosy is an industrial remote access gateway that is designed to offer scalable and secure remote access to machines in the factory.

Machine Builders, Line Builders, and System Integrators can troubleshoot machines, debug PLC programs, upload projects, and gain remote control of an HMI or an IP camera, all without going on site. This drastically reduces support costs for them and their customers.

The Ewon Cosy establishes a secure VPN connection from the machine to anywhere in the world via Talk2M, a cloud-based remote connectivity solution. The router seamlessly communicates on the local area network with the PLC and the HMI, and allows remote connection from a computer, tablet, or smartphone. Ewon Cosy and Talk2M make connectivity easy, and don't require the user to be an IT expert to take advantage of the time and cost saving advantages.

How does it work?






The Ewon Cosy establishes a secure VPN connection from the machine to anywhere in the world via Talk2M, a cloud-based remote connectivity solution.

The gateway seamlessly communicates on the local area network with the PLC and the HMI, and allows remote connection from a computer, tablet, or smartphone.

Ewon Cosy and Talk2M make connectivity easy, and don’t require the user to be an IT expert to take advantage of the time and cost saving.

talk2m-graphic_isometric_v1-min_cosyplus

Select your Device for Industrial Remote Access




EASIER THAN EASY

Quick setup wizard
Works out-of-the-box with all major PLC/HMI brands and USB enabled devices
Machine (PLC) can be kept operational during installation
Easy to commission without local connection

NO HIDDEN COSTS FREE VPN client for desktop & mobile
Included VPN cloud access
Unlimited number of machines & users
IT APPROVED Exclusive outbound connection for high security
Two-factor authentication, audit trail & network segregation
Remote access can be controlled (on/off) by end-user with an external key switch
ISO27001 approved
HIGH AVAILABILITY 30+ servers spread worldwide to for always-ready Remote Access
Easily add Ewon Cosy devices and users to your account
Configurable SMS and Email notification for pro-active maintenance
Secondary WAN interface for backup Internet Connectivity
Rockwell Automation/Allen Bradley SLC5/500 Series
Micro/Compact/Control Logix Series
Micro Series
Siemens S5 Series*
S7-200/300/400/1200/1500**
Logo
Schneider Electric TSX Series
M Series (M258, M340,...)
Twido Series
Mitsubishi iQ/FX5 Series
Q series
L Series
FX3 series
VIPA Speed 7 series
OMRON C, CJ, CP, CS Series
N Series
HITACHI EH Series
Generic Modbus TCP/RTU Any Modbus TCP/RTU Slaves
(Beckoff, Crouzet, ABB, Delta,...)
Generic OPCUA Any OPCUA Servers
(B&R, Beijer, Beckoff,...)
Generic BACNET IP Any BACNET IP Servers
Generic SNMP Any SNMP v1 servers

* polling only, no remote access
** remote access to safety PLC devices (-F series) is not supported



WAN Ethernet

up to 3 ports,10/100 Mb Ethernet.

LAN Ethernet

up to 4 ports,10/100 Mb Ethernet.

Field interface Up to 10 USB 2.0 connections, female connector 2.0.
SD Card reader YES, for Cosy commissioning (firmware upgrade, backup, Talk2M registration).
Router

IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server.

Internet

Outbound connection for Talk2M using HTTPS (port 443 or UDP 1194).

VPN Tunneling OpenVPN either in SSL UDP or HTTPS.
Talk2M

Talk2M Free+ or TalK2M Pro, natively supported.

VPN Security Communications between the remote user and the Ewon are fully encrypted using the SSL/TLS protocol, thereby ensuring data authenticity, integrity & confidentiality. All users and Ewon units are authenticated using x509 SSL certificates and end-to-end traffic is encrypted using strong symmetric & asymmetric algorithms that are part of the SSL/TLS protocol cipher suite.
Synchronization Embedded real-time clock, manual setup via http or automatic via NTP.
File Management FTP server for configuration, firmware update.
Web-based configuration Embedded web interface with setup wizards for configuration and maintenance (no additional software needed). Basic authentication (login/password) and session control for security.
Mechanicals Dimensions: 108,80 x 99 x 43,60 mm (H x D x W).
DIN rail or wall screw fixing system.
Weight

205 gr.

Power supply 12-24 VDC +/-20%, LPS.
Extended Temperature Range Operating: -25°C to +60°C, 10 to 95% relative humidity (non-condensing).
Storage: -40°C to +70°C, 10 to 95% relative humidity (non-condensing).
Hardware 1xDO: open drain ( MOSFET) 200mA; isolation 1.5kV,
2xDI: 0 to 24VDC; 1.5 kV isolation.
Marking CE, cULus, FCC.
Warranty 36 months
Type tests

Temperature - Operating & Storage tested according to:

IEC 60068-2-1 Cold test
IEC 60068-2-2 Dry heat test
IEC 60068-2-14 Change of temperature
IEC 60068-2-30 Cyclic damp heat test

Vibration & shocks tested according to:

IEC 60068-2-27 Bumps
IEC 60068-2-64 Vibration (broad-band random)
IEC 60068-2-6 Vibration (sinusoidal)

CE

Compliant with:

EMC directive 2014/30/EU (Immunity: industrial level)
ROHS2 2011/65/EU directive with amendment 2015/863
REACH regulation

FCC/IC This product complies with the Part 15 of the FCC rules.
Japan

This device complies with Japanese regulations.

Other

South Korea KC, Russia FSS notification

Safety

The product fulfils the requirements of:

EN 62368-1:2014 + A11:2017
UL 62368-1 Second Edition
CAN/CSA C22.2 No. 62368-1-14 Second Edition
EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013
