The Ewon Flexy family is a range of industrial modular gateways that allows universal communication with varied field equipment regardless of the protocol used.
It is possible to configure data acquisition & data logging, routing and more.

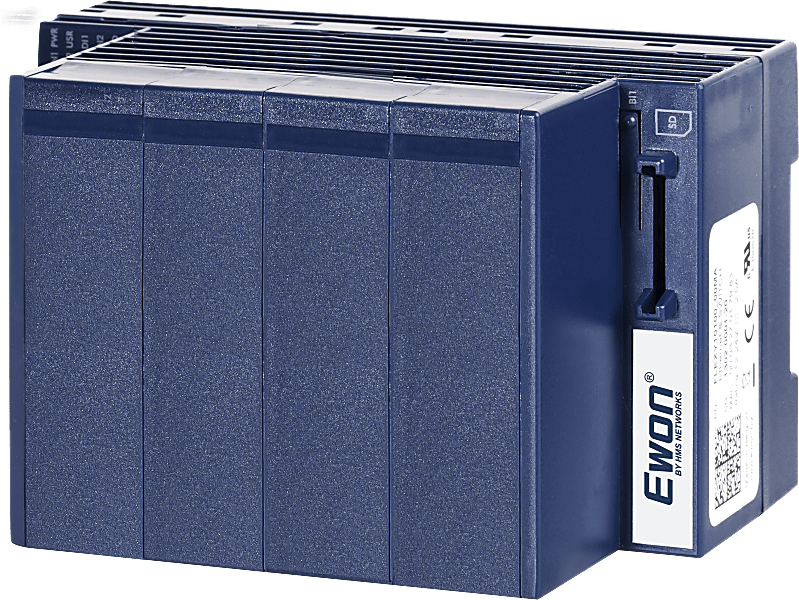

The Ewon Flexy 202 is an Ewon gateway based on a serial port.
ON-DEMAND REMOTE ACCESS, IT APPROVED |
VPN Remote Access |
LOCAL DATA COLLECTION AND DASHBOARDS | All major PLC protocols for data logging and alarm notification Local web-dashboard for remote monitoring OPC UA server to publish data to factory systems |
CENTRAL DATA COLLECTION THROUGH THE INTERNET | Full flexibility to send data to any server (local or cloud) Out of the box solutions with HMS Solution Partners MQTT or HTTPS using embedded BASIC or Java Virtual Machine |
Rockwell Automation/Allen Bradley | SLC5/500 Series Micro/Compact/Control Logix Series Micro Series |
Siemens | S5 Series* S7-200/300/400/1200/1500** Logo |
Schneider Electric | TSX Series M Series (M258, M340,...) Twido Series |
Mitsubishi | iQ/FX5 Series Q series L Series FX3 series |
VIPA | Speed 7 series |
OMRON | C, CJ, CP, CS Series N Series |
HITACHI | EH Series |
Generic Modbus TCP/RTU | Any Modbus TCP/RTU Slaves (Beckoff, Crouzet, ABB, Delta,...) |
Generic OPCUA | Any OPCUA Servers (B&R, Beijer, Beckoff,...) |
Generic BACNET IP | Any BACNET IP Servers |
Generic SNMP | Any SNMP v1 servers |
* polling only, no remote access
** remote access to safety PLC devices (-F series) is not supported
Routing |
Routing capability between LAN and WAN Ethernet interface and Ethernet to serial gateway. |
Ethernet to Serial Gateways |
MODBUS TCP to MODBUS RTU, XIP to UNITELWAY, EtherNet/IP&trade, to DF1, FINS TCP to FINS Hostlink, ISO TCP to PPI, MPI (S7) or PROFIBUS (S7), VCOM to ASCII. (Applicable to the serie 200) |
Data Acquisition Protocols | OPC UA, MODBUS/RTU, MODBUS/TCP, Unitelway, DF1, PPI, MPI (S7), PROFIBUS (S7), FINS Hostlink, FINS TCP, EtherNet/IP™, ISO TCP, Mitsubishi FX, Mitsubishi Melsec, Hitachi EH, ASCII, BACnet/IP. Stored in 2500 internal tags. |
Data Publishing Protocols | OPC UA, Modbus, MQTT, SNMP, HTTPs. |
Alarms | Alarms notification by email, SMS, FTP put and/or SNMP traps. 4 Thresholds : low, lowlow, high, highhigh + deadband and activation delay. |
Datalogging |
Internal database for data logging (real-time logging and historical logging up to 1,000,000 timestamps). Historical data can be exported to DataMailbox or transferred by FTP or email. |
SD card reader |
A/ for easy commissioning (firmware upgrade, backup, Talk2M registration) B/for Extended User Memory. |
Router |
IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server, NAT 1 :1. (Applicable only to the serie 200) |
VPN Tunnelling |
Open VPN either through UDP 1194 or TCP 443 ( HTTPs port). |
VPN Security | VPN sessions are end-to-end encrypted using SSL/TLS protocol. Communications between the remote user and the eWON are fully encrypted using the SSL/TLS protocol, thereby ensuring data authenticity, integrity & confidentiality. Indeed, all users and eWON units are authenticated using x509 SSL certificates and end-to-end traffic is encrypted using strong symmetric & asymmetric algorithms that are part of the SSL/TLS protocol cipher suite. |
Programmable |
Script interpreter for Basic language, Java 2 Standard Edition environment. |
Synchronization |
Embedded real-time clock, manual setup via http or automatic via NTP. |
File Management | FTP client and server for configuration, firmware update and data transfer. |
Website |
Embedded web interface with setup wizards for configuration and maintenance (no extra software needed). Authentication with login/password and user management capability. Possibility of uploading custom web GUI. Compatible with viewON web HMI. |
User Flash Disk | up to 30MB available for user application. |
Mechanicals | Din Rail Mounting Dimensions: 80 x 89 x 134 mm (H x D x W ); Weight: < 500 g |
Power supply | 12 - 24VDC +/-20%, LPS. Consumption: depending on the extension card installed (see Installation guide on our website). |
Input/output | 2x digital input: 0 to 12/24VDC; 1.5kV isolation. 1x digital output: open drain (MOSFET) 200mA; 1.5 kV isolation. |

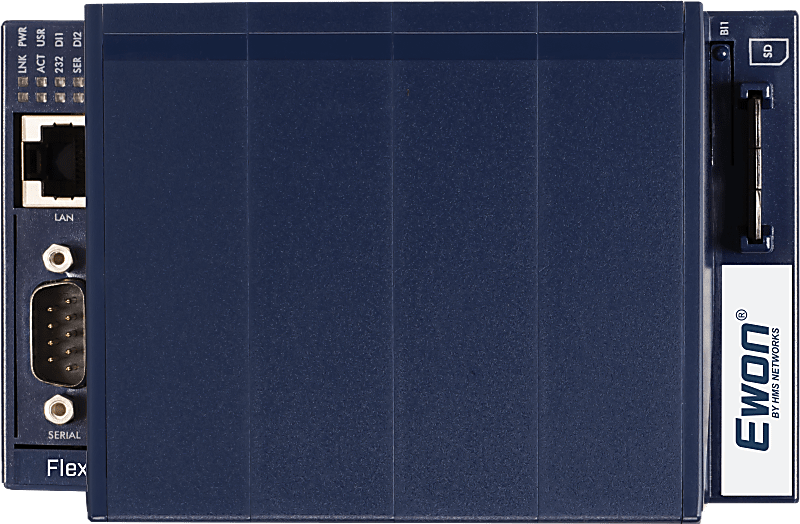

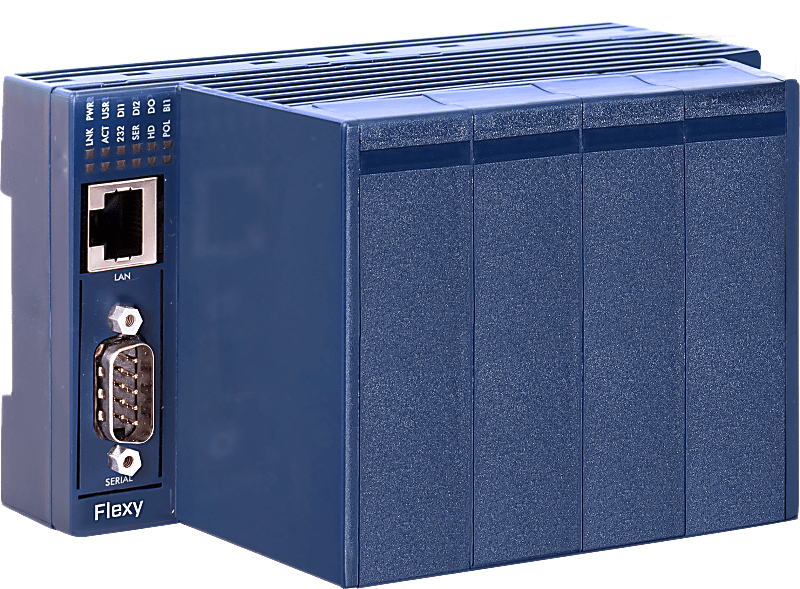

Flexy base module interface | Flexyn02*: 1x RJ45 Ethernet 10/100Mb, 1 x male SUBD9 serial port configurable by software in RS232/485/422, 1.5kV functional isolation from power supply |
Temperature Range | Operating: -25°C to +60°C, 10 to 95% relative humidity (non-condensing). Storage: -40°C to +70°C, 10 to 95% relative humidity (non-condensing). |
Marking | CE, cULus listed, FCC. |
Type tests |
Temperature - Operating & Storage tested according to: IEC 60068-2-1 Cold test Vibration & shocks tested according to: IEC 60068-2-27 Bumps |
CE |
Compliant with: EMC directive 2014/30/EU According to standards: EMC: ITE; emission Class A and Immunity Spectrum: EN301511; EN301908-1; -2 & 13 Health: EN62311 Safety: EN60950-1/ EN62368-1 |
FCC/ICC | This product complies with the Part 15 of the FCC rules |
Japan |
This device complies with Japanese regulations. |
Safety |
Conform to: EN/IEC60950-1:2006+A11:2009+A1:2010+A12 :2011+A2 :2013; |
