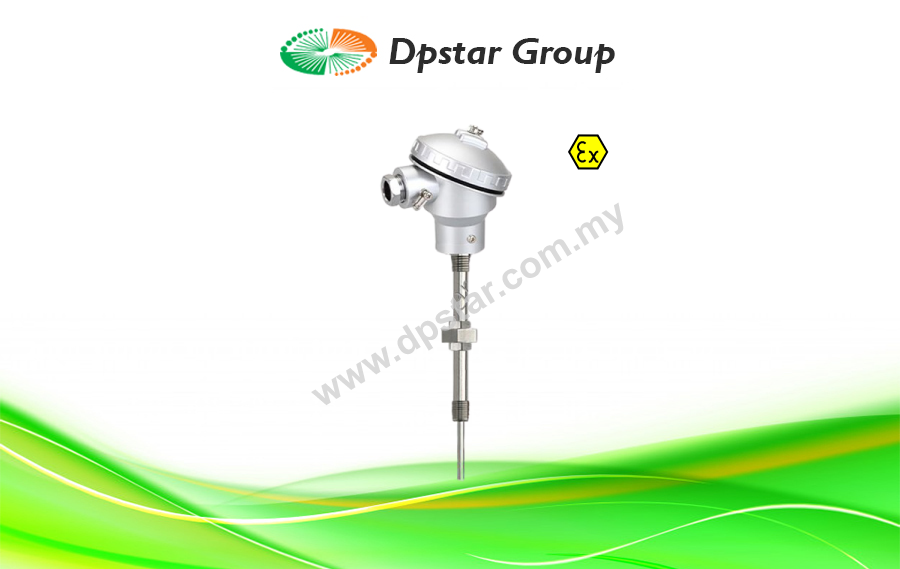

Explosion Proof EEx D Thermocouple For Zone 1 And 2 – Maltec-T TEX30
Aucontech Co Ltd
10 out of
10
Features
- Measure temperatures in explosive gaseous or liquid environments for Zone 1 and 2.
- Temperature sensor range from -200°C to 1600°C depending on the sheath material.
- Thermowell connection by a 1/2″NPT nipple union nipple.
TEX30 Explosion proof EEx d Thermocouple is designed to measure temperatures in explosive gaseous or liquid environments for Zone 1 and 2. Temperature sensor range from -200°C to 1600°C depending on the sheath material. Thermowell connection by a 1/2″NPT nipple union nipple. Aluminium or SS316 Eexd connection head. Cable entry M20x1.5mm or optional 2 entries. Sensor side with flame path fire lock. Replaceable 6mm insert with 10mm spring action. Calibration K,T,J,E,N,R,S or B, single or duplex. Can be delivered with head-mounted transmitter. Insertion length as required.
dpstar Group offers a wide range of standard or customized ATEX or IECEx certified temperature-sensors, single and multipoint for Gas zone 0, 1 and 2 with Exi, Exe and Exd, and Dust for zone 20, 21 and 22 approval. These sensors can be fitted with a integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.
Specification
| CONSTRUCTION | |
| TEX30 | Explosion proof EEx d Thermocouple |
| Suitable for zone | 1 and 2 |
| Ingress protection | IP66 |
| Ambient temp. limits | -20°C…+65°C standard, -40°C…+65°C optional. |
| CONNECTION HEAD | |
| Material | Cast aluminium or SS316 |
| Cable entry | Single M20 x 1,5, two entries optional |
| Cover | Threaded with retaining chain |
| Fire Lock | At process side |
| MEASURING INSERT | |
| Construction | Replaceable, springloaded > 10 mm |
| Diameter | 6.0 mm |
| Type | Mineral insulated |
| THERMOCOUPLE | |
| Calibration | K, T, J, E, R, S, B, U, N |
| For duplex | KK, TT, JJ, EE, RR, SS, BB, UU, NN |
| EXTENSION | |
| Type | Nipple – union – nipple |
| Material | Stainless Steel 316 |
| Style / Connection | 1/2″ NPT male thread |
| Length “X” | Customer Specify |
