Ixxat CAN interfaces
Easy connection to CAN and CAN FD networks!

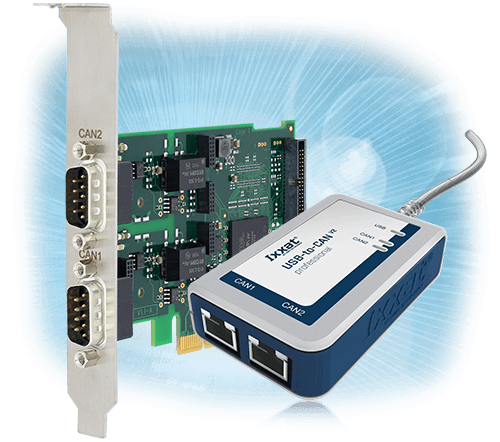

CAN interfaces from HMS allow PC or embedded applications to access CAN networks with a unique variety of different interface standards. You select the interface that suits your application, performance requirements or required unit costs.
Select your CAN interface series:
USB
series
PCIe
series
PCIe Mini
series
PCI
series
PCIe 104 & PC 104
series
PMC
series
Ethernet & Bluetooth
| CAN Interface | Type | On-board µC |
Galv. Isolated |
CAN HS |
CAN LS |
CAN FD |
LIN | Further Options |
| CANnector | Ethernet/USB | ✔ | ✔ | 8 | 4 | 2 | WiFi/EtherCAT | |
| CAN-IB640/PCIe | PCIe | ✔ | ✔ | 1-4 | 1-4 | 1-4 | ||
| CAN-IB600/PCIe | PCIe | ✔ | ✔ | 1-2 | 1-2 | |||
| CAN-IB500/PCIe | PCIe | ✔ | 1 | 1 | ||||
| CAN-IB200/PCIe | PCIe | ✔ | option | 1-4 | 1-4 | 0-4 | Low Profile | |
| CAN-IB100/PCIe | PCIe | option | 1-4 | 1-4 | Low Profile | |||
| CAN-IB520/PCIe Mini | PCIe Mini | ✔ | 1 | 1 | ||||
| CAN-IB120/PCIe Mini | PCIe Mini | option | 1-2 | |||||
| CAN-IB630/PCIe 104 | PCIe 104 | ✔ | ✔ | 2 | 2 | |||
| CAN-IB230/PCIe 104 | PCIe 104 | ✔ | ✔ | 2/4 | 0-1 | 0-1 | ||
| CAN-IB130/PCIe 104 | PCIe 104 | ✔ | 1-2 | |||||
| PC-I 04/104 | PC104 | option | 1-2 | |||||
| CAN-IB810/PMC | PMC | ✔ | ✔ | 2 | 0-2 | 2 | 0-2 | |
| CAN-IB410/PMC | PMC | ✔ | ✔ | 2-4 | 2-4 | 0-2 | ||
| CAN-IB400/PCI | PCI | ✔ | ✔ | 1-4 | 1-4 | 0-4 | ||
| CAN-IB300/PCI | PCI | ✔ | 1-4 | 1-4 | ||||
| USB-to-CAN FD | USB | ✔ | ✔ | 1-2 | 1-2 | 1 | ||
| USB-to-CAN V2 | USB | ✔ | ✔ | 1-2 | 0-1 | 0-1 | ||
| USB-to-CAN V2 Plugin | USB | ✔ | ✔ | 1-2 | 0-1 | 0-1 | ||
| simplyCAN | USB | ✔ | ✔ | 1 | ||||
| CAN@net NT 200/420 | Ethernet | ✔ | ✔ | 2-4 | 0-2 | |||
| CAN@net NT 100 | Ethernet | ✔ | ✔ | 1 | ||||
| CAN@net II/VCI | Ethernet | ✔ | ✔ | 1 | ||||
| CANblue II | Bluetooth | ✔ | ✔ | 1 |
