PROFIBUS Diagnostics and Service Set PROFIBUS DP

The basic equipment for maintenance and service

The PROFIBUS Diagnostics and Service Set SOUVERÄN offers the basic equipment for the areas of maintenance and service to ensure safe plant operation and to realize measures in case of possible faults.

With the tools and measuring devices for PROFIBUS analysis contained in the package, quick detection of potential disturbances and troubleshooting in case of unexpected abnormalities is possible at any time. With the spare parts package you are always able to eliminate often sources of error.

Your advantages with the Diagnostics and Service Set SOUVERÄN

✓  All necessary measuring and diagnostic tools to hand at any time - The PROFIBUS diagnostic set contains all the necessary tools and measuring devices for a targeted and fast PROFIBUS analysis

✓  Tools for different tasks - The diagnostics package provides you with important tools for PROFIBUS maintenance, commissioning, maintenance, service and troubleshooting

✓  Devices for physics & logic in one set - you get logic tester PROFIBUS-INspektor^® NT, PROFIBUS tester PB-Q^ONE (incl. PA adapter), cable tester PROFtest II XL, leakage current measuring pliers EMCheck^® LSMZ I

✓  Fast reaction in case of unexpected events - In the case of failures you can start troubleshooting independently and immediately without wasting time

✓  Independent troubleshooting of frequent sources of interference - With the spare parts package you can eliminate frequent causes of errors without delay, such as weakened PROFIBUS signal or defective PROFIBUS connectors

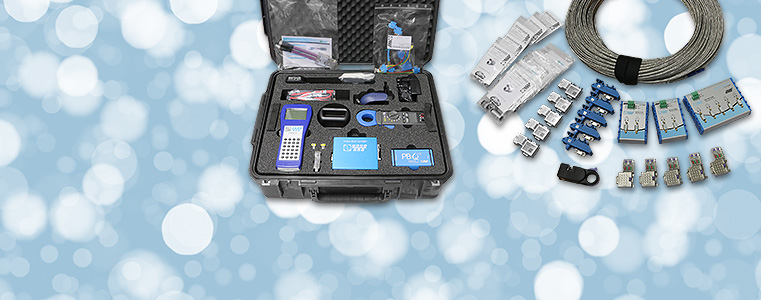

Included in the scope of delivery:

• PROFIBUS Diagnostic Set III included
  • PROFIBUS-INspektor^® NT
  • PROFIBUS-Tester PB-Q^ONE (inkl. PA-Adapter)
  • Line tester PROFtest II XL
  • Leakage current measuring clamp  EMCheck^® LSMZ I
  • different adapters and accessories
• PROFIBUS spare parts package included
  • 2 PROFIBUS-Repeater MULTIrep X2
  • 1 PROFIBUS-Repeater/Hub MULTIrep X5
  • 5 PROFIBUS Diagnostic connector ( PG/Fast Connect)
  • 5 PROFIBUS Measuring point adapter PBMB
  • 5 M12-connector and sockets
  • 15 m PROFIBUS cable Cat.5 +FE flexible
  • 1 Stripping tool
