PROFINET 1000 Mbps IP 20 Connector (180°)

Giá bán: Liên hệ

Mã sản phẩm: 502-02041A

Thương hiệu: PROCENTEC

Tình trạng: Còn hàng

Order code: 502-02041A

Tư vấnhotline0965746247

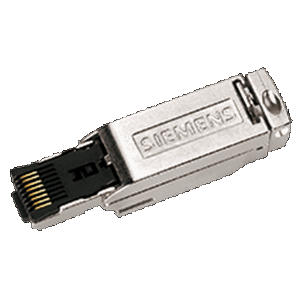

PROFINET 1000 Mbps IP 20 Connector (180°)

Compact and robust 180° Fast Connect connector for 100 / 1000 Mbps PROFINET connectivity in IP 20 environments. Because of its rugged metallic housing it has excellent resistance against noise and connects the cable shielding with the device ground. The Fast Connect system saves time during assembly. This connector can also be used for other Ethernet networks.

Technical specifications

General

  • Connector type: 180° RJ45 plug
  • Terminals: 8-wire + shield for Industrial Ethernet FC cables
  • Fast Connect (FC): Yes
  • Baudrate: 100 / 1000 Mbps - Cat 5e
  • Wire diameter: 24 AWG
  • Cable length: Max. 100 m

Ambient conditions

  • Operating temperature: -20..+70 °C
  • Storage temperature: -40..+80 °C
  • Relative humidity during operation: < 95 %
  • IP 20

Dimentions and Weight

  • Dimensions (WxHxD) : 13,7 x 16 x 55 mm
  • 35 g
