PROFINET IP 20 Connector (180°)
Aucontech Co Ltd
10 out of
10

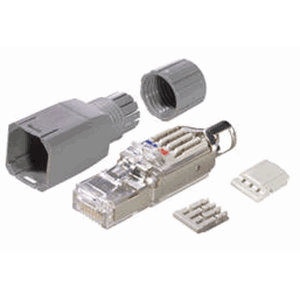

PROFINET IP 20 Connector (180°)
Compact 180° Fast Connect connector for 100 Mbps PROFINET connectivity in IP 20 environments. The eight pin connection can be refitted, is tension and vibration resistant. The connecting block can accommodate shielded cable up to 8 mm diameter. The Fast Connect system saves time during assembly. This connector can also be used for other Ethernet networks.
Technical specifications
General
- Connector type: 180° RJ45 plug
- Terminals: 8-wire + shield for Industrial Ethernet solid and flexible conductors
- Fast Connect (FC): Yes
- Suitable for AWG 22 - 27
- Baudrate: 100 Mbps - Cat 5e
- Cable length: Max. 100 m
- IP 20
