RH505 - One axial wireless vibration and temperature sensor
Aucontech Co Ltd
10 out of
10

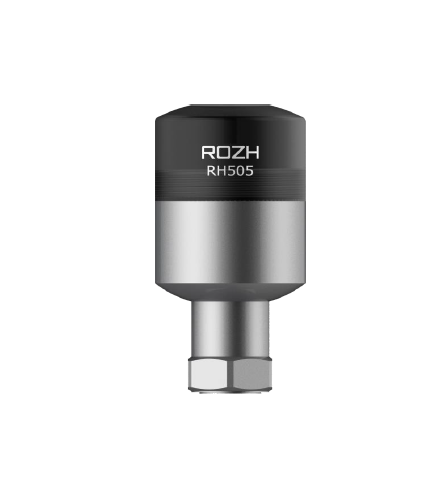

One axial wireless vibration and temperature sensor RH505
|
RH505 Wireless Vibration and Temperature Integrated Sensor |
|
|
Vibration Measurement Parameter |
|
|
Vibration Range |
±50 g |
|
Linearity |
1% |
|
Frequency Range (±3dB ) |
2Hz~20kHz |
|
Sampling frequency |
1280Hz~51.2kHz |
|
Analysis frequency |
500Hz,1kHz,2kHz,5kHz,10kHz,20kHz |
|
Waveform Length |
1K,2K,4K,8K,16K,32K,64K,128K |
|
Lines |
400,800,1600,3200,6400,12800,25600,51200 |
|
Long time waveform |
Maximal length 2M |
|
Temperature Measurement Parameter |
|
|
Temperature Range |
-40～125 ℃ |
|
Temperature Accuracy |
±1 ℃ (-40℃～125℃) |
|
Electrical and Structure Parameter |
|
|
Power Supply |
Lithium-thionyl chloride battery |
|
Communication Method |
2.4GHz IEEE 802.15.4 |
|
Dimension |
46.5 mm × 93.6 mm（diameter × height） |
|
Weight |
188 g |
|
Environment Parameter |
|
|
Working Temperature |
-40～70 ℃ |
|
IP grade |
IP68 |
