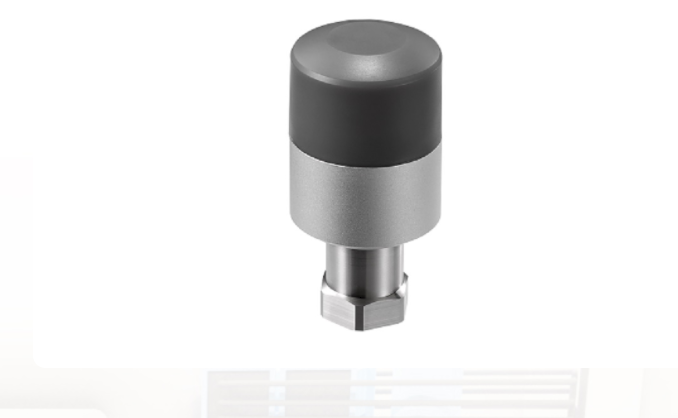

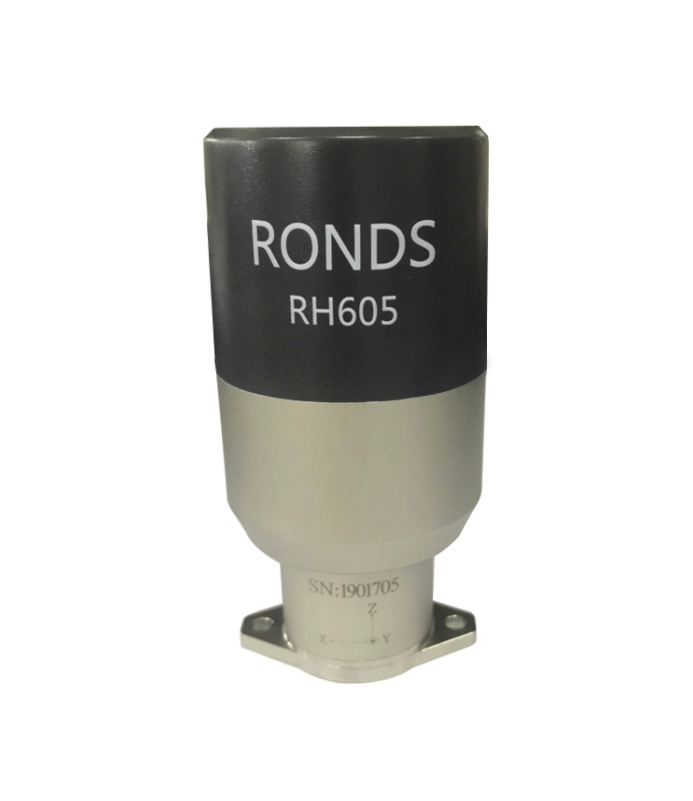

Triaxial RH605 Wireless Vibration and Temperature Integrated Sensor

Vibration Measurement Parameter

Vibration Range

Piezoelectric：±50 g（peak value） MEMS：±16 g (peak value）

Linearity

1%

Frequency Range (±3dB )

Piezoelectric：2Hz-20000Hz（±3 dB） MEMS：2-1000Hz（±3 dB）

Measuring definition acquisition

Piezoelectric direction time waveform length： 1K,2K,4K,8K,16K,32K,64K,128K

MEMS     direction     time     waveform     length   ：

1K,2K,4K,8K,16K

Analysis frequency

Piezoelectric： 500Hz,1000Hz,2000Hz,5000Hz,10000Hz,20000Hz

MEMS：500Hz,1000Hz

Long time waveform acquisition

Piezoelectric direction time waveform length： 256K,512K,1M,2M

Analysis frequency：5000HZ,10000HZ,20000HZ

Temperature Measurement Parameter

Temperature Range

-40～125 ℃

Temperature Accuracy

±1 ℃ (-40℃～125℃)

Electrical and Structure Parameter

Power Supply

Lithium-thionyl chloride battery

Communication Method

2.4GHz IEEE 802.15.4

Dimension

46.5 mm × 93.6 mm（diameter × height）

Weight

210 g

Environment Parameter

Working Temperature

-40～70 ℃

IP grade

IP68
