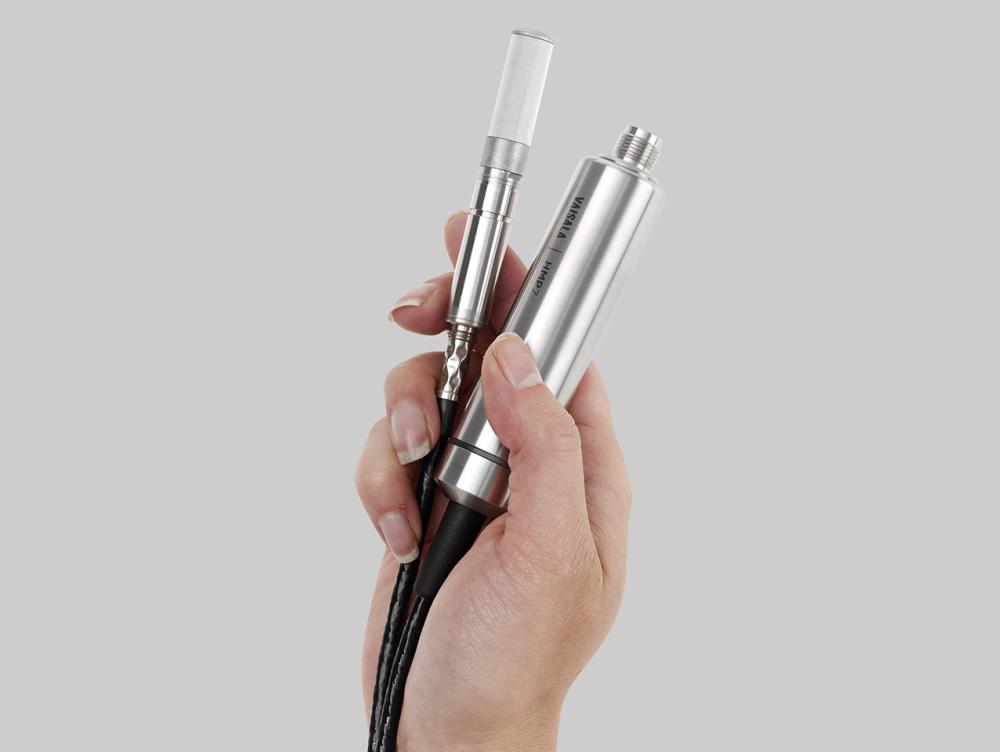

Vaisala HUMICAP Humidity and Temperature Probe HMP7 is designed for applications which involve constant high humidity or rapid changes in humidity such as drying and test chambers, combustion air and other humidifiers, and meteorological measurements where measurement performance and chemical tolerance are essential. The HMP7 is part of the Indigo product family and compatible with Indigo500 and Indigo200 series transmitters and free Insight PC Software.
Proven Vaisala HUMICAP performance
Vaisala is the original innovator of the thin-film capacitive humidity measurement technology, which has now become the industry standard in humidity measurement.
No condensation at extreme humidity
Probe heating functionality heats up the whole probe head. When probe temperature is heated above dew point temperature, condensation on the probe can be avoided.
The probe is plug and play compatible with Vaisala Indigo series transmitters, can be used as a standalone digital Modbus RTU transmitter, or connected to Vaisala Insight™ PC Software.
|Measurement range||0 … 100 %RH|
|Accuracy at +23 °C (+73.4 °F) 1)||±0.8 %RH (0 … 90 %RH)|
|Factory calibration uncertainty 2)||±0.5 %RH (0 … 40 %RH)
±0.8 %RH (40 … 95 %RH)
|T63 response time||15 s|
|Sensor options||HUMICAP R2
HUMICAP R2C 3)
HUMICAP 180VC 3) 4)
|Measurement range||−70 … +180 °C (−94 … +356 °F)|
|Accuracy at +23 °C (+73.4 °F) 1)||±0.1 °C (±0.18 °F)|
|Factory calibration uncertainty 2)||±0.1 °C (±0.18 °F) at +23 °C (+73.4 °F)|
|Sensor||Pt100 RTD Class F0.1 IEC 60751|
|1) Defined against calibration reference. Including non-linearity, hysteresis, and repeatability.
2) Defined as ±2 standard deviation limits. Small variations possible; see calibration certificate.
3) Chemical purge feature available with this sensor.
4) H2O2 resistant. With HUMICAP 180VC sensor, accuracy is not specified below −20 °C (−4 °F) operating temperature.
|Operating temperature of probe body||−40 … +80 °C (−40 … +176 °F)|
|Operating temperature of probe head||−70 … +180 °C (−94 … +356 °F)|
|Operational pressure||< 10 bar|
|Operating environment||Suitable for outdoor use|
|Measurement environment||For air, nitrogen, hydrogen, argon, helium, oxygen, and vacuum 1)|
|IP rating of probe body||IP66|
|1) Consult Vaisala if other chemicals are present. Consider safety regulations with flammable gases.|
|Inputs & Outputs|
|Operating voltage||18 … 30 V DC|
|Current consumption||10 mA typical, 500 mA max|
|Digital output||RS-485, non-isolated|
|Absolute humidity (g/m3)||Relative humidity (%RH)|
|Absolute humidity at NTP (g/m3)||Relative humidity (dew/frost) (%RH)|
|Dew point temperature (°C)||Temperature (°C)|
|Dew/frost point temperature (°C)||Water concentration (ppmv)|
|Dew/frost point temperature at 1 atm (°C)||Water concentration (wet basis) (vol %)|
|Dew point temperature at 1 atm (°C)||Water mass fraction (ppmw)|
|Dew point temperature difference (°C)||Water vapor pressure (hPa)|
|Enthalpy (kJ/kg)||Water vapor saturation pressure (hPa)|
|Mixing ratio (g/kg)||Wet-bulb temperature (°C)|
|EU directives||EMC Directive (2014/30/EU)
RoHS Directive (2011/65/EU)
|EMC compatibility||EN 61326 1, industrial environment|
|Type approvals||DNV GL certificate no. TAA00002YT|
|Compliance marks||CE, China RoHS, RCM, WEEE|
|Connector||M12 5-pin A-coded male|
|Weight||310 g (10.9 oz)|
|Probe body||AISI 316L|
|Duct installation kit for RH probe||210697|
|Solar radiation shield DTR502B||DTR502B|
|Cable gland M20×1.5 with split seal||HMP247CG|
|Swagelok for 12 mm probe, 1/2″ ISO thread||SWG12ISO12|
|Swagelok for 12 mm probe, 3/8″ ISO thread||SWG12ISO38|
|Swagelok for 12 mm probe, 1/2″ NPT thread||SWG12NPT12|
|Indigo USB adapter 1)||USB2|
|1) Vaisala Insight software for Windows available at www.vaisala.com/insight.|
