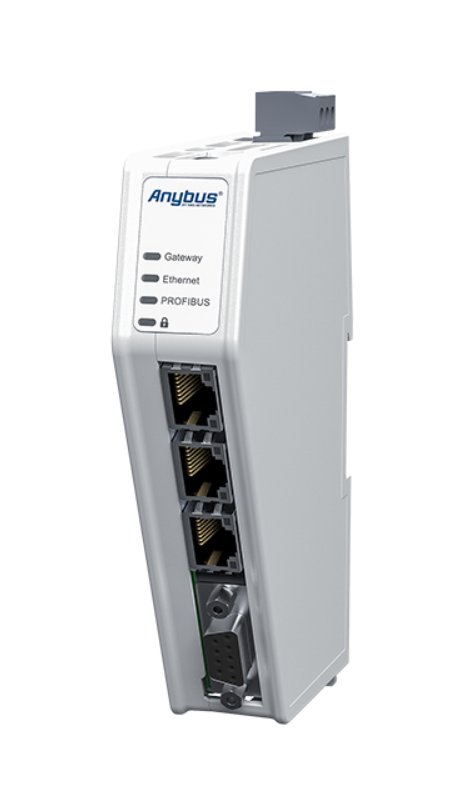

ABC4091-A - Anybus Communicator - Common Ethernet slave - PROFIBUS slave

Giá bán: Liên hệ

Mã sản phẩm: ABC4091-A

Thương hiệu: Anybus - HMS Industrial Networks

Tình trạng: Còn hàng

The Anybus Communicator Common Ethernet - PROFIBUS slave device is an industrial protocol gateway that allows you to seamlessly transfer data between PLC control systems over an Ethernet/IP, Modbus TCP, or PROFINET network and a PROFIBUS network. The Ethernet interface is pre-loaded for Modbus TCP networks but by updating the firmware...

Tư vấn hotline

0965746247

Trong 1 - 2 Giờ làm việc không bao gồm chủ nhật và ngày lễ

Đổi trả sản phẩm trong vòng 7 ngày nếu có lỗi từ nhà sản xuất

Hotline tư vấn0379 447 488

Anybus Communicators are designed to ensure reliable, secure, and high-speed data transfer between different industrial Ethernet and Fieldbus networks. Very easy to install and deploy, the stand-alone gateways enable transparent data exchange between PLCs, allowing you to integrate legacy equipment into modern, high-performance networks without any changes to the hardware and only minimal changes to the software.

Anybus Communicators are built using the award-winning and proven Anybus NP40 industrial network processor providing network conformance, high performance, and reliability. When connecting between PLCs on different networks, extremely fast data cycling is enabled with data transfer of up to 1500 bytes in each direction, meeting most current control application needs as well as supporting future demands.

Quick installation is ensured thanks to the intuitive configuration, easy-to-understand documentation, and smart hardware and housing design.

Excellent performance

Instant data transfer - The time it takes to transfer data between two PLCs consists of the cycle time on the first network plus the cycle time on the second network. Internal data transfer in the Communicators is negligible as it’s in line with the natural variation of the network cycle times (jitter).
Hardware-accelerated endian conversion (byte swap) - The Communicators can change the data representation (endianness) through a hardware-accelerated endian conversion to ensure data is presented correctly in each PLC. You can even convert different parts of the data area in different ways to handle different data types. It has no impact on performance, offloads the PLC of the data conversion task, and simplifies PLC programming.

Easy to Use

Dedicated ethernet configuration port - no special cables required.
Intuitive web-based drag and drop configuration interface - no need to install any additional software.
Forward-facing ports make it easy to connect cables and the slim form factor saves space on the DIN rail.
Troubleshoot problems with powerful diagnostics including live data monitor, status screen, and support package.

Latest Security Features

Secure boot functionality to detect tampering with firmware and resist attacks and infection from malware.
Security switch which locks your configuration and prevents any unauthorized access.
The ports used in production have been disabled to prevent malware from being loaded via the ports.

Designed for industrial environments

Robust compact housing.
Industrial components are tested and certified according to CE and UL.
Wide temperate range, -25°C to 70°C.
DIN-rail mounting to enable installation close to connected devices, reducing the amount of wiring.

Common Ethernet - PROFIBUS

COMMON ETHERNET FEATURES

Cover multiple protocols with a single gateway and reduce storage costs
Supports EtherNet/IP adapter, EtherCAT slave, Modbus TCP server or PROFIENT IO device (PROFINET IO device – EtherNet/IP adapter pre-loaded)
Transfer 1 448 bytes with EtherNet/IP, 1486 bytes with EtherCAT, 1 500 bytes with Modbus TCP and 1 024 bytes with PROFINET to and from the gateway
Download your protocol firmware from the product support page (free)
Load your protocol firmware via the gateway web-configuration interface
Dual RJ45 Ethernet ports with 10/100 Mbit full duplex
Daisy chaining with integrated switch

PROFIBUS DP DEVICE FEATURES

PROFIBUS DPV1 & DPV0 Device (slave)
Transfer up to 244 bytes to and from PROFIBUS (488 bytes total)
Automatic baud rate detection up to 12 Mbit/s
PROFIBUS slave address setting via onboard rotary switches or web interface
Supports Sync and Freeze and Watchdog
Supports I&M 0-3
1x D-sub 9-pin female PROFIBUS connector
GSD file available

GENERAL

Dimensions (L x W x H) with serial and power connector	98 x 27 x 144 mm 3.85 x 1.06 x 5,67 in
Weight	150 grams, 0.33 lb
Buttons and switches	Reset button and security switch
LEDs	Gateway, Network 1 & Network 2
IP rating	IP20
Housing material	PC ABS, UL 94 VO
Mounting	DIN rail (35 * 7,5/15)

ENVIRONMENT

Operating temperature	-25 to 70° C, -13 to 158° F
Storage temperature	-40 to 85° C, -40 to 185° F
Relative humidity	0-95% non condensing
Installation altitude	Up to 2 000 m

POWER

Input voltage	12 - 30 VDC
Current consumption	Typical: 160 mA @ 24V Max: 400 mA @ 12V
Power connector	3-pin plug with screw terminal
Protection	Reverse voltage protection and short circuit protection

ETHERNET PORTS

Ports	2+2 x Ethernet
Isolation	Galvanic isolation
Bitrate	10/100 Mbit full duplex
Connector	RJ45
Switch.	Dual port cut-through switch

PROFINET

Mode	PROFINET IO-Device (slave)
Class	A, B
Communication channels	Real Time Channel (RT)
Input data size	1 024 bytes
Output data size	1 024 bytes
Minimum cycle time	1 ms
Max number of connections	1 IO Controller Application Relationship + 2 Device Access Application Relationships
Netload class	Class III
I&M records	Manufacturer data (I&M0), Tag information (I&M1), Date/Time (I&M2), Description (I&M3)
SNMP	Available
GSDML File	Available
Certification	Pending

ETHERNET/IP

Mode	Adapter (slave)
Messages	Implicit and explicit
Max no of scanner connections	1 input/output (exclusive owner) 3 listen only or input only
Input data size	1 448 bytes (with large forward open)
Output data size	1 448 bytes (with large forward open)
Network redundancy	Device Level Ring (DLR), beacon-based
Quick connect	Class B
Certification	Pending
Minimum cycle time	1 ms for class 1 connections, 100 ms for class 3 connections
EDS File	Available

ETHERCAT

Mode	EtherCAT slave according to IEC 61158 Type 12 (ETG.1000)
Addressing modes	Logical, node, and position
Synchronization modes	Free run
Input data size	1 486 bytes
Output data size	1 486 bytes
Network redundancy	Device Level Ring (DLR), beacon-based
Minimum cycle time	100 μs
Features	Supports CANopen over EtherCAT (CoE)
ESI File	Available

MODBUS TCP

Mode	Server
Max number of connections	4
Input data size	1 500 bytes
Output data size	1 500 bytes

PROFIBUS

Mode	PROFIBUS DPV1 Device (slave)
Input data size	244 bytes
Output data size	244 bytes
Baude rate	Automatic baud rate detection up to 12 Mbit/s
Rotary switches	PROFIBUS slave address setting via onboard rotary switches or web interface
Features	Supports Sync and Freeze and Watchdog
I&M records	Manufacturer data (I&M0), Tag information (I&M1), Date/Time (I&M2), Description (I&M3)
Connector	1x D-sub 9-pin female PROFIBUS connector
GSD	GSD file available

CERTIFICATIONS AND STANDARDS

UL	_CUL_USfile number E214107
CE	2014/30/EU
KC	R-R-ABJ-Communicator
EMC	EN 61000-6-2 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 55032
Environment	IEC 60068-2-1 Ab IEC 60068-2-2 Bb IEC 60068-2-1 Ab IEC 60068-2-2 Bb IEC 60068-2-14 Nb IEC 60068-2-30 Db IEC 60068-2-78 Cab IEC 60068-2-78 Cab
Vibration and shock	IEC 60068-2-27 IEC 60068-2-6
Waste certification	WEE

CONFIGURATION

Configuration software	Web based configuration
Configuration ports	Dedicated 10/100 Mbit RJ45 Ethernet configuration port and Ethernet ports

SECURITY

Secure boot	Ensures software authenticity
Security switch	Physical switch that enable/disable access to the web based configuration interface

PRODUCT PACKAGING

Content	Gateway, power connector, start-up guide, compliance information sheet
Box material	Cardboard

MEAN TIME BETWEEN FAILURE

MTBF

> 1500000 h, Telcordia Method I Case 3 at 30° C
