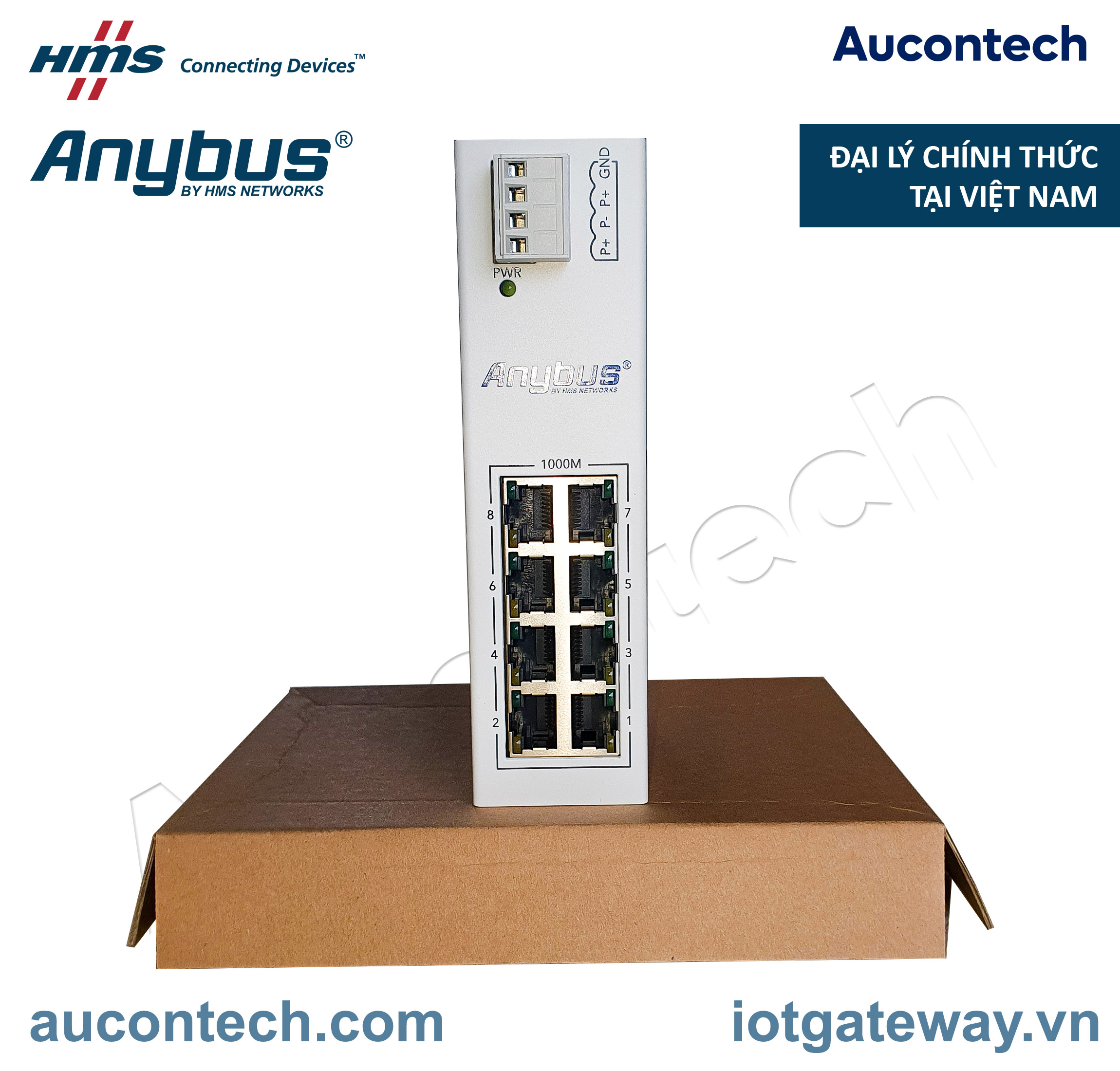

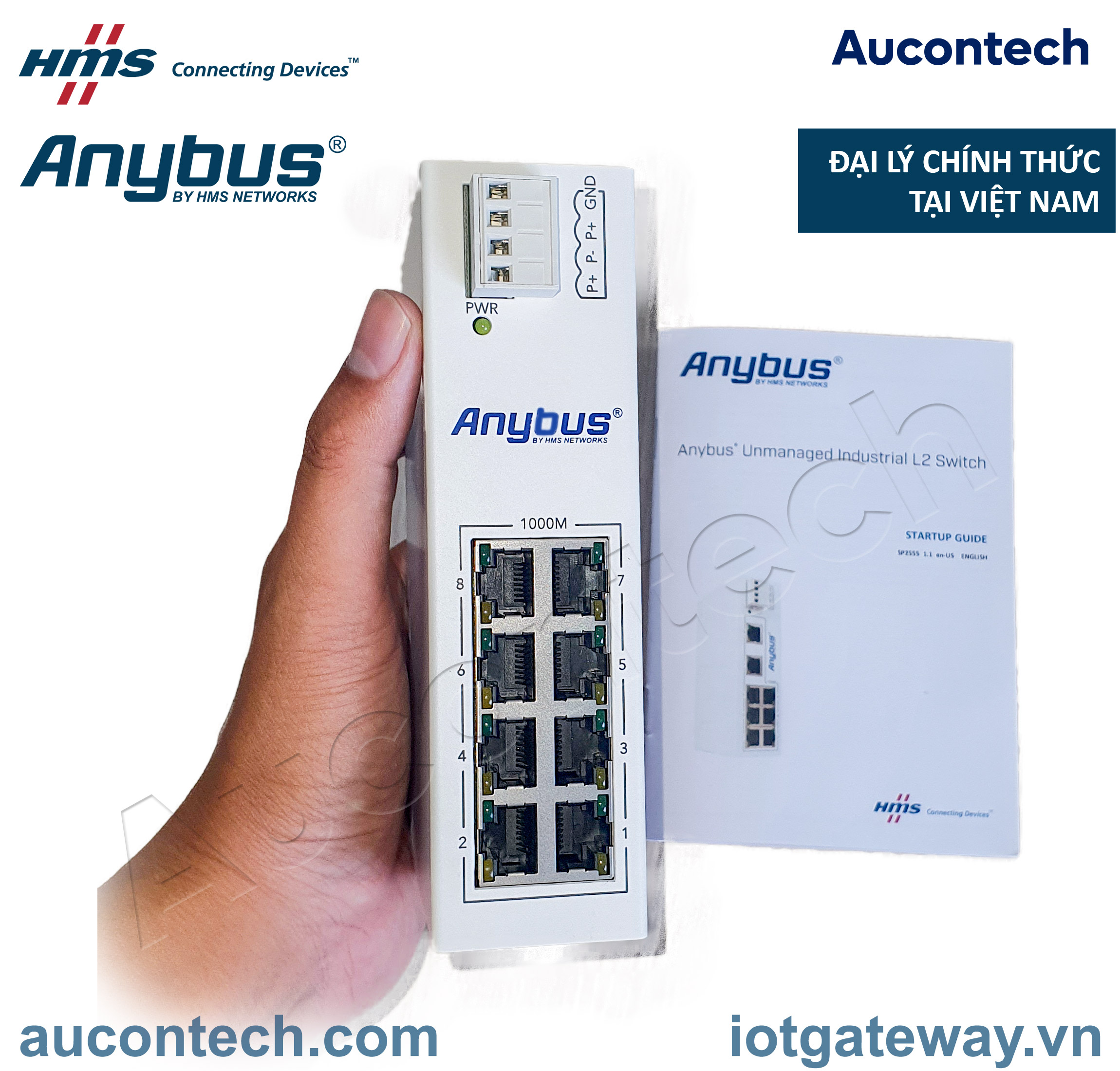

Anybus Wireless unmanaged L2 Switch for Industrial Applications
The Anybus L2 Switch provide full Gigabit and ultra-high throughput.
Support for dual power supplies ensures uninterupted operations.
FULL GIGABIT SWITCHING
- 8 port Gigabit Ethernet with Auto Negotiation
- 4k MAC address table
- Supports 9 kB Jumbo Frame
- IEEE 802.1p QoS/802.1Q VLAN
- Broadcast storm protection
- Store and forward with non-blocking switch fabric
IEEE 802.AZ EEE POWER MANAGEMENT
- Ultra-low power consumption, max 2.6W
- Energy efficient with idle power saving mode
- Support for dual power supplies
RUGGED MECHANICAL DESIGN
- IP40 ingress protection
- DIN-rail mount
- Wide operating temperature range, -40 to 70°C
|
Ethernet ports |
8 x 1 Gbit/s RJ45, auto negotiation |
|
Operating temp. |
-40oC-70oC, 5-95 % non-condensing |
|
Data speeds |
1000Base-TX 100Base-TX 10Base-T |
|
Power |
12/24/48 VDC (9.6-60 VDC) Support for dual power supplies |
|
Weight |
560 g |
|
Housing material |
Steel |
|
Ingress protection |
IP40 |
|
Dimensions |
145 x 100 x 40 mm (without DIN rail clip) |
|
Mounting |
DIN rail mount (bracket included) |
CERTIFICATE
Europe
North America
CE
FCC
Ordering Information
ORDER CODE: AWB5001
INCLUDED COMPONENTS:
1 x DIN-rail mounting bracket.
WARRANTY: 1 years
