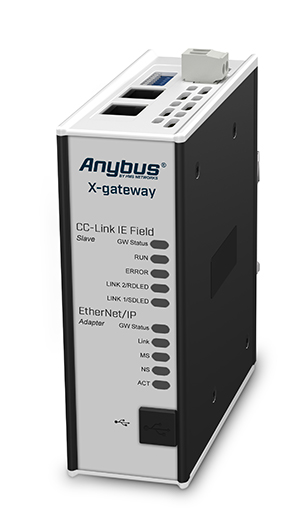

Anybus X-gateway – CC-Link IE Field Slave - EtherNet/IP Adapter - AB7956
The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between CC-Link IE Field and EtherNet/IP networks.
FAST COPYING OF I/O DATA
The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Slave/Adapter on both networks. The data transmission is completely transparent with a maximum data capacity of 512 bytes in each direction.
EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.
Support Pages Features and benefits
Fast copying of cyclic I/O data between the two networks (10-15 ms)
Proven and tested with all PLC manufacturers
Supports up to a maximum of 512 bytes of Input and Output data in each direction
Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
Optional control status information added to I/O data for diagnostic purposes
Robust stand-alone housing for use in harsh industrial environments
Global free technical support and consultancy CC-Link IE Field interface
CC-Link IE Field Slave settings can be made either via on-board switches, or by importing the provided .CSP file into engineering tool of the controlling PLC.
CC-Link IE Field interface of the X-gateway is conformance tested and approved by CLPA
CC-Link Specification (Profile), publication BAP-05028-B
Acts as a CC-Link IE Field Network Intelligent Device Station
Max 512 bytes Input and 512 bytes I/O data
On CC-Link IE Field: Max of 832 I/O points and 204 words Input and 832 I/O points and 204 words Output
Baudrate 1 Gbit/s fixed operation
TCP/IP settings configurable with web-page, Configuration Tool, DHCP or ARP
CC-Link IE Field station setting via on-board switches
2x RJ-45 ports available simultaneously EtherNet/IP Adapter/Slave interface
EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.
EtherNet/IP CONFORMANCE TESTED™ by ODVA
EtherNet/IP Level 2 I/O Server CIP
10/100Mbit operation in full or half-duplex
Max. 509 bytes Input and 505 bytes Output data
Device Level Ring (DLR) functionality available (announce-based ring participant)
Integrated FTP server provides easy file management using standard FTP clients.
Web server with dynamic data capability and Server Side Include (SSI) capability
Email client with dynamic data capability and Event-triggered email handling
Per-user security framework
Quality of Service (QoS) available
TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)
Integrated switch allowing for a daisy-chain topology
2x RJ-45 EtherNet/IP ports available simultaneously TECHNICAL SPECIFICATIONS
Dimensions (L•W•H) 114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
Weight 400g or 0,880 lbs
Operating temperature -25 to +65 °C or -13 to +149 °F
Storage temperature -40 to +85 °C or -40 to +185 °F
Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
Current consumption max. 400mA (Typical 200mA)
Enclosure material Aluminium and plastic
Installation position Vertical / Flat*
Galvanic isolation YES, on both BUS/Ethernet side
Mechanical rating IP20, NEMA rating 1
Mounting DIN-rail (EN 50022 standard)
I/O configuration via USB port with Anybus Configuration Manager software
CUL US, RoHS
Quick start documentation
USB configuration cable
Configuration and Anybus OPC server software is available for download.
