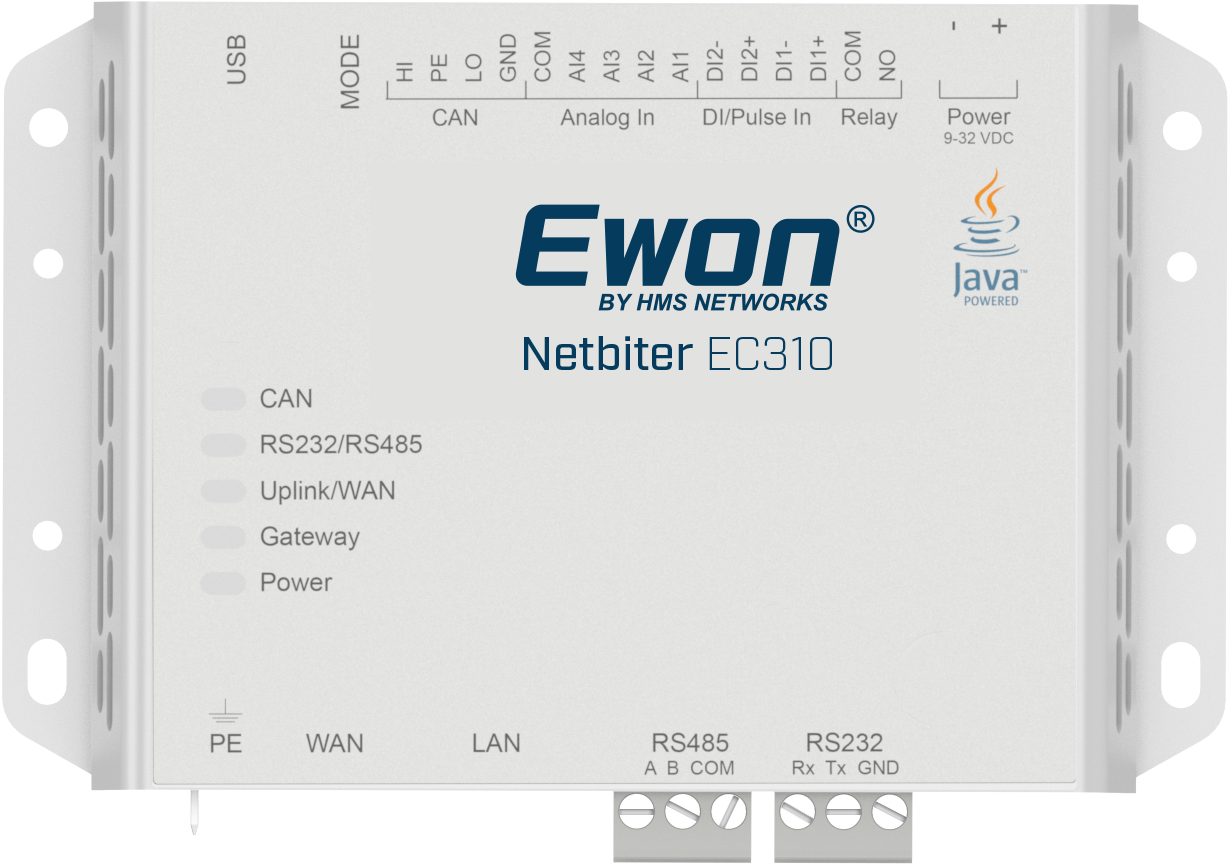

Ewon Netbiter EC310

Communication gateway exchanging data over Ethernet to the Netbiter Argos IIoT platform.

The EC310 communication gateway is the hardware part of the Ewon Netbiter Remote Management solution. The gateway connects to your field equipment and securely exchanges data with the Argos IIoT platform over Ethernet.

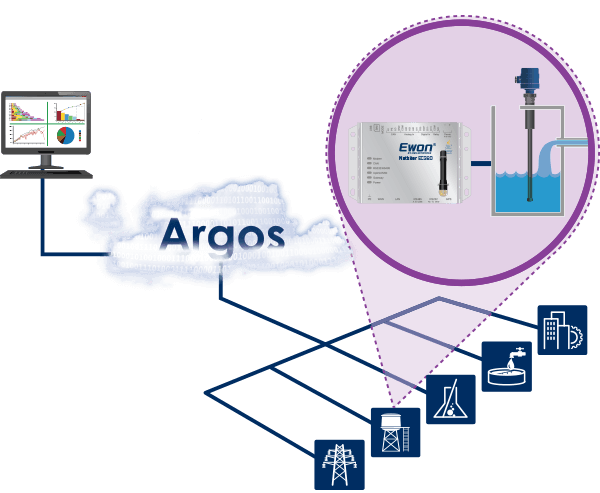

How it works

Connect in minutes and access your data from the cloud

• A Netbiter communication gateway connects to your equipment in the field. The gateway exchanges data via Ethernet with the Netbiter Argos IIoT platform in the cloud.
• Netbiter Argos is a secure cloud-based service that provides a centralized point of deployment, configuration and data presentation.
• The Netbiter Argos services are included with the hardware. The services can be upgraded to provide additional features.

Ewon Netbiter EC310 main features

	FLEXIBLE CONNECTIVITY OPTIONS The EC310 gateway connects to equipment for Power Generators, UPS systems, Water/Wastewater, Building and HVAC systems and much more. The gateway connects to your equipment via Modbus RTU/TCP, SNMP, EtherNet/IP and J1939. In addition, on-board I/Os provides the option to connect sensors and additional equipment directly to the system.
	SECURE CONNECTION The EC310 gateway offers unique technology for secure access to your industrial equipment located behind firewalls without opening ports for incoming traffic. The gateway communicates via Ethernet and eliminates the need for public, fixed IP addresses and third-party VPN tunnels.
	SEPARATE WAN + LAN The EC310 gateway has two separate Ethernet interfaces (WAN and LAN) which makes it possible to provide secure communication to the field installation.
	REMOTE ACCESS MODE Enabling Remote Access mode provides a secure communication tunnel to the serial and Ethernet ports of a Netbiter EC310 gateway and any devices connected to it.  This makes it possible to use PC-based software applications (such as Studio5000, RSLogix, Step7, TIA Portal, Unity PRO, GX Developer and more) to program, configure or debug any machine or industrial PLC, just as if being on site.

Ordering information

Ewon Netbiter EC300 series is available around the world, through selected approved eWON distributors. For contact and purchasing information, please see: WHERE TO BUY

ORDER CODE:  NB1007

Description: EC310 -  Metal Housing

Included components: EC310 gateway, DIN rail mounting kit, Installation guide, Activation information. (Power supply not included)

Warranty: 3 years

INCLUDED ARGOS SERVICES:  View and Control  - One user, One site.

Includes: Monitor and control equipment remotely, Visualization dashboards, templates, profiles, Alarm management, View and download trend data, Create and upload device templates, Google map view, Remote Access mode for Machine/PLC configuration.

OPTIONAL ARGOS SERVICES:  Manage and Analyze - Multiple users, Multiple sites. (Paid subscription)

Includes: All features of View & Control + Report Generator, Single point of access to all systems, User and Project management, API for enterprise integration to third-party IOT solutions (Thingworx, Azure, Predix, IBM Watson, Oracle.. etc)
