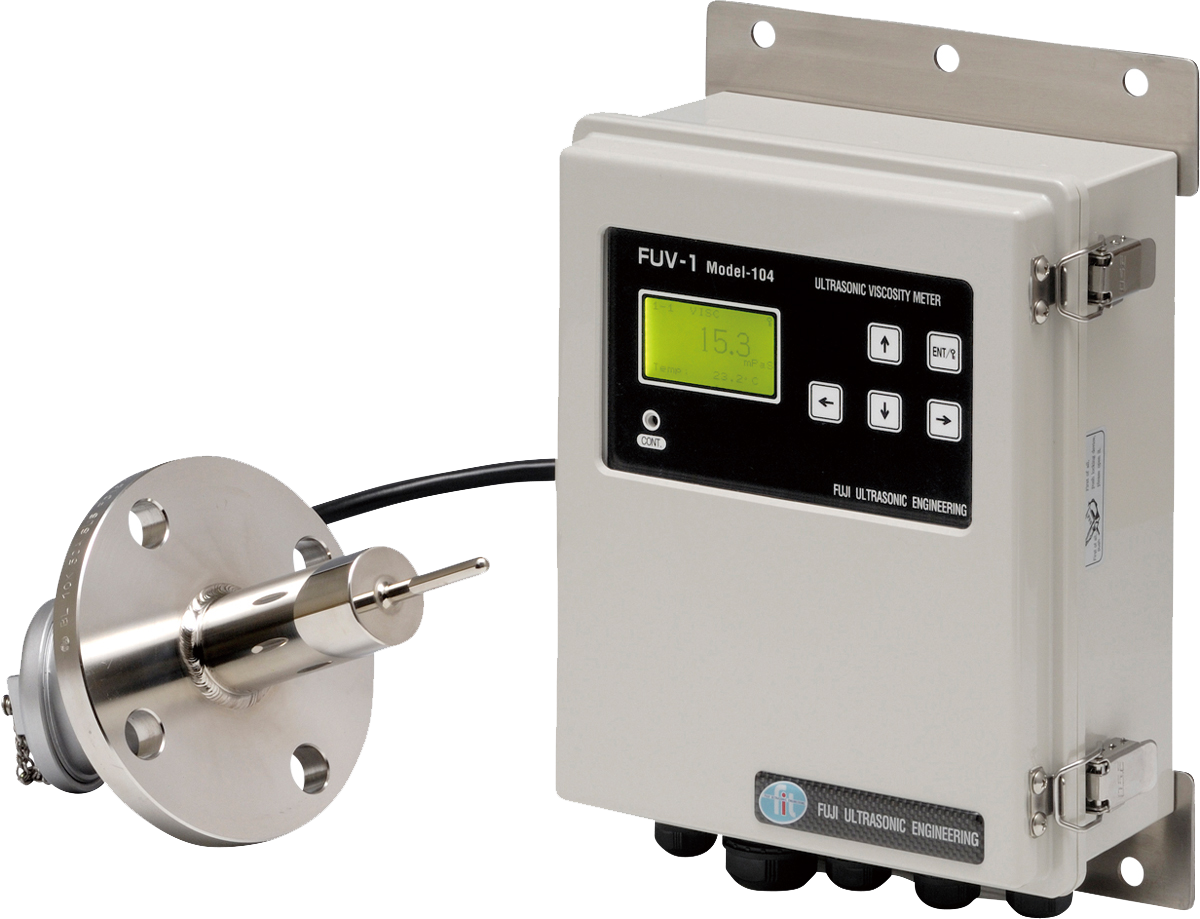

VISCOSITY METER - FUV-1
An in-line viscometer based on ultrasonic torsional vibration. There are no moving parts, and the sensor shape is simple, so maintenance is easy and there are few failures.
An explosion proof version is also available.
DOWNLOAD BROCHURE FREE CONSULTATION
ADVANTAGES
Ultrasonic torsion mode vibration
No moving part design
Simple sensor design
Easy installation
Real time output
Real time measurement with high accuracy
No requirement for periodical parts replacement
Trouble less cleaning
No position limitation & adjustments required at installation
Available for in-line process control
MODELS
FUV-1
Model 104
FUV-1
Model 204 (Explosion proof)
Specifications
| Name | FUV-1 Model-104/Model-204(Explosion Proof Model) | |
| Principle | Ultrasonic torsion mode vibration | |
| Display | LCD (viscosity, temperature, various parameters) | |
| Temp. of liquid | 0 - 100 degree C | |
| Environments | Transmitter : 0 – 50 degree C RH85% or less (No dew condition) Transducer : 0 – 100 degree C |
|
| Output | Analog : DC4 - 20mA (adjustable by viscosity) Digital : RS232C Alarm terminals |
|
| Power | AC100 - 240V 50-60Hz 30VA | |
| Measurement range | Low vis. | 0 - 100mPa・s |
| Middle vis. | 0 - 1000mPa・s | |
| High vis. | 0 - 10000mPa・s | |
| Accuracy | +/-2%F.S. | |
| Function | Average setting, Gain setting | |
| Cable | 10m (standard) Max. 300m (the repeater required) | |
| Explosion proof spec. | Transmitter | ExⅡ BT4 |
| Transducer | ExⅡ CT4 | |
