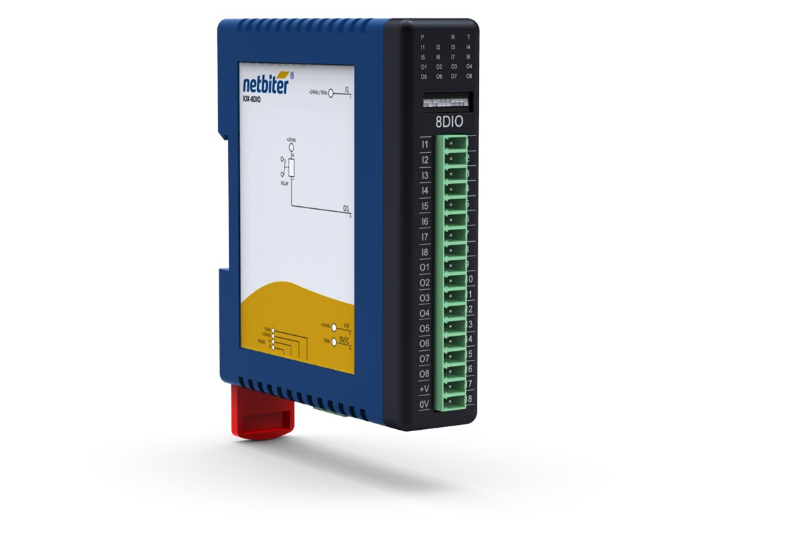

IOX-8DIO - Netbiter I/O Extenders
Aucontech Co Ltd
10 out of
10
Add additonal equipment to your remote management solution
The eWON Netbiter I/O Extender series is a collection of analog and discrete I/O modules with Modbus-RTU protocol communication.
The modules are ideal for a wide variety of distributed I/O applications including data acquisition and control, process monitoring as well as test and measurement.
Designed for industrial applications, the DIN rail mountable Netbiter I/O extenders can be connected in parallel with other Modbus equipment in a multi-drop installation topology.
I/O Extender features
- Modbus RTU Slave with RS-485 communication
- Fully compatible with all eWON Netbiter EC300 & LC300 series for communication over Ethernet, 3G/GSM/GPRS
- Screw terminals for wiring
- LED Indicators
- DIP switches for configuration
- DIN rail mounting
Ordering information
Netbiter I/O extenders are available around the world, through selected approved eWON distributors. Select the relevant I/O extender from the table listed below! For contact and purchasing information:
 |
|
|
|
| ORDER CODE | IOX-DAIO | IOX-8DIO | IOX-4RO |
|---|---|---|---|
| Power supply (isolated) | 12-24 V DC | 12-24 V DC | 24 V DC |
| Operating temperature | -10 °C to +50 °C | -10 °C to +50 °C | -10 °C to +50 °C |
| Dimensions W×H×D | 23 × 109 × 98 mm | 23 × 109 × 98 mm | 23 × 109 × 98 mm |
| Mounting | Din-rail | Din-rail | Din-rail |
| Serial baud rate | 2400 to 115200 | 2400 to 115200 | 2400 to 115200 |
| Connectors | 4/18 Screw connector |
4/18 Screw connector |
4/18 Screw connector |
| Digital inputs | 4 | 8 | - |
| Digital outputs | 2 | 8 | - |
| Relay outputs | - | - | 4 |
| Analog inputs Voltage 0-10 V DC or Current 0(4)-20 mA 12 bit resolution |
2 | - | - |
| Analog output Voltage 0(2)-10 V DC Current 0(4)-20 mA 12 bit resolution |
1 | - | - |
| RTD inputs 2 or 3 wire 100 ppm/°C Typ. drift |
2 | - | - |
| RTD Types | PT100/Ni120/ PT1000/Ni1000/ Resistance |
- | - |
| Counters 32 bits on the digital inputs |
4 | 8 | - |
| Certifications | CE | CE | CE |
| Guarantee | 3 years | 3 years | 3 years |
