PROFIBUS DP Training Device - 101-00221A - Procentec

Giá bán: Liên hệ

Mã sản phẩm: 101-00221A

Thương hiệu: PROCENTEC

Tình trạng: Còn hàng

Order code: 101-00221A

Tư vấnhotline0965746247

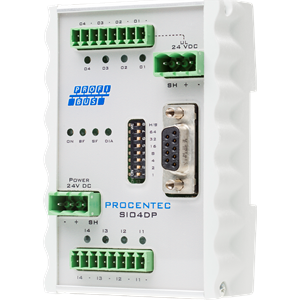

PROFIBUS DP Training Device - 101-00221A - Procentec

The SIO4DP is the first dedicated PROFIBUS training device for educational and testing environments. It allows engineers to practice their skills so they can act appropriately when faults occur. This results in the continuity of the production process, higher uptime and lower operating costs.

Technical specifications

Product features

  • DP-V0, DP-V1 (certification number: Z01831)
  • Ident Number: 6960
  • 9.6 kbps .. 12 Mbps (auto detect)
  • Max. 244 Bytes input and 244 bytes output
  • Software and hardware addressing (0 - 126)
  • DB9 connector
  • Fail safe: Outputs OFF, Outputs ON, Keep last value, Custom failsafe value
  • Simulation input patterns: ON, OFF, Blink, Up counter, Down counter, Zig Zag, Random
  • Diagnostic LEDs
  • Power supply: 12 .. 30 VDC
  • IP 20 classification
  • Operating temperature: 0..60 °C
