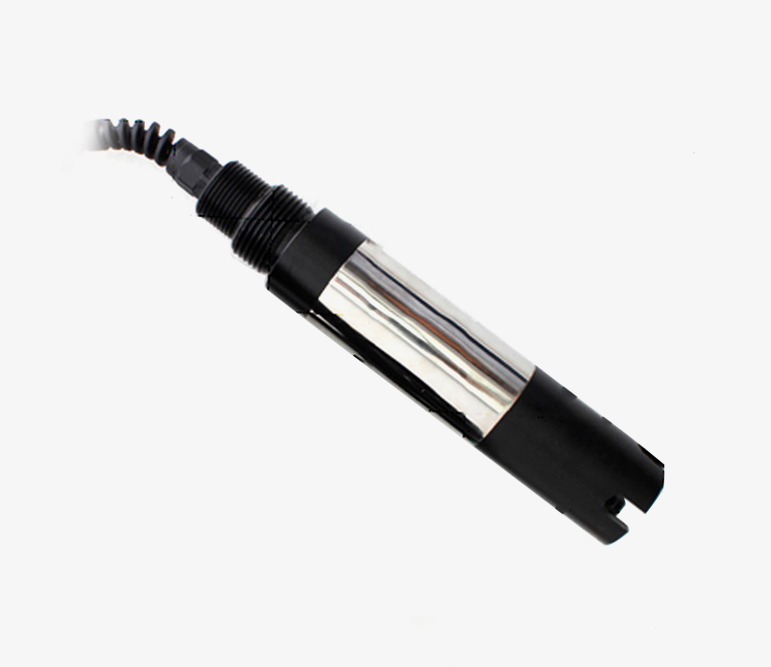

RK500-16 Nitrate ion(NO3-) Sensor
Aucontech Co Ltd
10 out of
10
RK500-16 Nitrate ion(NO3-) Sensor
PRODUCT DESCRIPTION
Fast response.
Excellent stability.
Widely used.
High precision.
High sensitivity.
Simple operation.
SPECIFICATIONS
|
Item |
Technical Specification |
|
|
NO3-(concentration)(2.5-11PH) |
Temperature |
|
|
Range |
0.1-14000ppm |
0-50℃ |
|
Supply |
5VDC,12VDC,24VDC |
|
|
Accuracy |
±1%FS |
±0.3℃ |
|
Resolution |
0.001ppm |
0.1℃ |
|
Output |
RS485 and 4-20mA at the same time |
|
|
Temperature compensation |
0-60℃ |
|
|
Pressure resistance |
0-3bar |
|
|
Power consumption |
<0.4W |
|
|
Operating temperature |
0-+80℃ |
|
|
Probe material |
PC+316L |
|
|
Weight(probe) |
0.5kg |
|
|
Storage |
10-60℃@20%-90%RH |
|
|
Cable length |
5m default,other length optional |
|
| Ingress protection | IP68 | |
DIMENSION
Unit：mm
PRODUCT APPLICATION
Application-1
Application-2
Application-3
Application-4
Agricultural
Greenhouse
