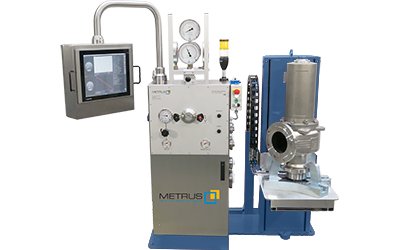

Safety valve test bench for safety valves. Model: SV 36/150 Lift
Aucontech Co Ltd
10 out of
10
Safety valve test bench for safety valves. Model: SV 36/150 Lift
Basic features
- Clamping range: DN10-DN150 1⁄2” – 6”
- Clamping force: 36 to
- Way of clamping: Quick clamping system with proportional clamping force compensation
- Interlock system when valve is under pressure
- Test fluid: Gas/air (external supply)
- Pressure piping: PN 600 bar stainless steel
- Stainless steel control panel
- Bubble counter + rubber plugs up to DN100
- Gauge quick connection for tool free change of gauges (2x)
- METRUS Precision valves
- Electric height adjustment of clamping table from 0 – 1000mm
- Clamping with 3 or 2 clamping claws
Options
- Gauge turret for 4 + 1 gauges
- METRUS CRS – computer registration system
- Backpressure test
- Laser Bubble Counter
- Other options on request
- Test Pressure Table
- Flange
Max. test pressure [bar]
[mm] [inch] bar PSI
DN 10 – 100 1⁄2″-4″ 300 4350
DN 125 5″ 160 2300
DN 150 6″ 115 1650

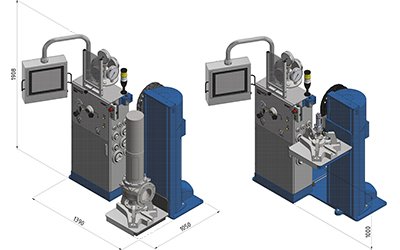

Dimension
Data seet
