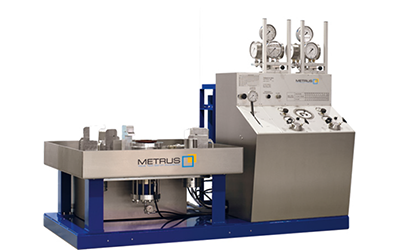

Safety valve test bench for safety valves. Model: SV 50/200 & 400
Aucontech Co Ltd
10 out of
10
Safety valve test bench for safety valves
Basic features
- Clamping: Manual fast clapming system
- Clamping force: 50 to
- Clamping range: DN10-DN400 1/2″-16″
- High pressure air/gas inlet
- Stainless steel control cabinet
- Anodized, acid proof front panel
- Stainless steel tubing PN600
- Gauge quick connection
- METRUS precision needle valves
- Bubble counter (DIN/EN, ASME and API)
Option:
- HP water testing up to 600 bar
- High pressure water up to 1600 bar
- Bladder accumulator for water testing
- Air lock free filling
- Internal HP air/gas booster
- 300 bar air compressor
- Separated test fluids
- Back pressure testing
- Vacuum testing
- Thread adaptors
- Gauge turret
- CRS – Computer Registration System
- Software Free CRS
- Panel PC on swivel arm
- Safety doors
- Safety pressure limitation
- ESD – Emergency Shut Down
Flange/Test Pressure 50/200
| Flange | Max. test pressure | ||
| mm | inch | bar | psi |
| DN 25 | 1″ | 600 | 8700 |
| DN 40 | 1.5″ | 600 | 8700 |
| DN 50 | 2″ | 600 | 8700 |
| DN 65 | 2.5″ | 600 | 8700 |
| DN 80 | 3″ | 600 | 8700 |
| DN 100 | 4″ | 440 | 6380 |
| DN 125 | 5″ | 300 | 4350 |
| DN 150 | 6″ | 220 | 3190 |
| DN 200 | 8″ | 125 | 1800 |
| DN 250 | 10″ | – | – |
| DN 300 | 12″ | – | – |
| DN 350 | 14″ | – | – |
| DN 400 | 16″ | – | – |
Flange/Test Pressure 50/400
| Flange | Max. test pressure | ||
| mm | inch | bar | psi |
| DN 25 | 1″ | 600 | 8700 |
| DN 40 | 1.5″ | 600 | 8700 |
| DN 50 | 2″ | 600 | 8700 |
| DN 65 | 2.5″ | 600 | 8700 |
| DN 80 | 3″ | 600 | 8700 |
| DN 100 | 4″ | 440 | 6380 |
| DN 125 | 5″ | 300 | 4350 |
| DN 150 | 6″ | 220 | 3190 |
| DN 200 | 8″ | 125 | 1800 |
| DN 250 | 10″ | 81 | 1170 |
| DN 300 | 12″ | 60 | 870 |
| DN 350 | 14″ | 42 | 600 |
| DN 400 | 16″ | 33 | 475 |
Dimension
