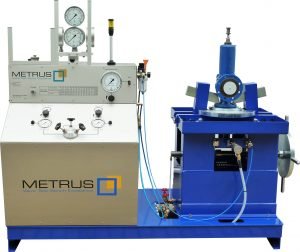

Safety valve test bench for safety valves. Model: SV 20/400

Giá bán: Liên hệ

Mã sản phẩm: SV 20/400

Thương hiệu: Metrus

Tình trạng: Còn hàng

Safety valve test bench for safety valves Basic features Clamping: Manual fast clapming system Clamping force: 20 to Clamping range: DN10-DN400 1/2″-16″ High pressure air/gas inlet Stainless steel control cabinet Anodized, acid proof front panel Stainless steel tubing PN600 Gauge quick connection METRUS precision needle valves Bubble counter (DIN/EN, ASME and API) Option: HP water testing up to 600 bar High pressure water up...
Tư vấnhotline0965746247

Safety valve test bench for safety valves

Basic features

  • Clamping: Manual fast clapming system
  • Clamping force: 20 to
  • Clamping range: DN10-DN400 1/2″-16″
  • High pressure air/gas inlet
  • Stainless steel control cabinet
  • Anodized, acid proof front panel
  • Stainless steel tubing PN600
  • Gauge quick connection
  • METRUS precision needle valves
  • Bubble counter (DIN/EN, ASME and API)

Option:

  • HP water testing up to 600 bar
  • High pressure water up to 1600 bar
  • Bladder accumulator for water testing
  • Air lock free filling
  • Internal HP air/gas booster
  • 300 bar air compressor
  • Separated test fluids
  • Back pressure testing
  • Vacuum testing
  • Thread adaptors
  • Gauge turret
  • CRS – Computer Registration System
  • Software Free CRS
  • Panel PC on swivel arm
  • Safety doors
  • Safety pressure limitation
  • ESD – Emergency Shut Down

Flange/Test Pressure

Flansch   Max. Prüfdruck
mm inch bar psi
DN 25 1″ 600 8700
DN 40 1.5″ 470 6800
DN 50 2″ 400 5800
DN 65 2.5″ 360 5200
DN 80 3″ 250 3600
DN 100 4″ 180 2600
DN 125 5″ 120 1700
DN 150 6″ 88 1275
DN 200 8″ 50 725
DN 250 10″ 28 400
DN 300 12″ 24 345
DN 350 14″ 16 230
DN 400 16″ 14 200

Dimension

Ventilprüfstand SV 20/400 Abmessungen



 Download data sheet
