Ixxat - CANcheck

Installation tester for CAN networks

CANcheck allows users to analyze CAN networks during commissioning, maintenance and helps searching faults. This battery-operated, hand-held device connects to the CAN network to be tested and operates using a clearly-structured menu.

• Cable test with network switched off and operational test with network switched on
• Wiring test: test of the resistances between all pins of the CAN-connector (assignment in accordance with CiA), providing assessment based on pre-defined threshold values
• Terminal resistance test: measurement of the resistance between CAN_H and CAN_L
• Cable length: measurement of cable length via pulse-time delay, cable impedance
• Measurement of the signal level: absolute and differential signal level listed according to identifier
• Baud rate detection: detection of baud rate of the tested CAN system
• Identifier scan: determination of all identifiers transmitted and display of reception frequency
• CANopen mode: Signal level and reception frequency listed according to node-ID
• Bus load: measurement of the current bus load of the CAN system
• Error frames: number of error frames per time unit
• User’s guide: test instructions before the test, OK or error message after the test, continuation after acknowledgement
• Multilingual: test instructions in German or English

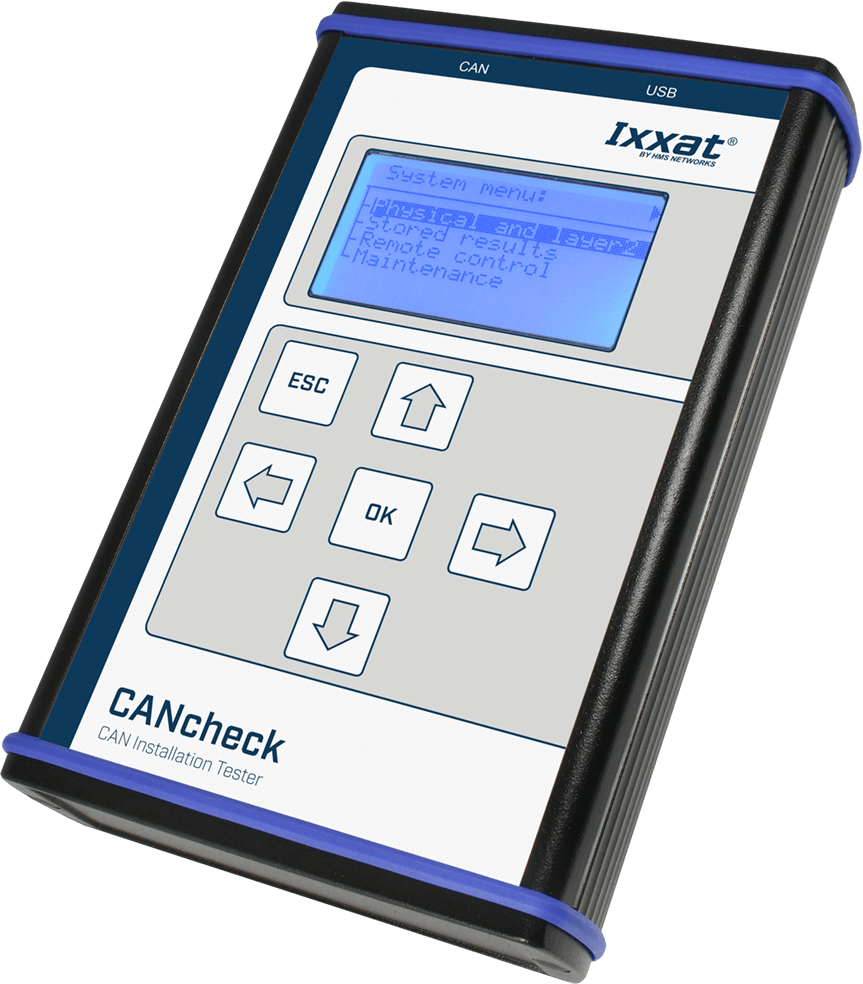

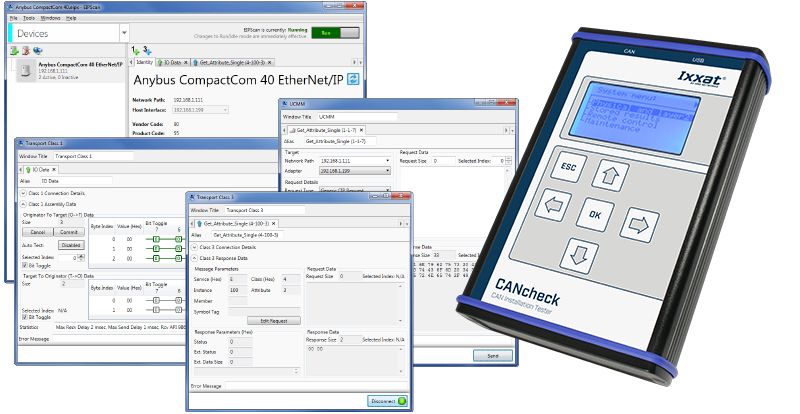

The CANcheck is operated by means of a simple menu control via cursor keys and LCD display. Test results can be output via the LCD display or a connected PC.

For display of the results on a PC, the CANcheck is connected to the PC via a USB port. Results are displayed on the PC via a terminal program. The logging function of the terminal program enables the test results to be either archived in a file or printed out.

• CANcheck installation tester
• CAN "Y" cable with Sub-D9 plug (2 m)
• 1-to-1 CAN/Trigger cable
• USB cable
• Manual
