AB7639-F Anybus X-gateway – Interbus FO Slave - Modbus TCP Server

Giá bán: Liên hệ

Mã sản phẩm: AB7639-F

Thương hiệu: Anybus - HMS Industrial Networks

Tình trạng: Còn hàng

ORDER CODE: AB7639

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- Anybus OPC server software available for download
- (Power supply not included)

Tư vấnhotline0965746247

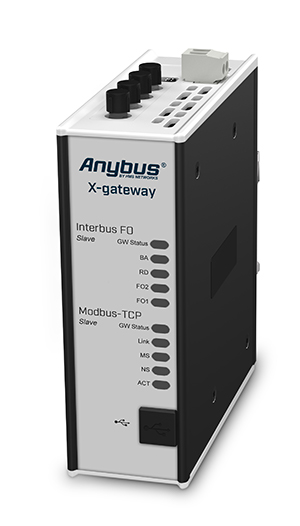

AB7639 - Anybus X-gateway – Interbus FO Slave - Modbus TCP Server

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between Interbus Fiber Optic and Modbus TCP networks.

FAST COPYING OF I/O DATA

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as an Slave/Server on both networks. The data transmission is completely transparent with a maximum data capacity of 512 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

x-gateway-ibssfo-mbtcps

    DatasheetFile download

    Features and benefits

    • Fast copying of cyclic I/O data between the two networks (10-15 ms)
    • Proven and tested with all PLC manufacturers
    • Supports up to a maximum of 512 bytes of Input and Output data in each direction
    • Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
    • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
    • Optional control status information added to I/O data for diagnostic purposes
    • Robust stand-alone housing for use in harsh industrial environments
    • Global free technical support and consultancy

    Interbus Fiber Optic Slave Interface

    Interbus Slave address settings can are automatically detected by the controlling PLC.

    • Complete Interbus functionality according to EN 50170
    • Fiber Optic features FSMA standard connectors conforming to IEC874-2 and DIN47258
    • Based on OPC chipset with support for optical diagnostics
    • Transmission Media: Plastic fibre, core 180um, clad 1000um: HCS (glass) fibre, core 200um, clad 230 um
    • Max. 20 bytes of process data (512 bytes with PCP) in each direction
    • PCP V.2.0. (0, 1, 2, or 4 words)
    • Interbus baudrate 500 kbit/s – 2 Mbit/s
    • Automatic slave address detection by controlling PLC master
    • 1x HFBR-2505C and 1x HFBR-1505C Fiber Optic network connectors

    Modbus TCP Slave interface

    Modbus TCP Slave settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

    • Conforms to Modbus TCP v1.0
    • Modbus TCP class 0, class 1 and partially class 2 slave functionality
    • 10/100Mbit operation in full or half-duplex
    • Integrated FTP server provides easy file management using standard FTP clients
    • Web server with dynamic data capability and Server Side Include (SSI) capability
    • Email client with dynamic data capability and Event-triggered email handling
    • Per-user security framework
    • Quality of Service (QoS) available
    • DNS Capability
    • TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)
    • Integrated switch allowing for a daisy-chain topology
    • 2x RJ-45 ports available simultaneously.

    TECHNICAL SPECIFICATIONS

    Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
    Weight 400g or 0,880 lbs
    Operating temperature -25 to +65 °C  or  -13 to +149 °F
    Storage temperature -40 to +85 °C  or  -40 to +185 °F
    Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
    Current consumption     max. 400mA (Typical 200mA)
    Enclosure material  Aluminium and plastic
    Installation position Vertical / Flat*
    Galvanic isolation YES, on both BUS/Ethernet side
    Mechanical rating IP20, NEMA rating 1
    Mounting DIN-rail (EN 50022 standard)
    I/O configuration via USB port with Anybus Configuration Manager software
    Certifications CE, CULUSRoHS

    Ordering Information

    x-gateway-ibssfo-mbtcps

    ORDER CODE: AB7639

    INCLUDED COMPONENTS:
    - Quick start documentation
    - USB configuration cable
    - Configuration software available for download
    - Anybus OPC server software available for download
    - (Power supply not included)
