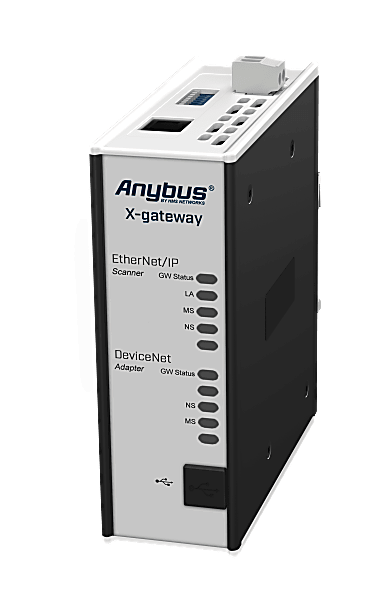

The Anybus X-gateway EtherNet/IP Master to DeviceNet Adapter enables you to connect any EtherNet/IP device or equipment to DeviceNet control systems. It can be used when there is no existing EtherNet/IP control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.

Features and benefits

• Reach new markets

  Target new markets using different protocols without needing to change your hardware or software, thereby decreasing your time to market and development costs.

• No PLC card slot needed

  The gateway does not use a card slot in the control system, leaving room for other equipment.

• Slim hardware design

  The gateway is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.

• 3-year warranty

  The gateway is designed to be robust and long-lasting. A 3-year guarantee is provided.

• Easy configuration – No programming required!

  Quickly establish the connection between the two networks with the included Anybus Configuration Manager software. No programming skills are required for the setup process.

• Increased PLC performance

  The gateway allows for fast transfer of cyclic I/O data between the two networks, offloading your PLC from working with additional calculations.

• Trusted partner

  Anybus has a long history of working with all the major network organizations to ensure compliant, high-performing, and compatible products.

• Life cycle management

  HMS maintains every part of the gateway, including network updates, throughout the product’s lifecycle.

DeviceNet features

DeviceNet Output Data Size: 512 bytes

DeviceNet Mode: Adapter / Slave

DeviceNet Input Data Size: 512 bytes

DeviceNet Baud Rate: 125-500 kbit/s

DeviceNet Configuration File: EDS available

EtherNet/IP Features

EtherNet/IP Mode: Scanner / Master

EtherNet/IP Bandwidth: 10/100MBit

EtherNet/IP Input Data Size: 509 bytes

EtherNet/IP Output Data Size: 505 bytes

EtherNet/IP No. Of Adapters: 64
