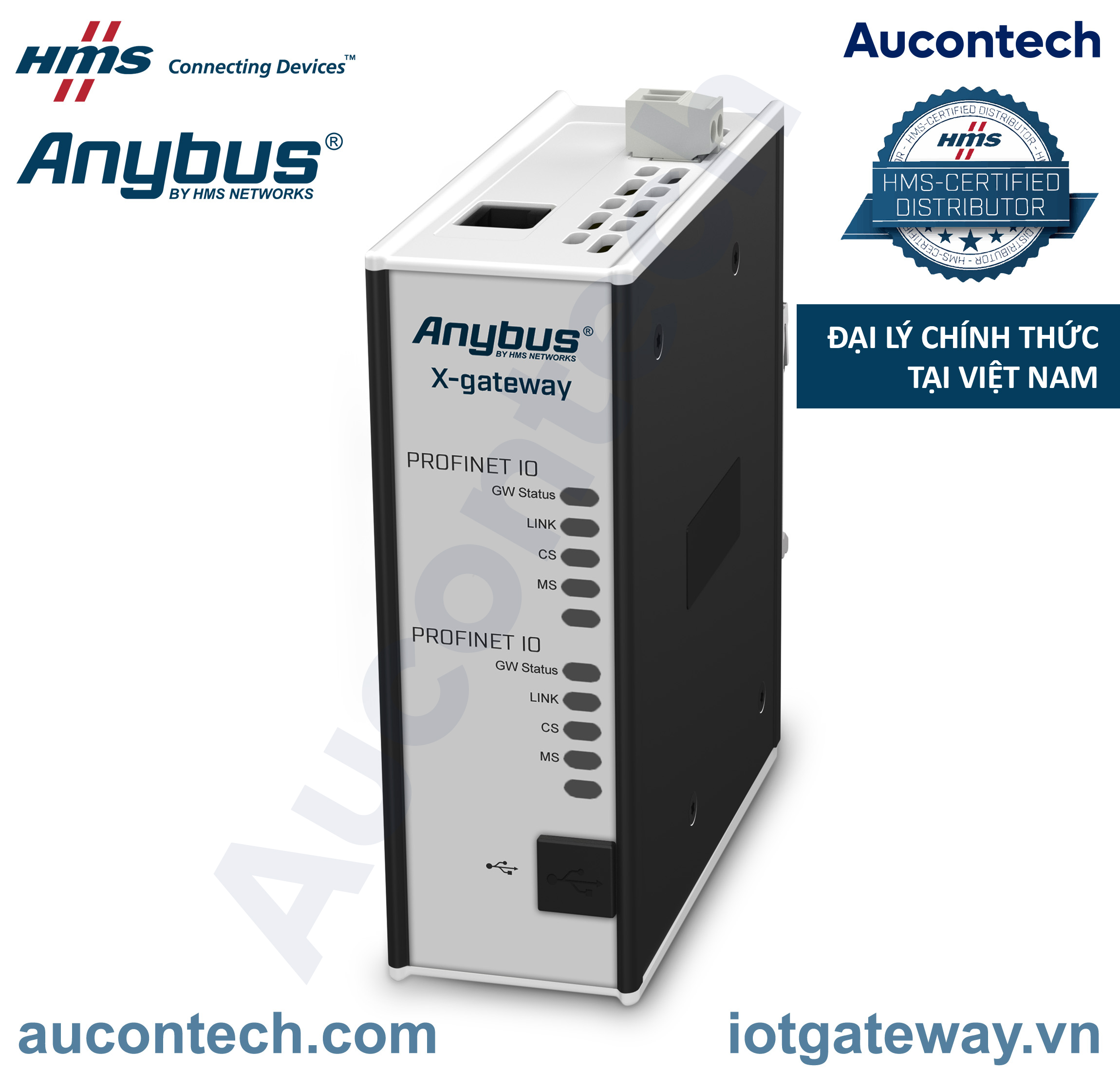

The Anybus X-gateway PROFINET-IO Device to PROFINET-IO Device enables you to connect any PROFINET-IO system to any PROFINET-IO control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.

PROFINET Features

• PROFINET Mode: Slave

• Supported Functionality:

  • Soft Real-Time (RT)

  • Max 64 slots / 1 sub-slot

  • DCP support

  • Acyclic Data exchange

• Bandwidth: 10/100Mbit full/half duplex down to 1ms

• Input Data Size: 512 bytes

• Output Data Size: 512 bytes

• Conformance Class: Class B

• Configuration File: GSDML available

• Reach new markets

  Target new markets using different protocols without needing to change your hardware or software, thereby decreasing your time to market and development costs.

• No PLC card slot needed

  The gateway does not use a card slot in the control system, leaving room for other equipment.

• Slim hardware design

  The gateway is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.

• 3-year warranty

  The gateway is designed to be robust and long-lasting. A 3-year guarantee is provided

• Easy configuration – No programming required!

  Quickly establish the connection between the two networks with the included Anybus Configuration Manager software. No programming skills are required for the setup process.

• Increased PLC performance

  The gateway allows for fast transfer of cyclic I/O data between the two networks, offloading your PLC from working with additional calculations.

• Trusted partner

  Anybus has a long history of working with all the major network organizations to ensure compliant, high-performing, and compatible products.

• Life cycle management

  HMS maintains every part of the gateway, including network updates, throughout the product’s lifecycle.

Technical specifications

Identification & Status

• Brand: Anybus

• Country of Origin: Sweden

• Dual Usage: No

• Export Control Classification Number (ECCN): 5A991.b.1

• Item Number: AB7651-F

• Successor: ABC4022-A, ABC4090-A

• HS Code: 8517620000

Certifications & Standards

• CE: Yes

• UL: Yes

  • UL Information: E214107: Ord.Loc UL508, CSA C22.2 NO. 142

• EMC: Yes

• FCC: No

• Environment:

  • EN 61000-6-4

  • EN 55016-2-3 Class A

  • EN 55022 Class A

  • EN 61000-6-2

  • EN 61000-4-2

  • EN 61000-4-3

  • EN 61000-4-4

  • EN 61000-4-5

  • EN 61000-4-6

• Waste Certification (WEEE): Yes

  • WEEE Category: IT and telecommunications equipment

• Protection Class IP: IP20

• Recycle / Disposal: Yes

• RoHS Compliant: Yes
