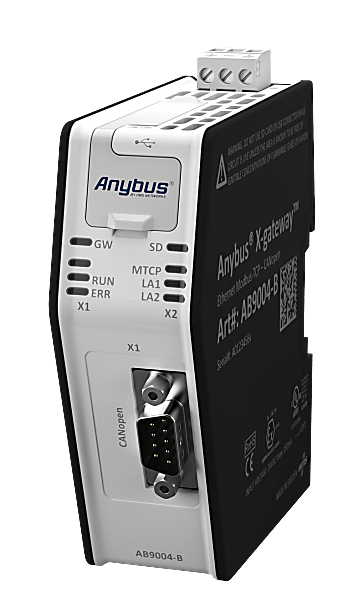

Anybus X-gateway - Modbus TCP Client - CANopen Slave

Item number AB9004-B

The Anybus X-gateway Modbus TCP Client to CANopen Slave enables you to connect any Modbus TCP device or equipment to CANopen control systems. It can be used when there is no existing Modbus TCP control system. Anybus gateways ensure reliable, secure, high-speed data transfers between different industrial networks while being easy to use.

Features and benefits

• Reach new markets

  Target new markets using different protocols without needing to change your hardware or software, thereby decreasing your time to market and development costs.

• No PLC card slot needed

  The gateway does not use a card slot in the control system, leaving room for other equipment.

• Slim hardware design

  The gateway is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.

• 3-year warranty

  The gateway is designed to be robust and long-lasting. A 3-year guarantee is provided.

• Easy configuration – No programming required!

  Quickly establish the connection between the two networks with the included Anybus Configuration Manager software. No programming skills are required for the setup process.

• Increased PLC performance

  The gateway allows for fast transfer of cyclic I/O data between the two networks, offloading your PLC from working with additional calculations.

• Powerful

  Up to 512 bytes of Input and Output data in each direction.

• Trusted partner

  Anybus has a long history of working with all the major network organizations to ensure compliant, high-performing, and compatible products.

• Life cycle management

  HMS maintains every part of the gateway, including network updates, throughout the product’s lifecycle.

CANopen Features

CANopen Mode: Slave mode

CANopen Baud Rate: 10 kbit/s - 1000 kbit/s

CANopen Supported Functionality: PDO, SDO; DS301 v4.02; LSS; Clear/Freeze; Automatic baud detection

CANopen Input Data Size: 256 bytes

CANopen Output Data Size: 256 bytes

CANopen Configuration File: EDS available
