Anybus X-gateway - DeviceNet Adapter Slave - EtherNet/IP Adapter SLave - AB7833 Anybus Vienam

Giá bán: Liên hệ

Mã sản phẩm: AB7833

Thương hiệu: Anybus - HMS Industrial Networks

Tình trạng: Còn hàng

Ordering information

Order Code: AB7833

Included components:

- Gateway
- Quick start documentation
- USB configuration cable

- Power supply not included

- Configuration and Anybus OPC server software is available for download.

Tư vấnhotline0965746247

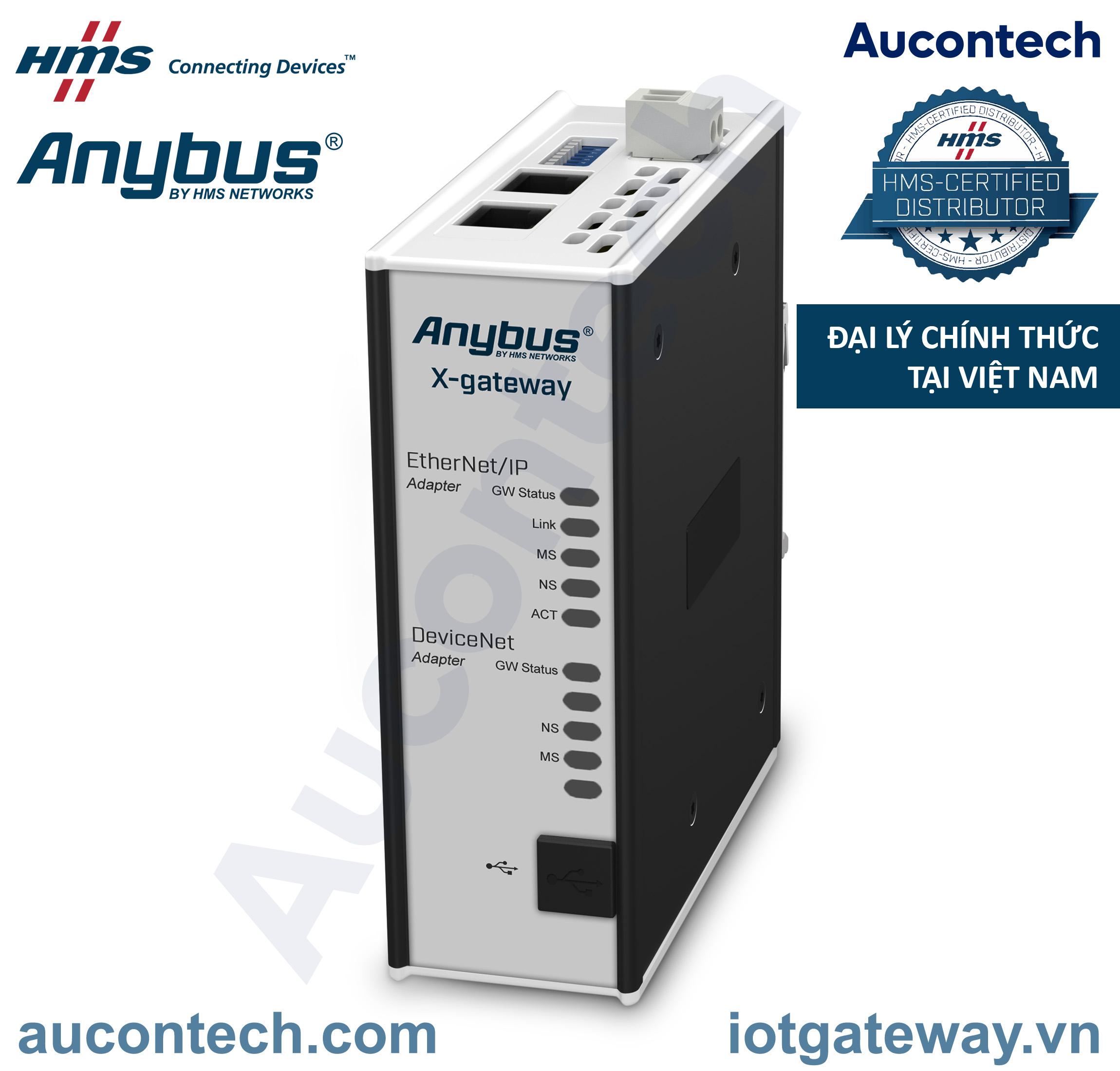

Anybus X-gateway – DeviceNet Adapter - EtherNet/IP Adapter

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between DeviceNet and EtherNet/IP networks.

FAST COPYING OF I/O DATA

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as an Adapter on the DeviceNet network and as an Adapter on the EtherNet/IP network. The data transmission between the two networks is completely transparent with a maximum data capacity of 512 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

Features and benefits

  • Fast copying of cyclic I/O data between the two networks (10-15 ms)
  • Proven and tested with all PLC manufacturers
  • Supports up to a maximum of 512 bytes of Input and Output data in each direction
  • Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
  • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
  • Optional control status information added to I/O data for diagnostic purposes
  • Robust stand-alone housing for use in harsh industrial environments
  • Global free technical support and consultancy

DeviceNet Adapter features

DeviceNet Adapter settings can be made either via on-board switches, or by importing the provided .EDS file into engineering tool of the controlling PLC.

  • DeviceNet CONFORMANCE TESTED™ by ODVA
  • DeviceNetNet Specification version: Communications Adapter profile 12
  • Max. 512 bytes of Input and 512 bytes of Output data
  • DeviceNet baudrate 125, 250, 500 kbit/s
  • Supports I/O Slave messaging: Bit strobe, Polling, Cyclic, COS and Explicit Messaging
  • MacID node address setting via DIP switch
  • DeviceNet network configuration via .EDS file
  • 1x 5-pin, 5.08 Phoenix plug connector

EtherNet/IP Adapter/Slave interface

EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

    • EtherNet/IP CONFORMANCE TESTED™ by ODVA
    • EtherNet/IP Level 2 I/O Server CIP
    • 10/100Mbit operation in full or half-duplex
    • Max. 509 bytes Input and 505 bytes Output data
    • Device Level Ring (DLR) functionality available (announce-based ring participant)
    • Integrated FTP server provides easy file management using standard FTP clients.
    • Web server with dynamic data capability and Server Side Include (SSI) capability
    • Email client with dynamic data capability and Event-triggered email handling
    • Per-user security framework
    • Quality of Service (QoS) available
    • DNS Capability
    • TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)
    • Integrated switch allowing for a daisy-chain topology
    • 2x RJ-45 EtherNet/IP ports available simultaneously

    TECHNICAL SPECIFICATIONS

    Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00"
    Weight 400g or 0,880 lbs
    Operating temperature -25 to +65 °C  or  -13 to +149 °F
    Storage temperature -40 to +85 °C  or  -40 to +185 °F
    Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
    Current consumption     max. 400mA (Typical 200mA)
    Enclosure material  Aluminium and plastic
    Installation position Vertical / Flat*
    Galvanic isolation YES, on both BUS/Ethernet side
    Mechanical rating IP20, NEMA rating 1
    Mounting DIN-rail (EN 50022 standard)
    I/O configuration via USB port with Anybus Configuration Manager software
    Certifications CE, CULUSRoHS
