Anybus ComBricks 1 Channel SCOPE Repeater

The Anybus ComBricks is the first PROFIBUS based automation system that unites repeaters and permanent monitoring in a web browser. With an evolving industry using more mixed architecture networks, users are able to integrate ComBricks into their PROFINET network via Osiris, allowing to monitor everything from one single cross-platform.

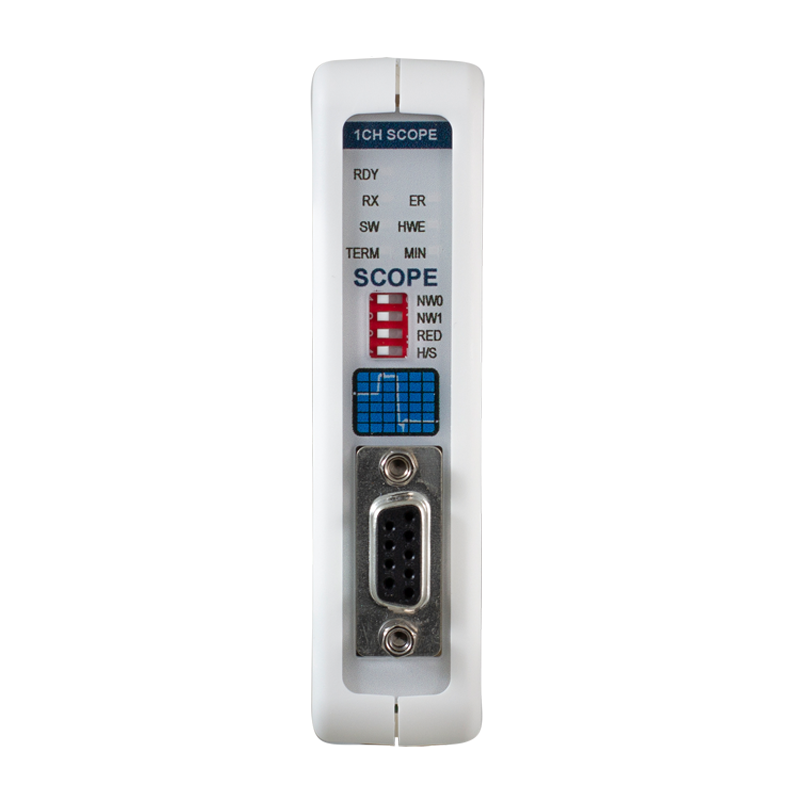

The Anybus SCOPE Repeater is a 1 Channel RS 485 PROFIBUS diagnostic repeater module with an integrated quality-oscilloscope for 12 Mbps with diagnostic LEDs and redundancy feature. Bus connection is utilized by screw terminals and additional DB9 connector.

The repeater channel and the integrated oscilloscope are directly connected with the ProfiTrace OE core in the 1B/1C Head Station. Scope images and busmonitor data are directly available in the web server.

The advanced 12 Mbps core of the repeater module can be cascaded unlimitedly and has increased RS 485 strength. The data traffic is constantly monitored for glitches which are digitally filtered out. It has on-board switchable termination and able to drive 31 devices.

Distinctive features

• Integrated quality-oscilloscope

• Diagnostic LEDs

• Bus speed up to 12 Mbps,

• 31 devices per channel

• Screw terminals bus connection,

• DB9 connector for monitoring

• Redundancy feature included

• Bus termination integrated

Your benefits

• It is the easiest to use PROFIBUS oscilloscope available

• Works automatically, even images saves to SD card

• Oscilloscope data is never mistaken with the wrong segment

• No probe wiring

• No spur lines

• No limit in cascading

• Remote maintenance station with ProfiTrace OE

• Modular repeater backbone with hot swap

• Transparent data hub (repeaters, fiber optic, RS-485-IS, DP slave, PROFINET, etc.)
