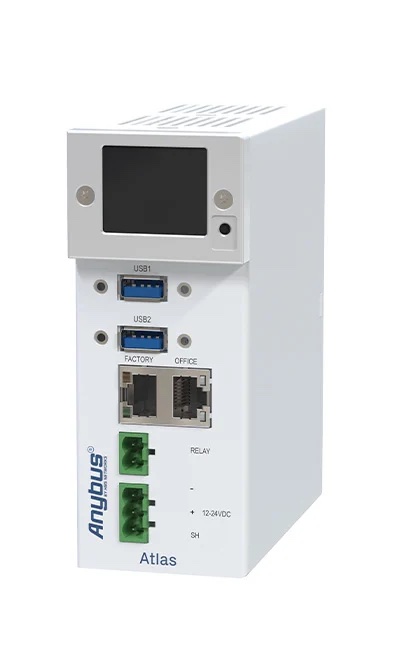

Anybus Atlas2 Plus

The Anybus Atlas2 Plus is a permanent monitoring tool that provides diagnostics information of your industrial network 24/7, displaying it within our intuitive software Osiris. This allows field technicians to ensure uptime, a healthy network and troubleshoot their network before costly downtime can occur.

Whether you’re using PROFINET, EtherNet/IP and EtherCAT, you’ll discover that the Atlas2 Plus gives you a much more connected and predictive approach to machine health monitoring and maintenance.

This unique hardware reads industrial ethernet traffic and is single mounted on the DIN-rail in a cabinet connected to the office and factory port.

Distinctive features

• Remote 24/7 monitoring for PROFINET, EtherNet/IP, EtherCAT and PROFIBUS
• Multiple versions of active and passive or active-only monitoring
• Self-learning machine with predictive fault-finding capabilities
• Dynamic graphical and hierarchical displays of a network’s topology
• Scoring mechanism and traffic light alert system for simple insight
• OLED display on the device itself for a quick overview

All-in-one solution

• OPC-UA and MQTT compatible to export diagnostic data to SCADA systems

Your benefits

• Helps your company operate more efficiently by providing collective diagnostic oversight of installations with multiple protocols.
• Results in faster troubleshooting and reduced downtime by processes data four times faster than its predecessor Atlas.
• Improves your productivity by analysing data in real-time and providing immediate network overviews, no matter where in the world you are.
• Increases the accuracy of the diagnostic process and maintains your network’s up times by learning automatically from experience.
• Cuts the cost of maintenance by scoring your networks’ health and suggesting likely causes for common and unique faults.

• Provides data traffic insight of your industrial network
• Provides an intuitive interface to access data and analyze

Application example:

•  Any industrial network with single or mixed network architectures.

Figure 1:  An Industrial Ethernet network including an active and passive monitoring tool for 24/7 diagnostics access

Technical specifications
