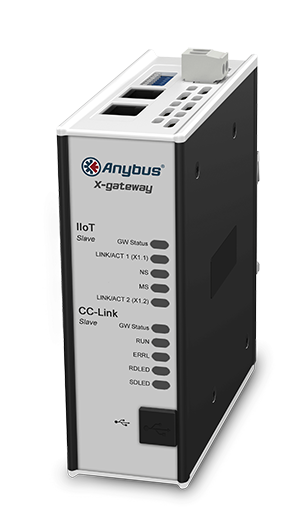

Anybus X-gateway IIoT – CC-Link Slave - OPC UA-MQTT

The Anybus X-gateway IIoT allows you to seamlessly inter-connect PLC control systems and their connected devices to the IIoT networks MQTT and OPC UA.

SAFE AND ISOLATED DATA MONITORING
The X-gateway IIoT’s primary function is to allow the fast streaming of an industrial network into OPC UA and MQTT. This offloads your PLC from working with additional services while providing extra security by isolated the high-risk connections away from sensitive areas.  In principle, the PLC gets its own firewall.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway.

Features and benefits

• Supports OPC UA micro-embedded profile
• Supports Discovery Services
• User name and password authentication
• Supports DataChange Subscription
• MQTT client acting as publisher
• Proven and tested with PLC’s from all leading manufacturers
• Possibility to build web pages to display and control a factory floor

OPC UA

• Support for micro-embedded profile
• Data direction from server to client
• Supports Discovery Services
• Timestamp supported via discovery server
• User name and password authentication
• Supports DataChange Subscription
• Maximum 80 data point tags
• Dual port cut-through switch
• Dual RJ-45 ports available simultaneously

MQTT

• MQTT client acting as publisher
• MQTT version 3.1.1 supported
• Json data encoding supported
• QoS 0-2 supported
• User name and password authentication
• Maximum 256 data point tags
• Dual port cut-through switch
• Dual RJ-45 ports available simultaneously

CC-Link Slave interface

CC-Link Slave settings can be made either via on-board switches, or by importing the provided .CSP file into engineering tool of the controlling PLC.

• Complete CC-Link slave Version 1 and 2 functionality
• CC-Link Conformance BAP-05027-B specification
• Transparent CC-Link communication (Standard Mode)
• PLC Profile compliant communication (PLC profile mode)
• Max. 896 bits/128 words (368 bytes) of I/O data in each direction
• Supports CC-Link baudrates 156 kbit/s – 10 Mbit/s
• Up to 4 occupied stations
• Up to 8 extension cycles (version 2 only)
• CC-Link configuration via on-board switches or via .CSP file
• 1x 5-pin, 5.08 Phoenix plug network connector

Technical specifications

Ordering Information

ORDER CODE: AB7562

INCLUDED COMPONENTS:
- Quick start documentation
- USB configuration cable
- Configuration software available for download
- (Power supply not included)


GUARANTEE:  3 years
